Installing Air Vent At Door

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push together the electrical plug connection.

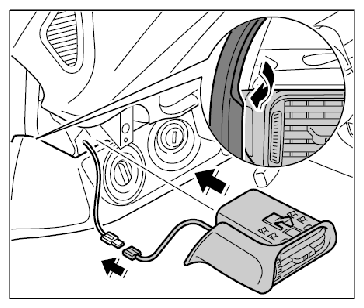

    Fig 1: Installing Electrical Connector
    G09830212Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Observe the line routing and insert the air vent into the dashboard until it clicks into place.
  3. Raise the door seal and lay it over the air vent.
  4. Check function of air vent illumination and air vent adjustment.
