Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine.
→ 100119 REMOVING AND INSTALLING ENGINE .
Remove transmission.
→ 343527 REMOVING AND MOUNTING TRANSMISSION .
Move engine from Master Gear Unit Elevating Platform WE 1206 to the engine assembly support.

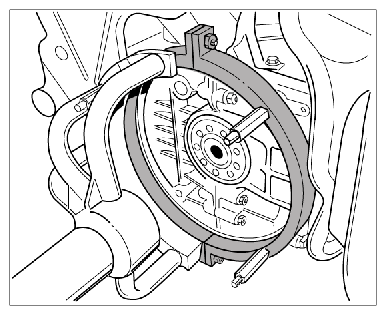

1. 3.1. Use Engine Support 9667 together with Holder P201 .

  Fig 1: Identifying Engine Support And Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Completely remove intake-air distributor.
→ 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR .
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.
WARNING:
Caustic fluids
- Danger of chemical burns
→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

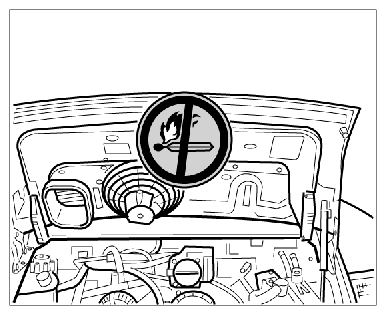

When working on the fuel system, place a warning sign in a clearly visible position on the vehicle.

Fig 2: Caution: Danger Of Fire Or Explosion
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

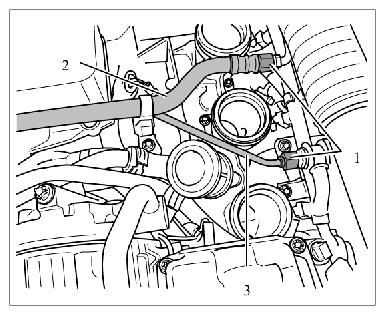

Remove fuel connection lines -2 and 3- .
1. 6.1. Loosen union nuts -1- on the fuel lines at the fuel collection pipes.

  Fig 3: Identifying Fuel Collection Pipe Fuel Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

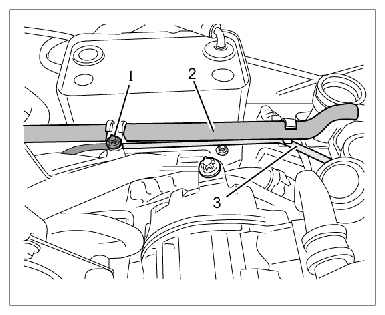

2. 6.2. Loosen rubber clamp -1- on the fuel connection line -2- at the bracket.

  Fig 4: Identifying Fuel Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

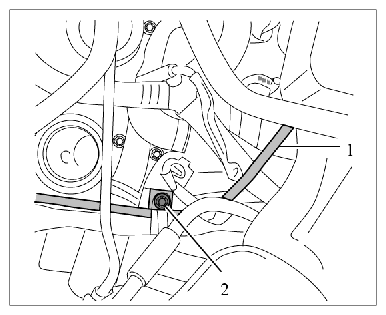

3. 6.3. Loosen holder -2- for fuel line -1- on side 1-3.

  Fig 5: Identifying Fuel Line Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen oil tank.
→ 175219 REMOVING AND INSTALLING OIL TANK .
