Installing Oil/Water Heat Exchanger

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove stoppers.
Clean sealing faces and replace sealing rings (2 ea.).
Install oil/water heat exchanger.
1. 3.1. Fit oil/water heat exchanger -1- on bracket for oil/water heat exchanger.
2. 3.2. Fit and tighten six internal Torx screws (T30) M6 x 20 -2- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

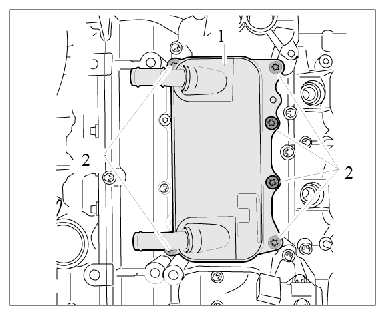

  Fig 1: Identifying Oil/Water Heat Exchanger Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- Always perform a leak test in the high-pressure area after opening the fuel system.
- This is particularly important if components are disassembled and replaced.
- The threaded connections of the fuel lines must be coated with OKS 1710 lubricant (Part No. 000.043.303.27) before being screwed back on again.
- Always allow a drying time of 60 minutes for the lubricant!
- Blow residual fuel out of the lines and high-pressure pump (into a fuel-resistant container or cloth) using compressed air before installation.
- The tightening specifications must be strictly observed.
Install high-pressure connecting line.
Observe tightening specifications:

→ 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE WITH FUEL INJECTORS - TURBO - section on "Installing"
1. 4.1. Position the high-pressure connecting line -1- between the fuel collection pipes.
2. 4.2. Fit and tighten union nuts -4- .
  → Tightening torque: 20 Nm (15 ft. lb.)
3. 4.3. Secure holder for the high-pressure connecting line by screwing in and tightening two external Torx screws (E10, M6 x 16) -2, 3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

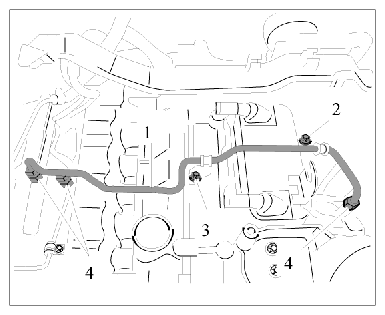

  Fig 2: Identifying High-Pressure Connecting Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit hydraulic return line.
1. 5.1. Insert hydraulic return line -3- into the holder on the oil/water heat exchanger.

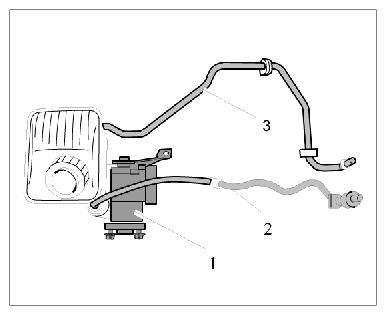

  Fig 3: Identifying Hydraulic Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Connect hydraulic return line to the reservoir for the hydraulic pump -arrow- .

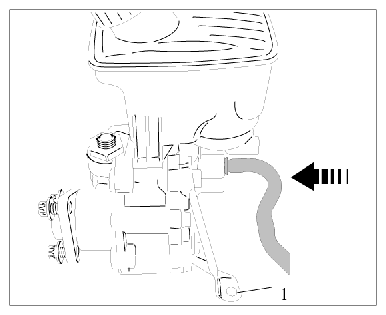

  Fig 4: Connecting Hydraulic Pump Return Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
Fit two coolant hoses -1- at the oil/water heat exchanger.
1. 6.1. Secure four spring band clamps.

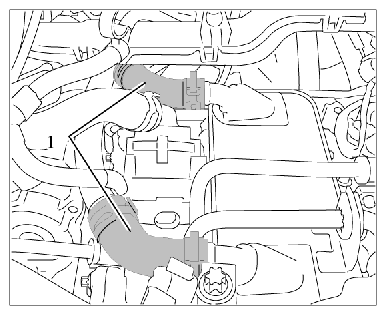

Fig 5: Identifying Oil/Water Heat Exchanger Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install secondary-air line -1- .
1. 7.1. Clip in line at the secondary-air valves and connect hose to the secondary-air pump.

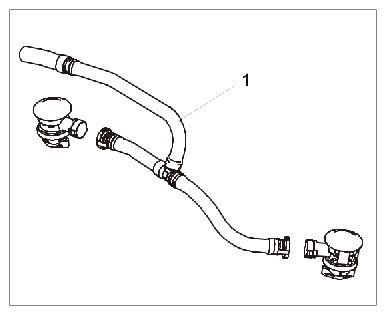

  Fig 6: Identifying Secondary-Air Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route and clip in positive crankcase ventilation line -1- (-2- ).

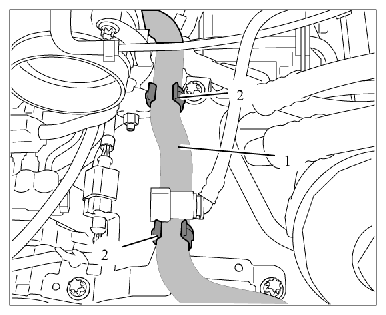

Fig 7: Identifying Positive Crankcase Ventilation Line Clip Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
