Installing Cover For Wing Flange

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The Velcro fasteners must be removed and replaced when replacing the wing and cover for wing flange.

Check Velcro fasteners on wing and cover for wing flange and replace if necessary. See: ADDITIONAL ASSEMBLY INSTRUCTIONS FOR REPLACING VELCRO FASTENERS
Insert cover for wing flange -2- sideways into the trim panel for the lock support -1- (-arrows A- ).

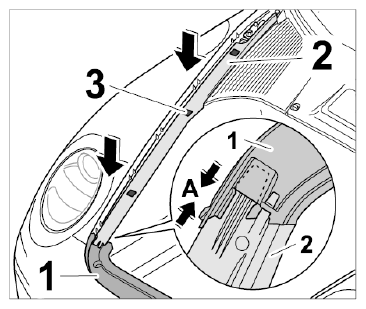

Fig 1: Installing Cover For Wing Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide cover for wing flange -2- with the soft lip under the luggage compartment seal and press on Velcro fasteners -3- .
Lock cover for wing flange into place in plenum panel.

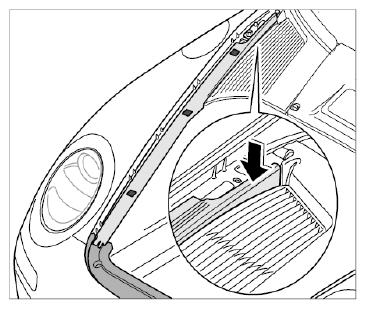

Fig 2: Locking Cover For Wing Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert locking lug for trim panel for lock support -1- into the wing at the side -2- .

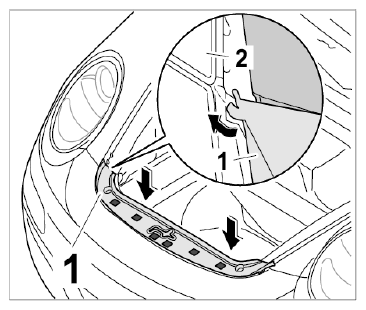

Fig 3: Securing Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close front lid.
