Additional Assembly Instructions For Replacing Velcro Fasteners

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove protective paper on the underside, push locking lug into the cover for lock support and press cover down onto the wing flange.

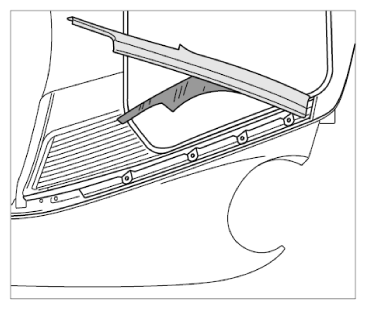

Fig 1: Pulling Off Protective Film
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press Velcro fasteners on at the positions indicated.

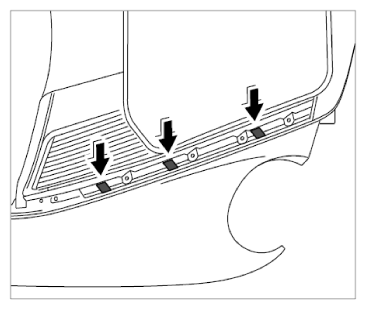

Fig 2: Pressing On Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift off cover and press Velcro fasteners securely onto the wing flange again using a suitable tool.

Fig 3: Securing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
