Removing and installing the magnetic coupling: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Use a standard strap wrench to securely hold the pressure plate, and undo the fastening screw.

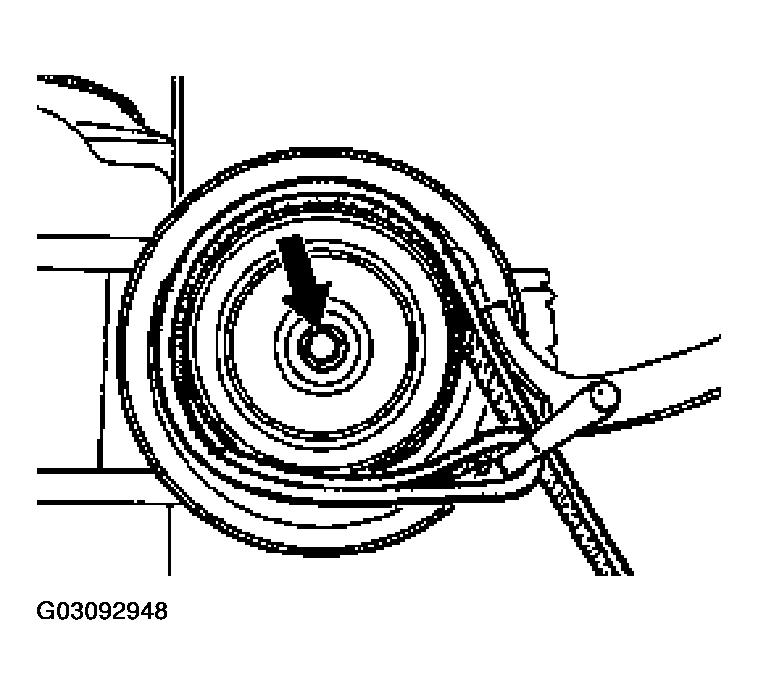

Fig 1: Removing Magnetic Coupling Fastening Screw By Using Standard Strap Wrench
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Screw a screw M8 into the thread of the pressure plate until the pressure plate can be removed manually. Remove the spacer washers.
Use standard Seeger circlip ring pliers to remove the Seeger circlip ring. Manually remove the belt pulley.
Unscrew the cable of the magnetic coil from the compressor housing. Remove the Seeger circlip ring. Remove the magnetic coil from the compressor housing.
