Removing and installing the magnetic coupling: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place the magnetic coil on the compressor housing. The locking pin must engage in the locking hole.

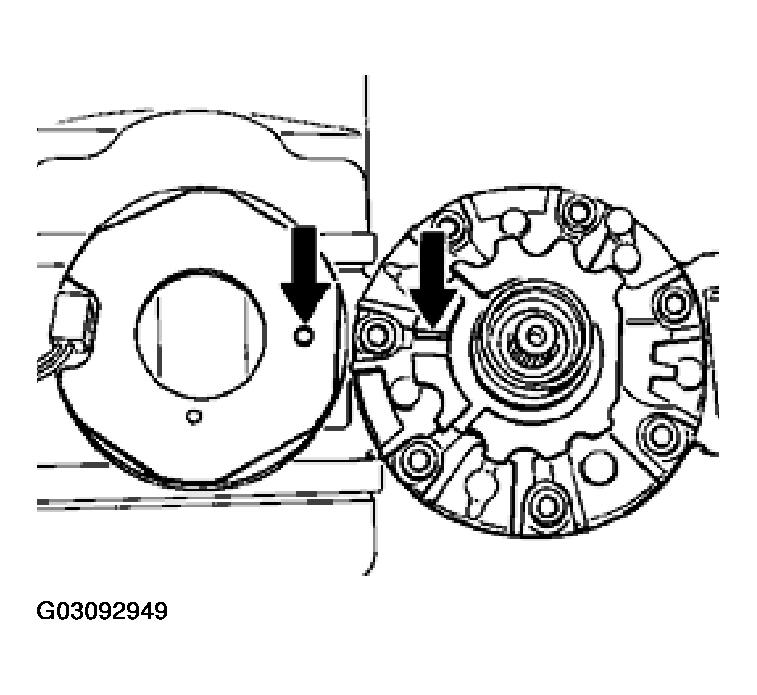

Fig 1: Identifying Magnetic Coil Locking Pin And Locking Hole
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the Seeger circlip ring. The slanted surface (arrow) of the Seeger circlip ring faces upwards (to the fastening screw).

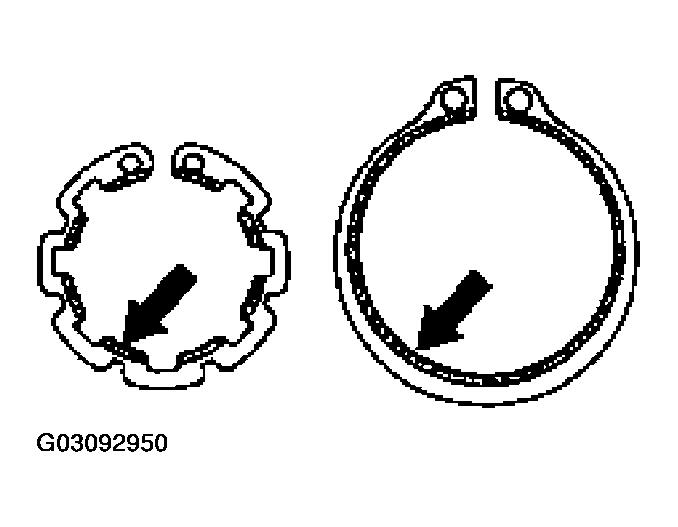

Fig 2: Installing Seeger Circlip Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the pressure plate fastening screw. Tightening torque: 14 Nm (10 ftlb)
