Check the air gap of the magnet coupling

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the air gap between the pressure plate and belt pulley with a depth gauge.

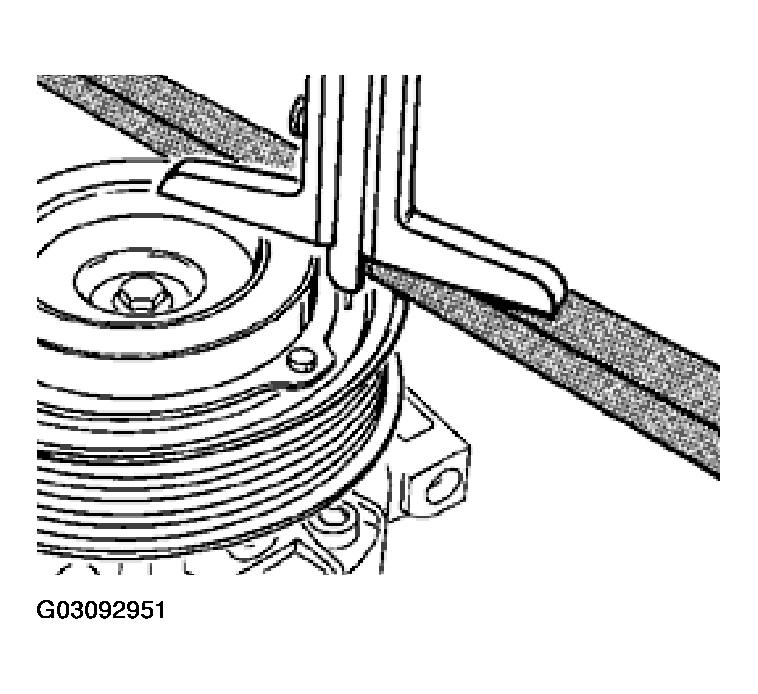

    Fig 1: Checking Magnet Coupling Air Gap Between Pressure Plate And Belt Pulley
    G03092951Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Place a rule on the outer edge of the belt pulley. Use a depth gauge to measure up to the pressure plate. Apply battery voltage to the magnetic coupling and measure the distance (air gap) to the attracted pressure plate. Always measure at least three points on the pressure plate in order to obtain a mean value. Distance: 0.5 mm +/- 0.15 mm
  3. If the air gap is not in the tolerance range, it must be adjusted with the aid of the spacer washers.
