Removing and installing the fluid tank: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system and fluid tank.
  2. Remove the refrigerant by suction using the service unit.
  3. Undo the hose clamp on the fluid tank. Undo both hexagon-head bolts on the fluid tank and remove the fluid tank upwards. Immediately close lines with plugs so that they are air-tight.

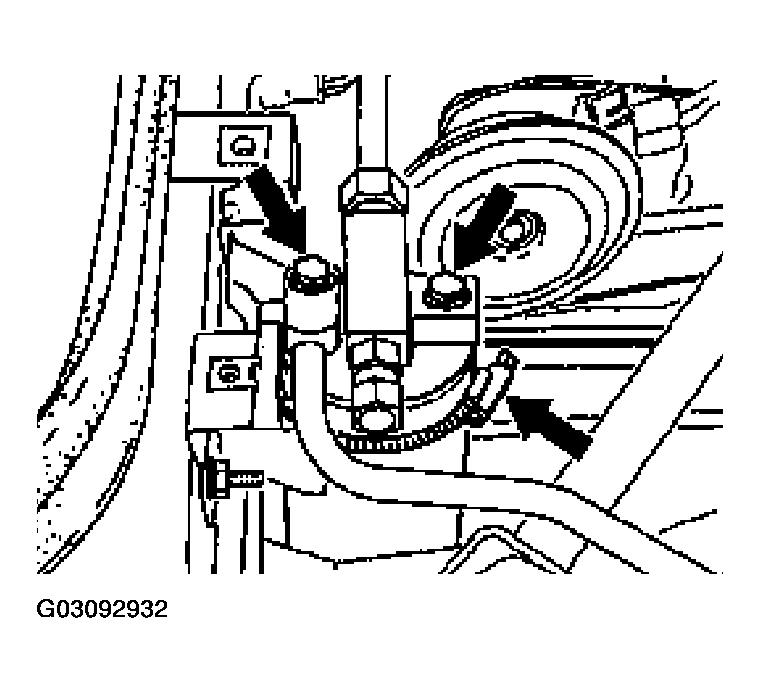

    Fig 1: Undoing Hose Clamp & Hexagon-Head Bolts On The Fluid Tank
    G03092932Courtesy of PORSCHE OF NORTH AMERICA, INC.
