Removing and installing the expansion valve: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system.
  2. Remove the refrigerant by suction using the service unit.
  3. Detach the air-conditioning lines at the expansion valve. Immediately close connections and lines with plugs so that they are air-tight.
  4. Undo the expansion valve and remove it. Immediately close the lines to the evaporator with plugs so that they are air-tight.

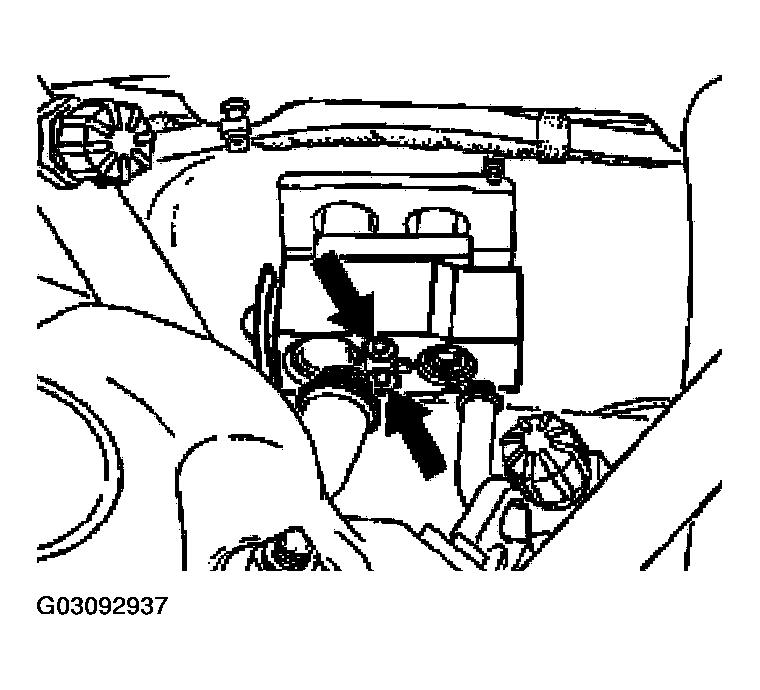

    Fig 1: Installing Plugs In Expansion Valve Lines
    G03092937Courtesy of PORSCHE OF NORTH AMERICA, INC.
