Removing and installing the condenser: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover above the heating/air-conditioning system.
  2. Remove the refrigerant by suction using the service unit.
  3. Completely remove the front spoiler. Remove the air guide to the condenser and pull off the electrical plug connection on the temperature sensor.
  4. Undo the refrigerant line on the condenser. Immediately close connections and lines with plugs so that they are air-tight.
  5. Undo the fastening screws (2 screws) from the condenser and pull the condenser to the side out of the holder.

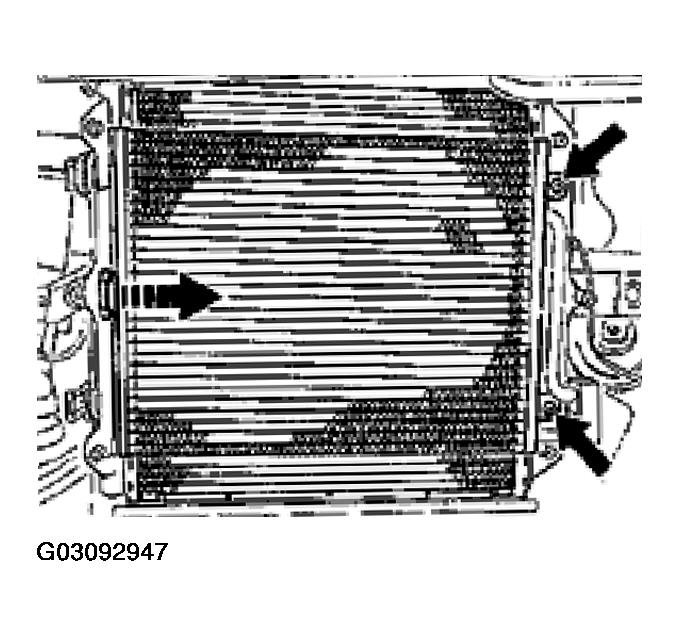

    Fig 1: Removing Fastening Screws From Condenser
    G03092947Courtesy of PORSCHE OF NORTH AMERICA, INC.
