Removing and installing the compressor: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cover above the heating/air-conditioning system.
- Remove the refrigerant by suction using the service unit.
- Disconnect the battery and cover the terminal or battery. Remove the complete air filter system.
- Relieve the drive belt on the tensioning pulley and remove the belt.
- Undo the B+ connection (2 nuts M6) on the engine and put it aside.

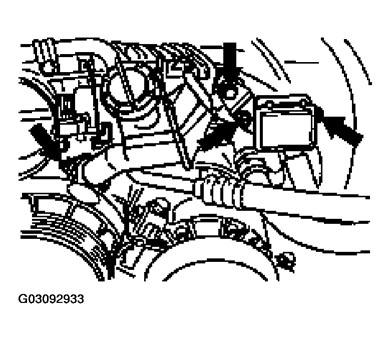

- Remove the fluid of the power steering in the supply tank until below the connection. Remove the servo-tank (bayonet lock). Observe the marking (arrow) during installation. Seal off the connection against dirt.

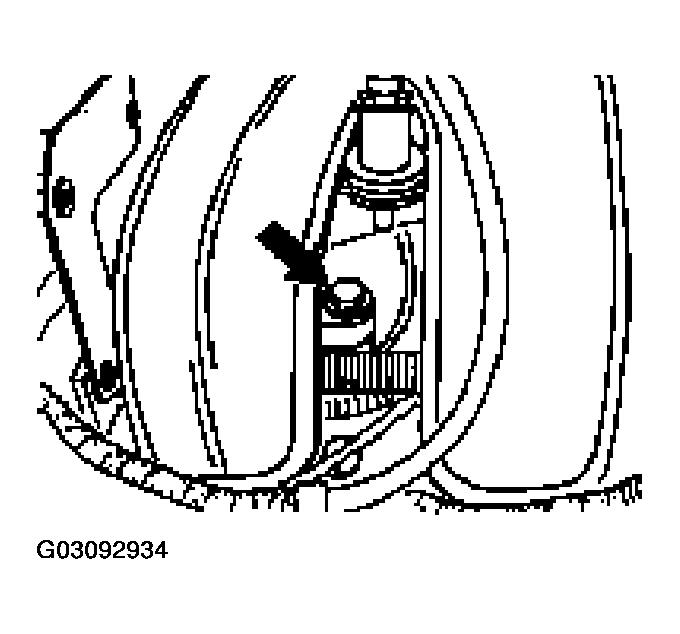

- Undo compressor fastening screw between the intake pipes of cylinders 4 and 5.
- Undo the front compressor fastening screws (2 each) and carefully pull the compressor out to the front. The rear fastening screw must be pulled out up to the refrigerant line.NOTE: There is a spacer sleeve between the compressor and engine housing which remains on the engine housing. The screw must be pulled out to over the sleeve in order to remove the compressor.

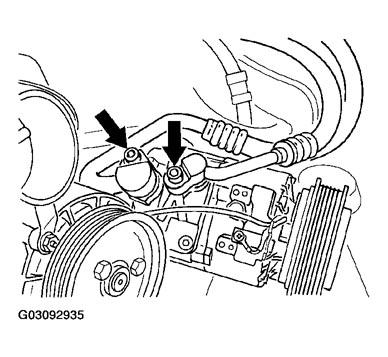

- Undo the refrigerant lines at the compressor. Immediately close connections and lines with plugs so that they are air-tight.
- Disconnect electrical plug connection and carefully remove the compressor.
