Removing and installing outside temperature sensor: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove footwell bulkhead and right air guide. Remove drive motor for fresh-air/recirculation valve.
  2. Pull off electrical plug connection on the outside temperature sensor. Turn temperature sensor by 90° and pull it out.

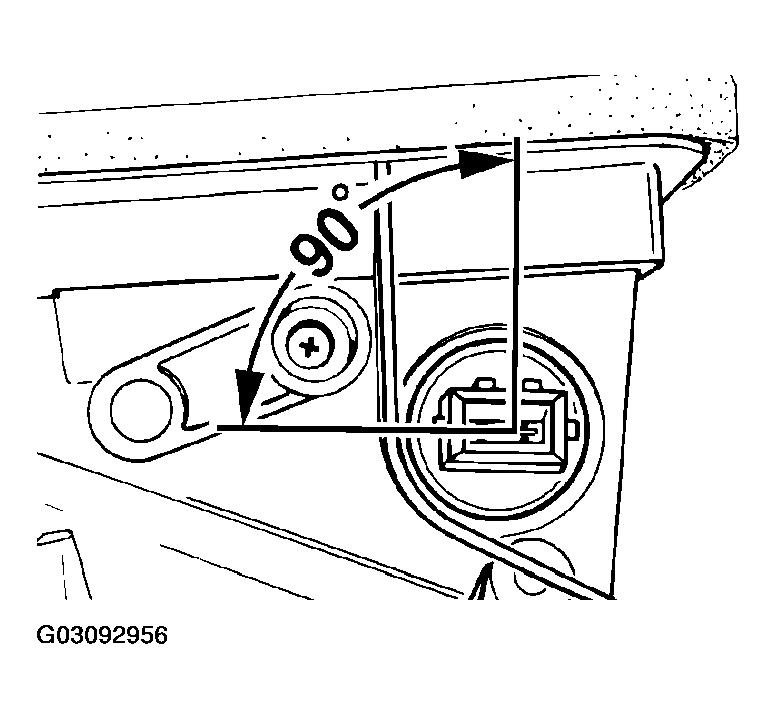

    Fig 1: Turning Temperature Sensor By 90°
    G03092956Courtesy of PORSCHE OF NORTH AMERICA, INC.
