Removing and installing interior temperature sensor: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull off cover for temperature sensor. Undo three Torx screws of the right side vent and carefully pull the side vent out of the dashboard. One Torx screw is located behind the cover.
  2. Press locking tabs together slightly and remove temperature sensor from the dashboard.

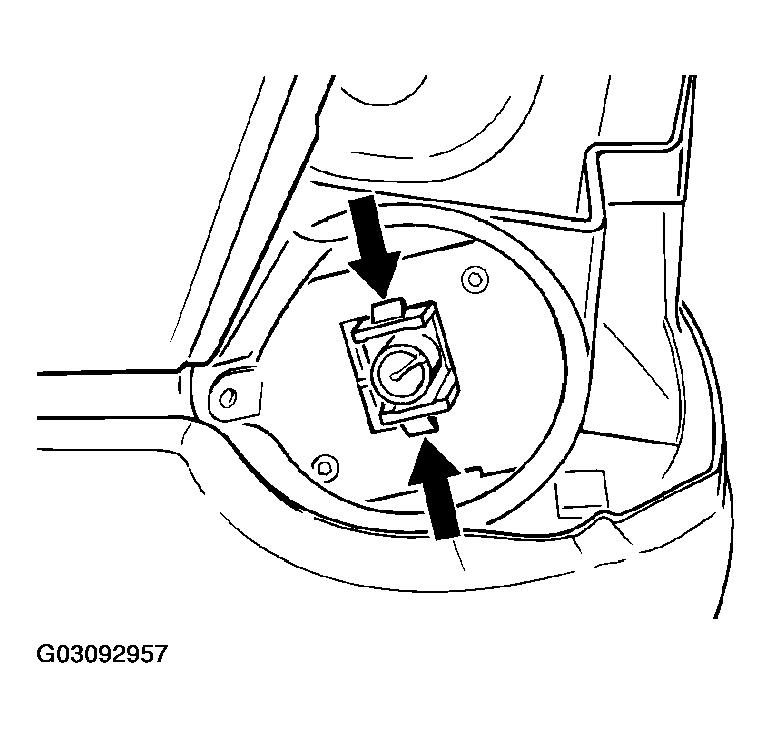

    Fig 1: Pressing Locking Tabs Together And Removing Temperature Sensor From The Dashboard
    G03092957Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Pull off electrical plug connection.
