Removing and installing heating/air-conditioning control: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unclip cover.
Unscrew fastening screws (2 ea.) and pull the heating/air-conditioning control out of the dashboard.

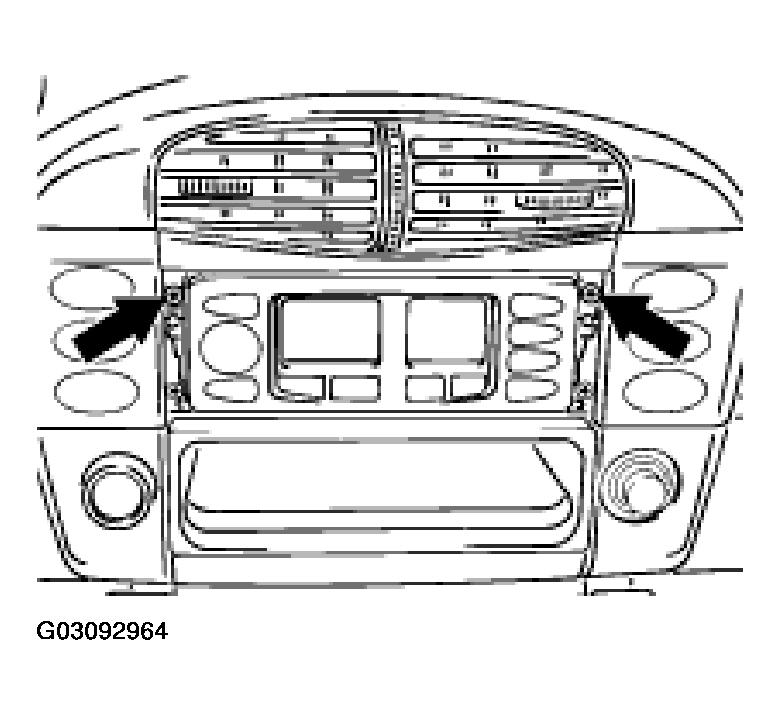

Fig 1: Removing Heating/Air-Conditioning Control Fastening Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the plug connections

NOTE: Basic adaptation to the system must be performed with a new heating/air-conditioning control. This is indicated by flashing of the displays for approx. 5 to 10 seconds each time the ignition is switched on. Basic adaptation is performed during the system test.
