Removing and installing footwell blower outlet sensor: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove footwell bulkhead. Unclip centre console cover at the front and remove the footwell vent (3 screws).
Turn blower outlet sensor by 90° and pull it out.

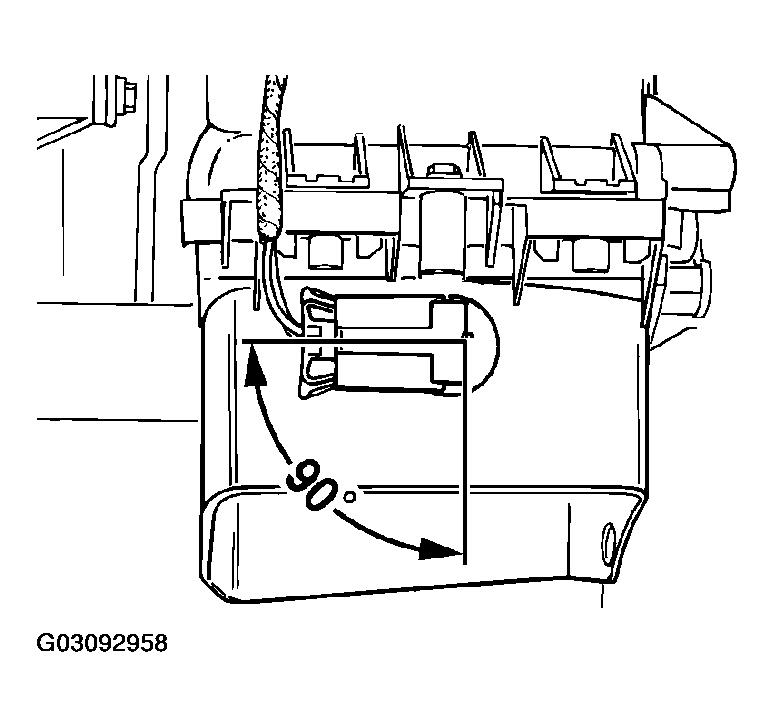

Fig 1: Turning Blower Outlet Sensor By 90°
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pull electrical plug connection off blower outlet sensor.
