Removing and installing fan for condenser: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel, wheel housing liner and wing support.
Detach cooler bracket from the body (1 nut, 2 M8 screws). Unclip ventilation hose and ballast resistor. Undo retaining clips from the cooler and pull off the cooler bracket downwards.

Fig 1: Removing Cooler Bracket, Nut & Screw From Body
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disconnect the electrical plug connection and undo retaining clips from the fan housing. Pull fan housing out of the holder, bending up the ventilation hose on the cooler at the same time.

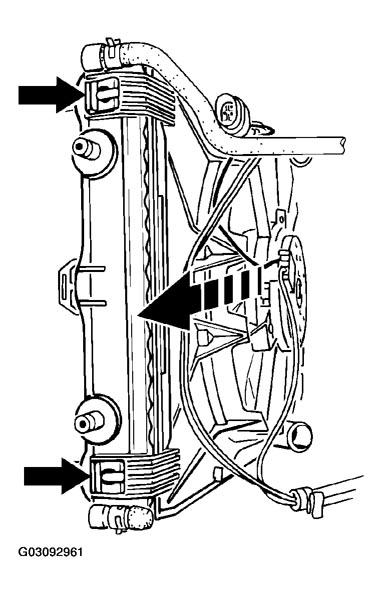

Fig 2: Disconnecting Electrical Plug Connection & Undoing Retaining Clips
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Detach fan motor from the fan housing and remove.

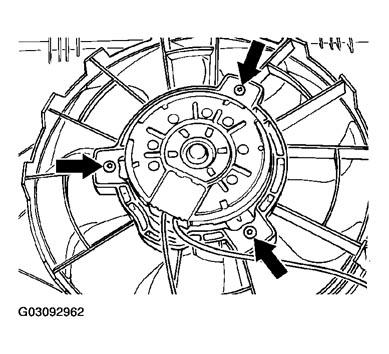

Fig 3: Removing Fan Motor From Fan Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
