Drive motor for footwell/defrost

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

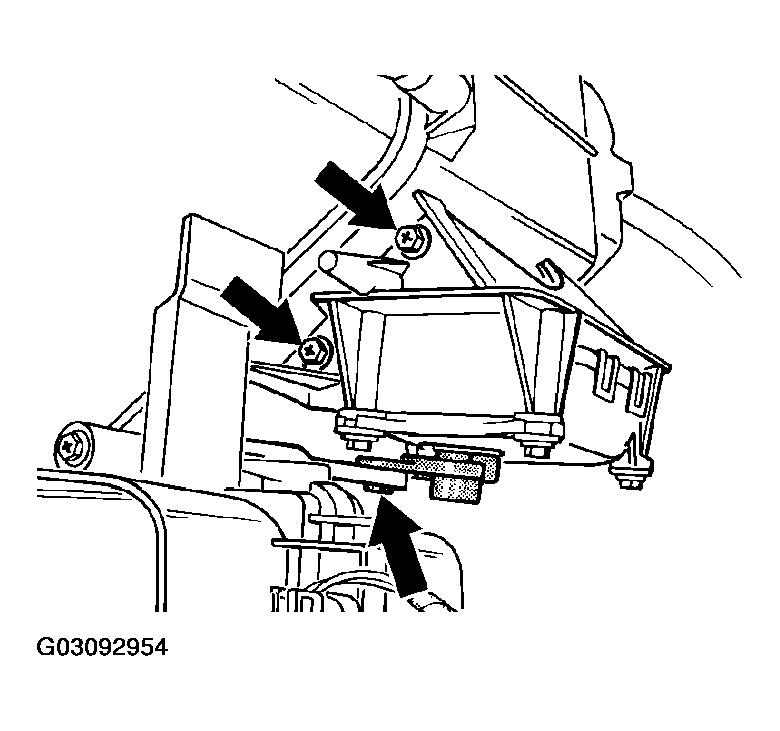

Fig 1: Identifying Drive Motor For Footwell/Defrost
G03092954Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Unscrew drive motor with bracket from the heating/air-conditioning unit (2 screws).
  2. Swivel drive motor to the side and disengage the deflection lever.
  3. Disconnect electrical plug connection and detach bracket from the drive motor.
