Removing and Installing drive motor for fresh-air/recirculation valve: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. The recirculation button must be pressed before removal (fresh-air supply blocked). The drive motor can be removed from the installed heating/air-conditioning unit in this position (recirculation).
  2. Remove footwell bulkhead and right air guide. Disconnect electrical plug connection of the drive motor and undo fastening screw.

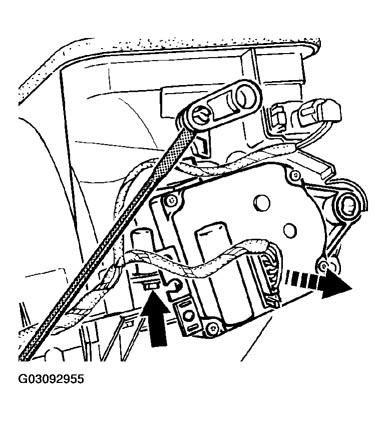

    Fig 1: Disconnecting Electrical Plug Connection Of The Drive Motor And Locating Fastening Screw
    G03092955Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Disengage pivot pin on the adjusting lever with a screwdriver.
  4. Swivel down the drive motor and remove it to the side.
