Service unit SECU 134

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

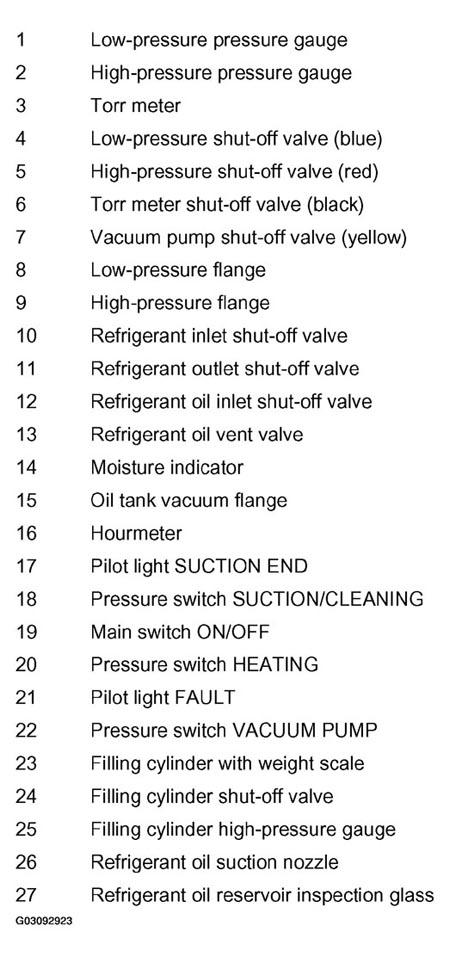

Fig 1: Identifying Service Unit SECU 134 Components (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

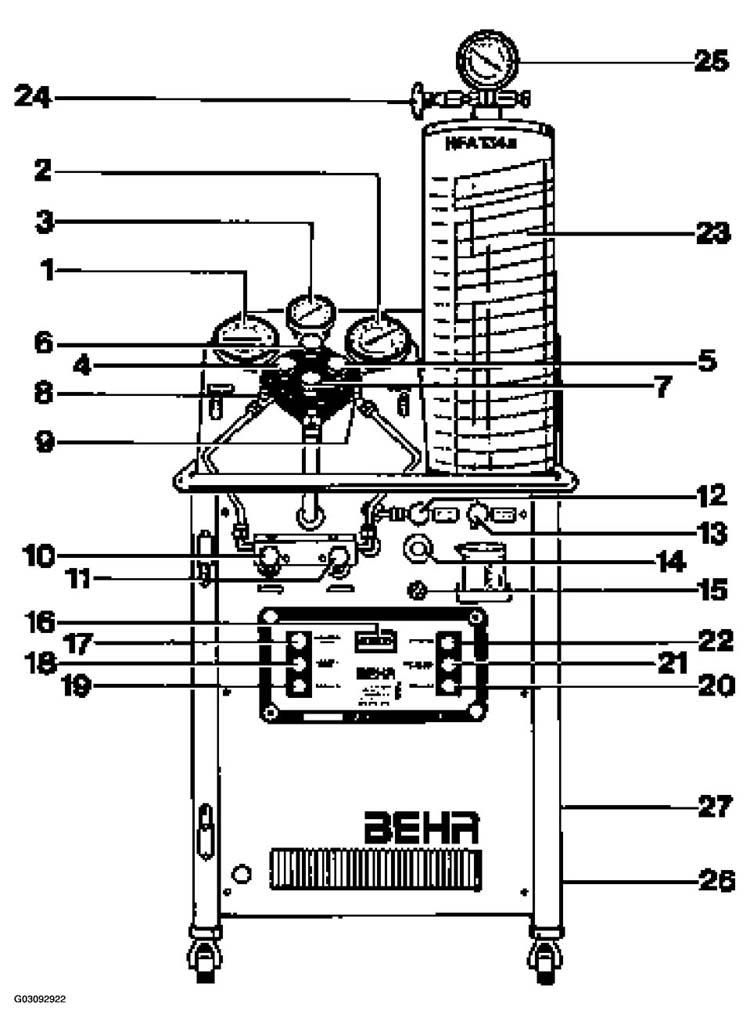

Fig 2: Identifying Service Unit SECU 134 Components (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The manufacturer's operating and repair instructions must be observed when carrying out all work on the service unit.
