General assembly sequence

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove refrigerant by suction.
Remove faulty part.
Evacuate.
Check the system for leaks.
Rinse with refrigerant.
Empty the system by suction again.
Evacuate.
Fill.

NOTE:

Pay attention to sealing rings when disconnecting or connecting the hose connections.

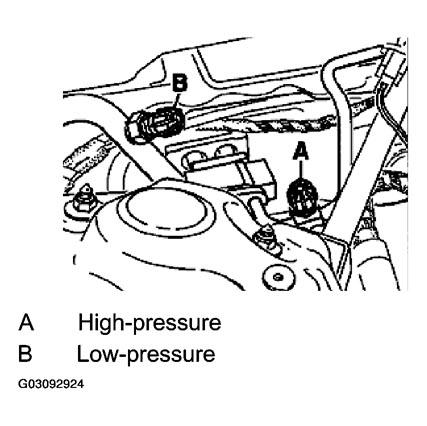

Fig 1: Identifying Low And High Pressure A/C Connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The charging valves are located in the area of the front right spring strut.
