Subsequent Work

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Secure oil filler hose -1-  .
   1. 1.1. Position upper part of oil filler hose and fit spring band clamp -2-  .

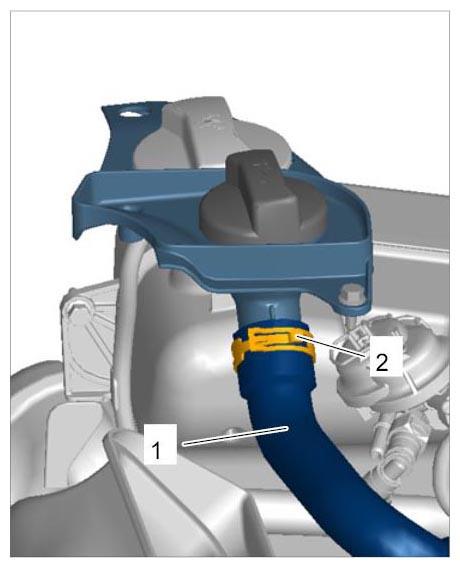

      Fig 1: Identifying Oil Filler Hose On Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      WARNING: Hot fluid

      • Danger of scalding

      → Let the fluid cool down.

      → Wear personal protective gear.

2. Install service tray.

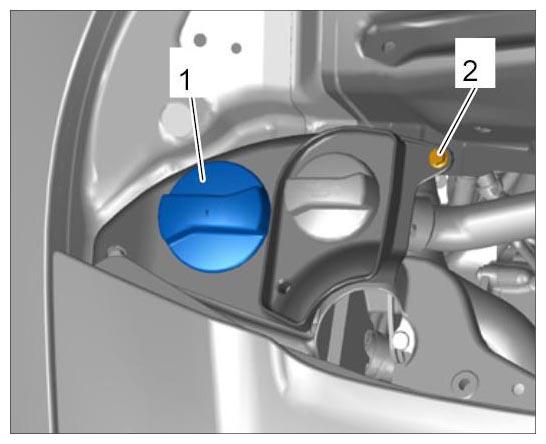

   Fig 2: Identifying Cap On Coolant Reservoir And Cover Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Close coolant reservoir cap -1-  .
   2. 2.2. Fit and tighten M6 screw -2-  .
3. Fill in coolant.

   → FILLING COOLANT .

4. Bleed the cooling system.

   → 190107 BLEEDING THE COOLING SYSTEM .

5. Install rear spoiler.

   → INSTALLING REAR SPOILER .
