Installing Lower Part Of Lock

Install lower part of lock.

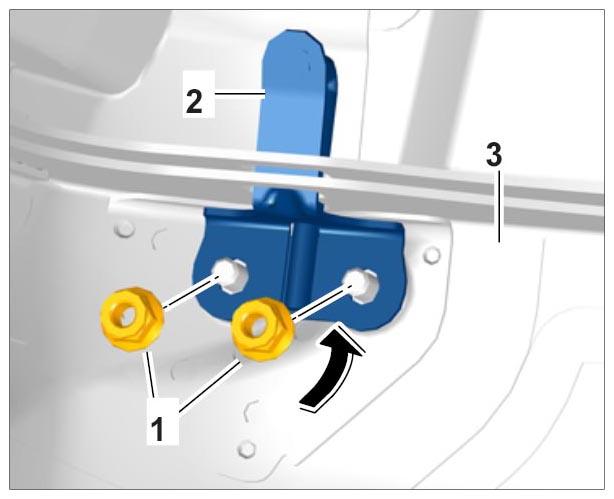

Fig 1: Installing Lower Part Of Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position lower part of lock -2- on the seat shell -3- (-arrow- ).
2. 1.2. Fit fastening nuts -1- and tighten them so that the lower part of the lock -2- can still be moved.
3. 1.3. Adjust lower part of lock. → Removing Lower Part Of Lock .

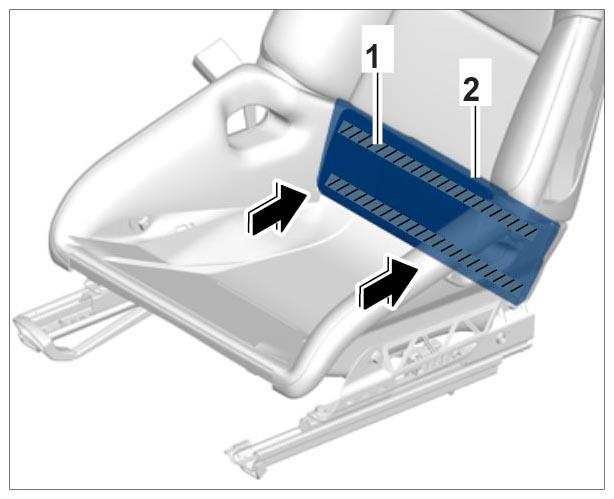

Check bonding points -1- on the foam part -2- and apply new adhesive if necessary.

Fig 2: Installing Foam Part Of Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position foam part -2- (-arrows- ) and press it on at the bonding points -1- .

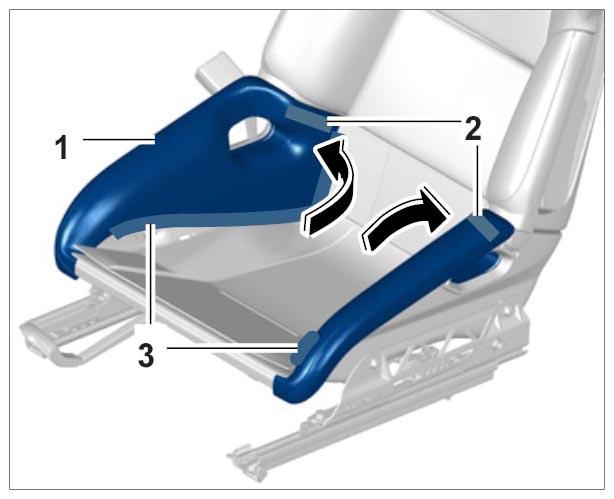

Align cover -1- with the side bolsters.

Fig 3: Pressing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).
