Removing Lower Part Of Lock

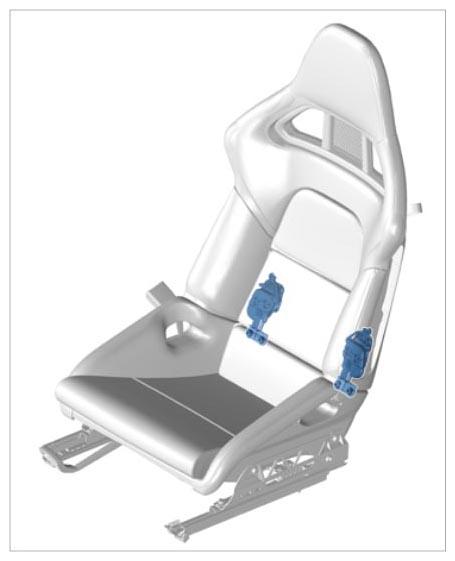

Fig 1: Identifying Backrest Adjustment Upper Part Of Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

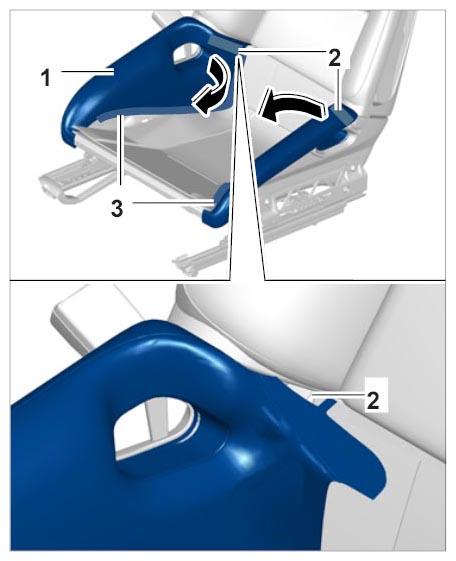

Pull off the cover -1- at the Velcro fasteners -2- and -3- (-arrows- ).

Fig 2: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

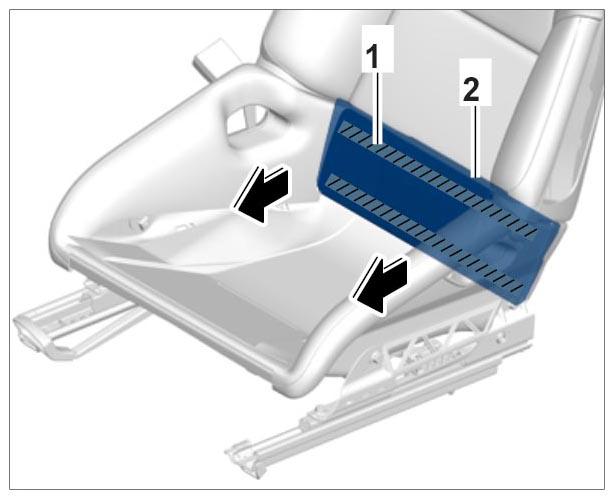

Carefully detach foam part of seat -2- at the bonding points -1- and remove it -arrow- .

Fig 3: Removing Foam Part Of Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the backrest and fold it forward until there is no contact with the upper part of the lock.

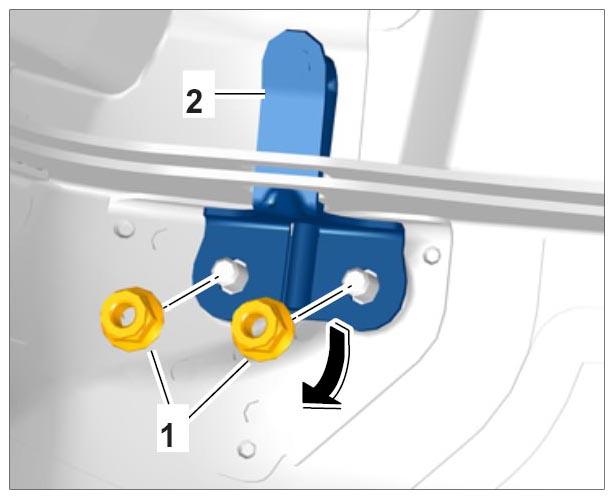

Unscrew fastening nuts -1- and remove lower part of lock -2- - -arrow-

Fig 4: Removing Lower Part Of Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
