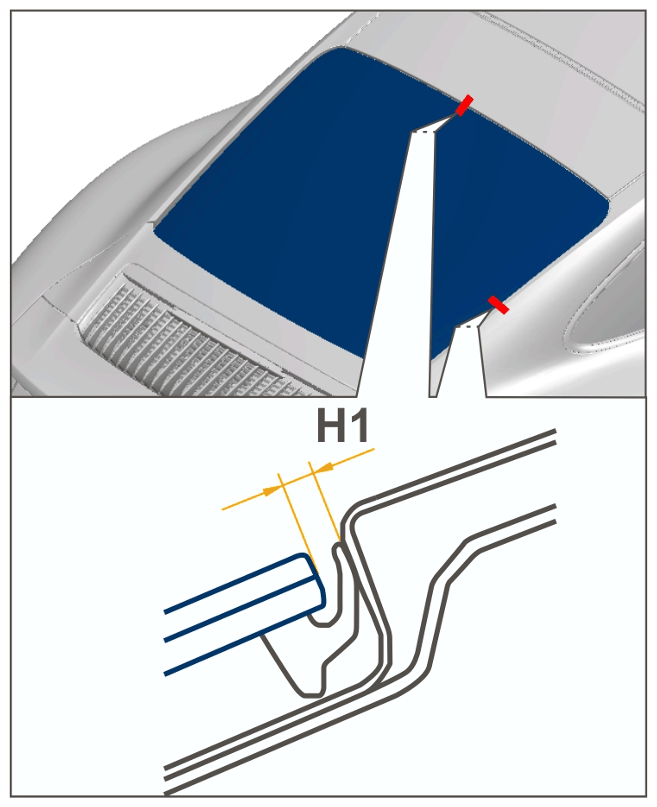

| Rear window to body (H1) |
|
Gap dimension |
3 mm |
+/- 0.5 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear window |
|
|
|
|

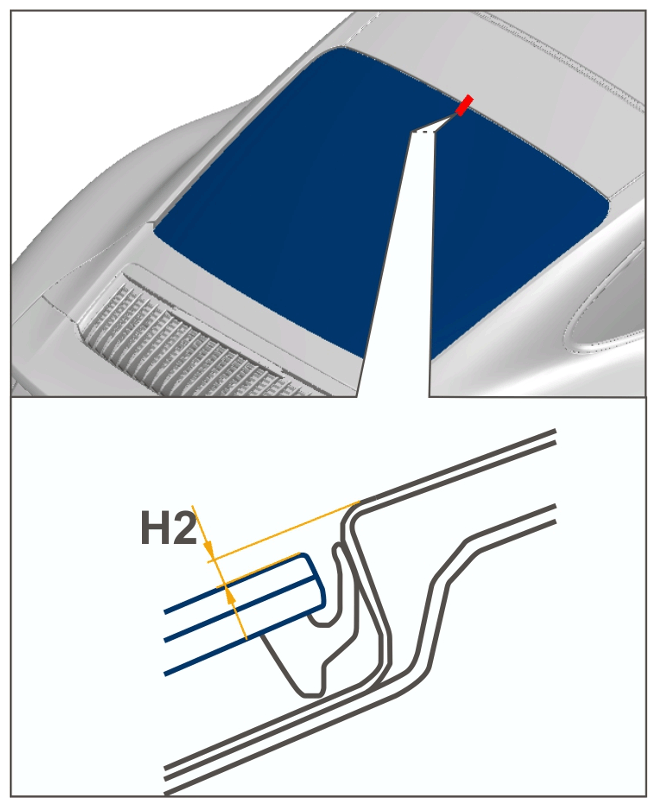

| Rear window to body (H2) |
|
Gap dimension |
4 mm |
+/-1 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear window |
|
|
|
|

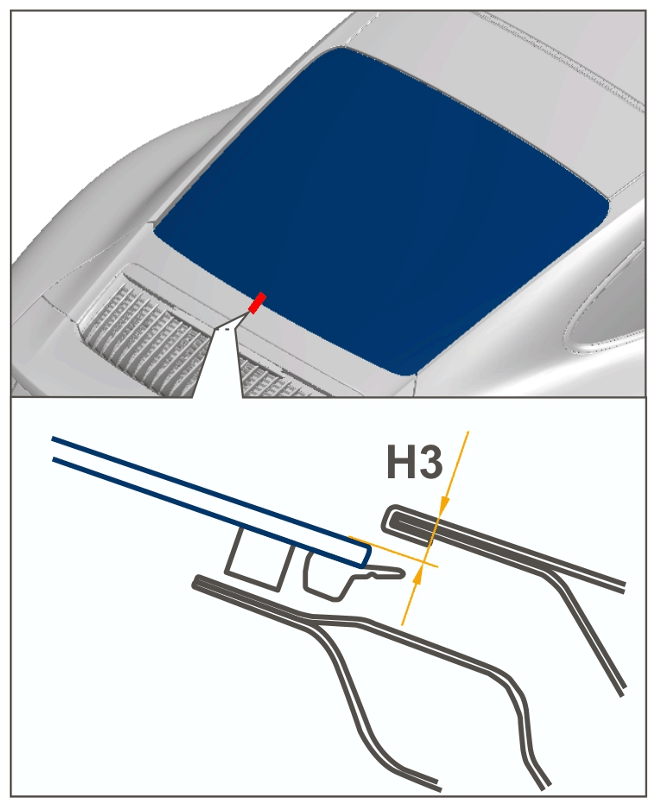

| Rear window to rear lid (H3) |
|
Gap dimension |
11 mm |
+/-1 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear window |
|
|
|
|
