WM, 5X00IN41 Gap Dimension
>>
Windows
>>
Gap Dimensions For Windscreen
Gap Dimensions For Windscreen
Location
Description
Type
Basic value
Tolerance
Windscreen to body (S1)
Gap dimension
3 mm
+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

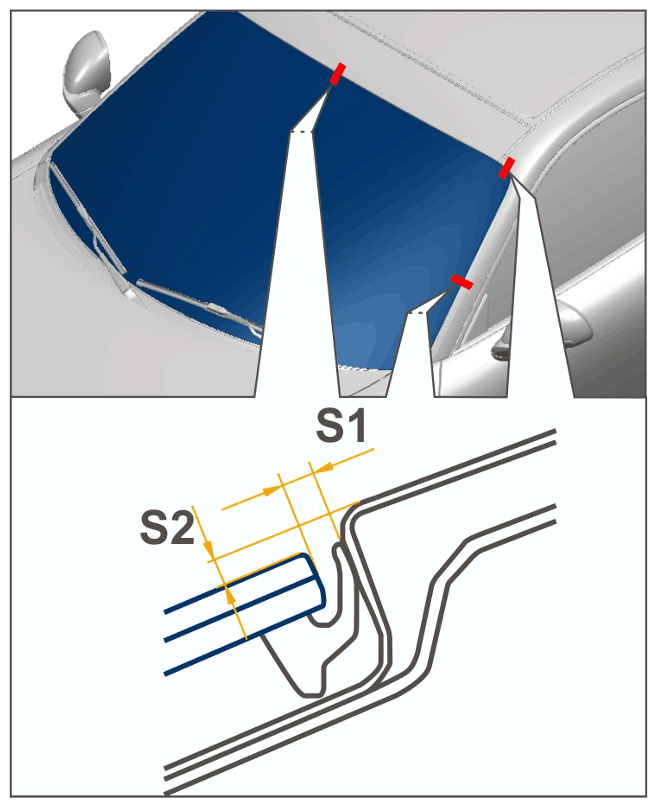

Gap dimension for windscre
en
Windscreen to body (S2)
Gap dimension
2 mm
+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension for windscre
en
