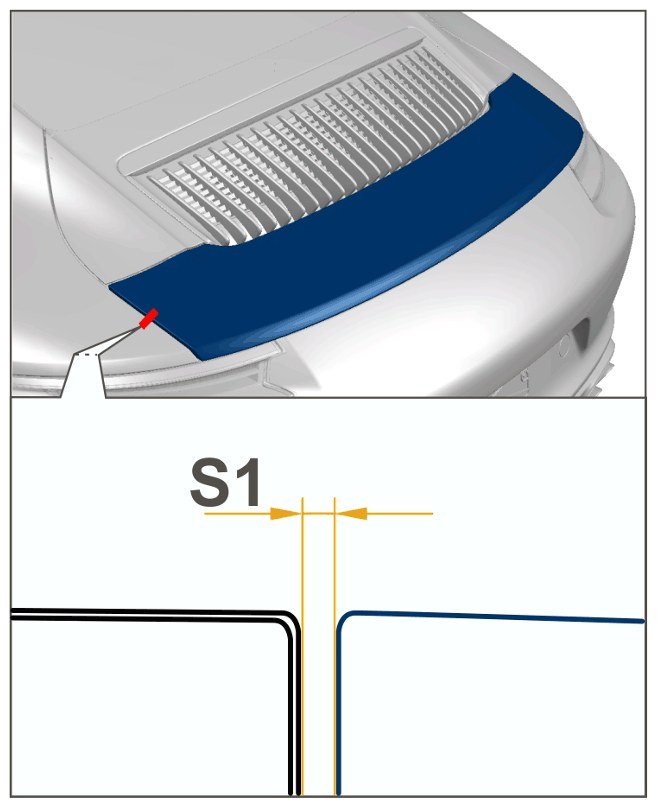

| Spoiler to side panel (S1) |
|
Gap dimension |
3 mm |
+/- 0.6 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of spoiler |
|
|
|
|

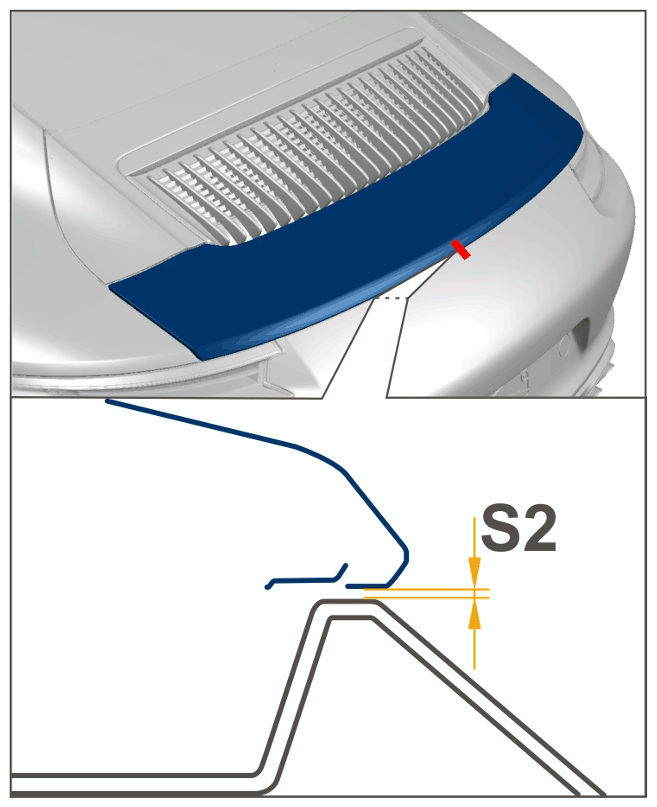

| Spoiler to rear apron (S2) |
|
Gap dimension |
3 mm |
+/-1 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of spoiler |
|
|
|
|

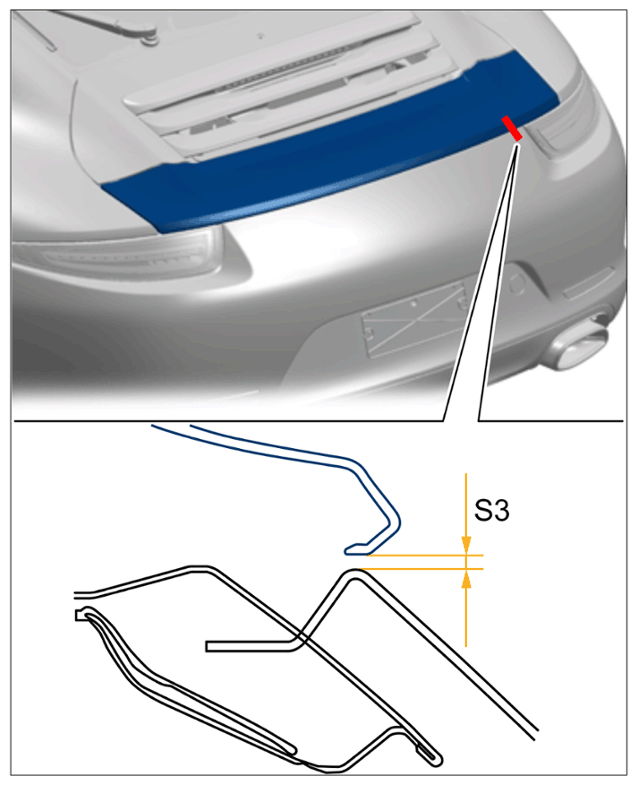

| Spoiler to rear apron (S3) |
|
Gap dimension |
3.5 mm |
+ 1 mm - 0.8 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of spoiler |
|
|
|
|
