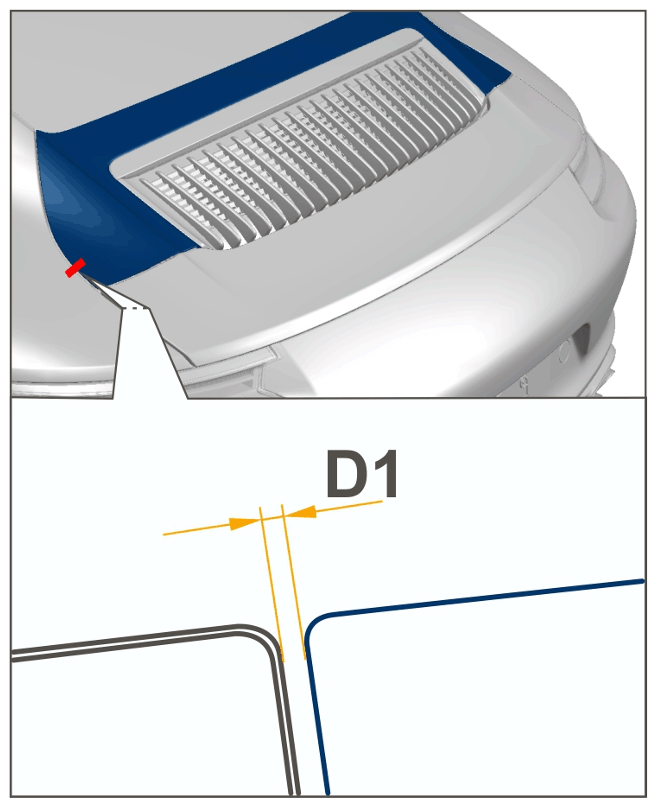

| Lid to side panel (D1) |
|
Gap dimension |
3 mm |
+/- 0.6 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear lid |
|
|
|
|

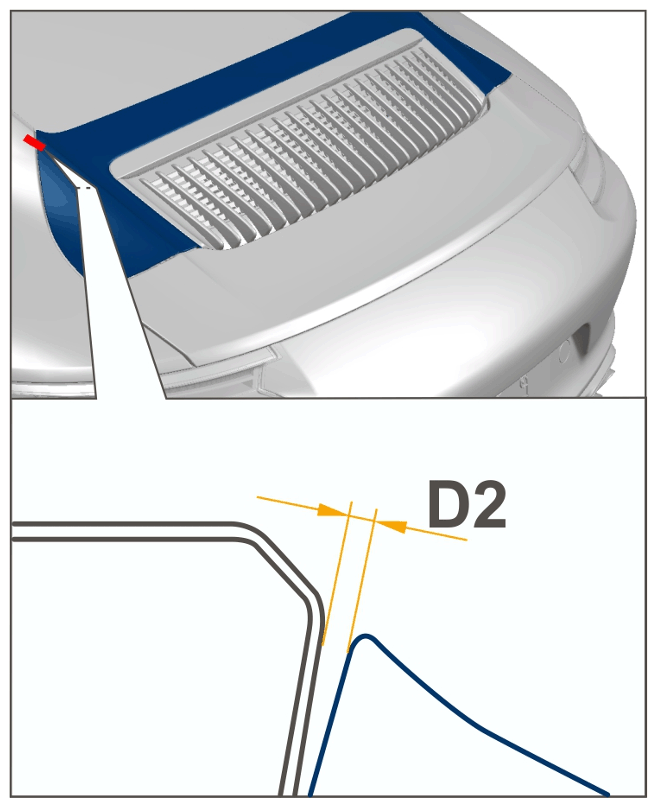

| Lid to side panel (D2) |
|
Gap dimension |
3 mm |
+/- 0.6 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear lid |
|
|
|
|

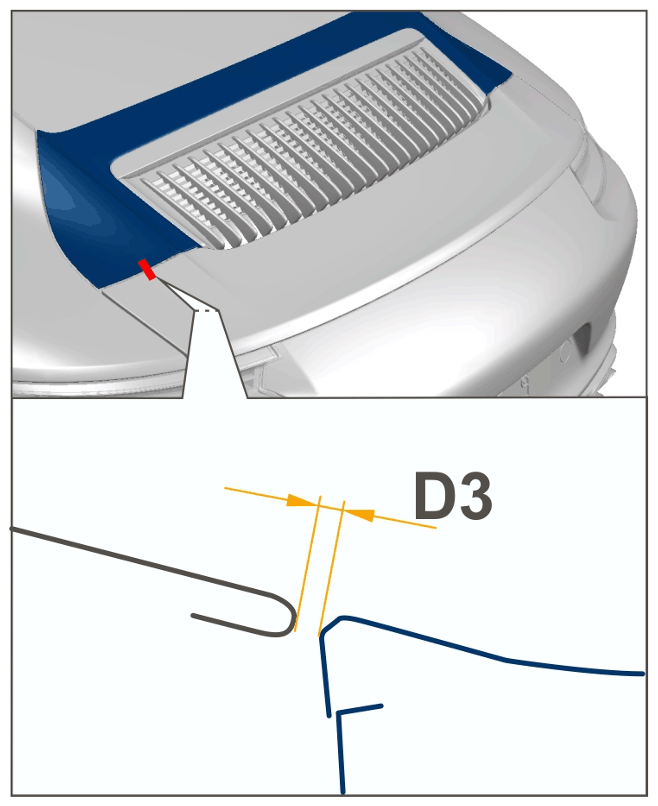

| Lid to spoiler (D3) |
|
Gap dimension |
3 mm |
+ 0.8 mm -1.2 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear lid |
|
|
|
|
