Gap Dimensions Of Light Panel

Location	Type	Basic value	Tolerance

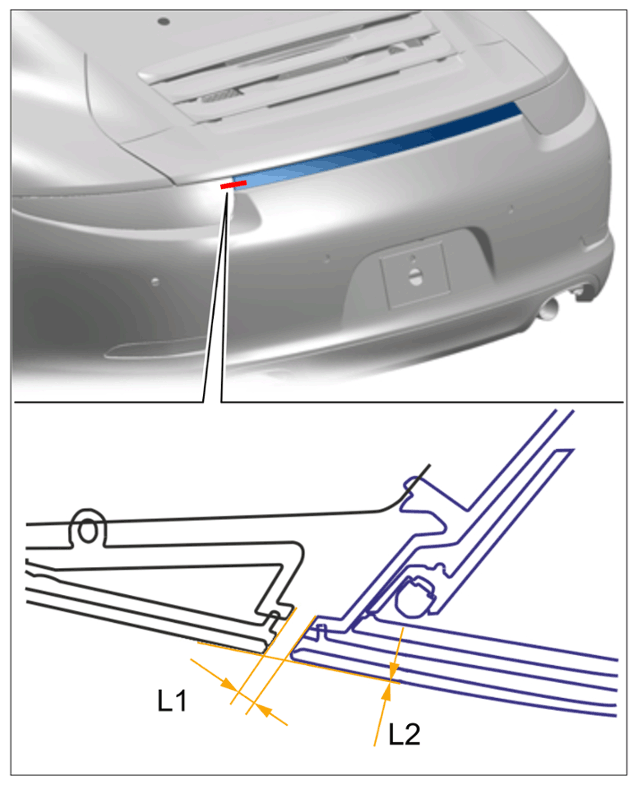

Light panel to tail light (L1)	Gap dimension	2 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel
Light panel to tail light (L2)	Offset	0 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel

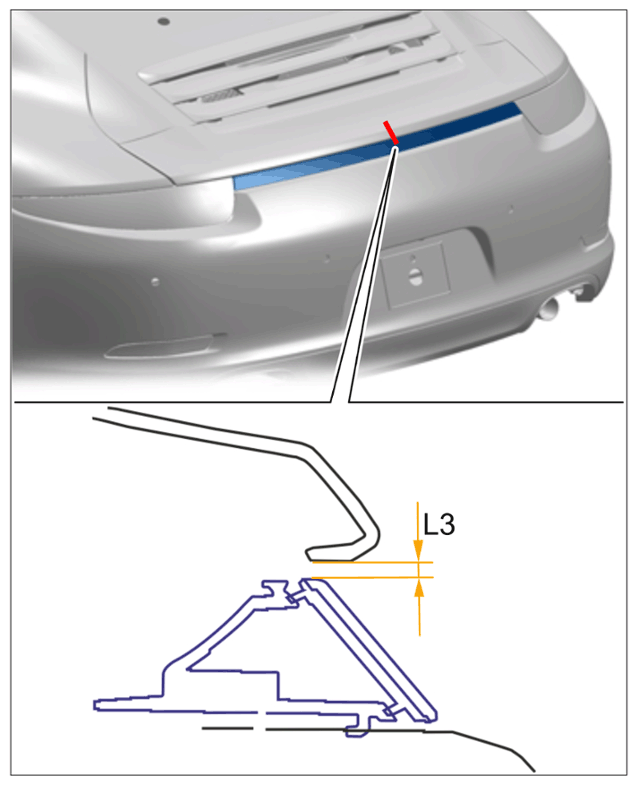

Light panel to spoiler (L3)	Gap dimension	3.9 mm	+ 0.9 mm -1.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel

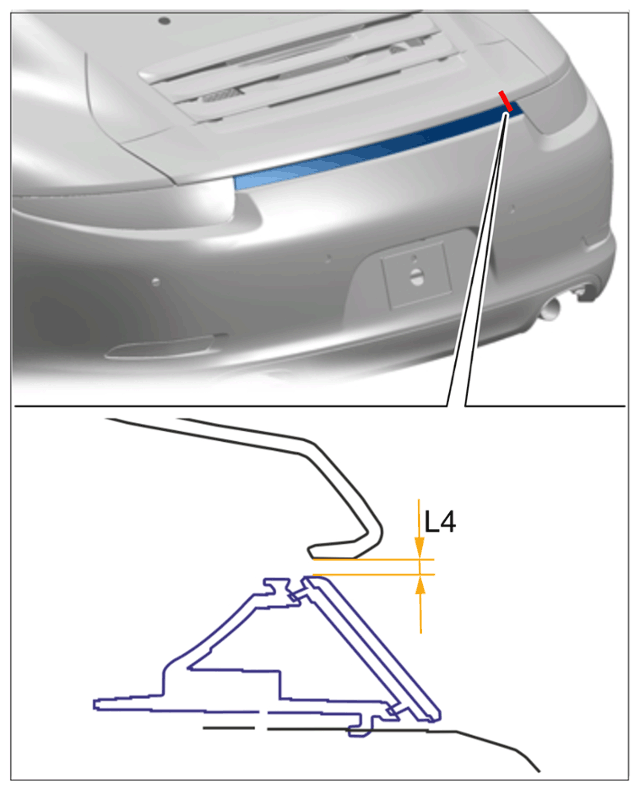

Light panel to spoiler (L4)	Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel
