Gap Dimensions Of Lid To Air Intake Grille

Location	Description	Type	Basic value	Tolerance

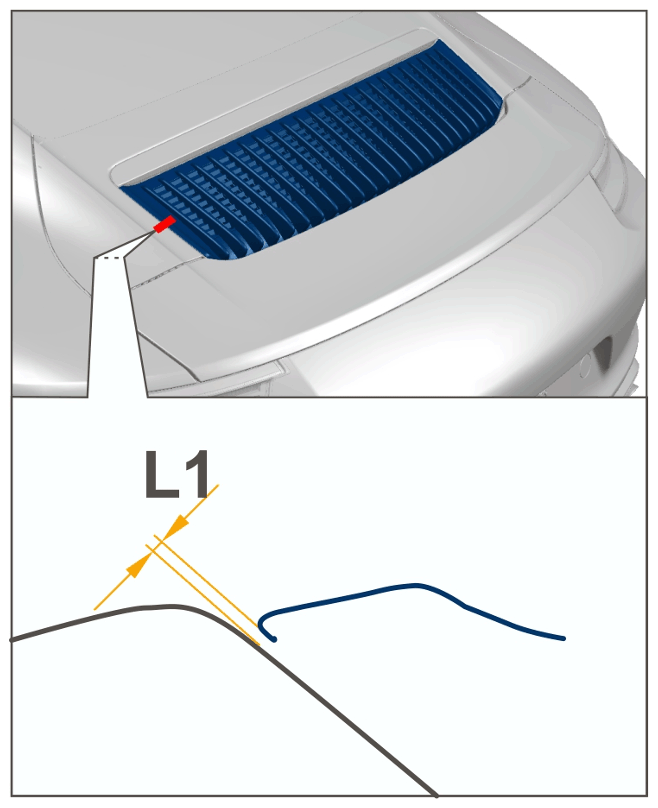

Air intake grille to lid (L1)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille

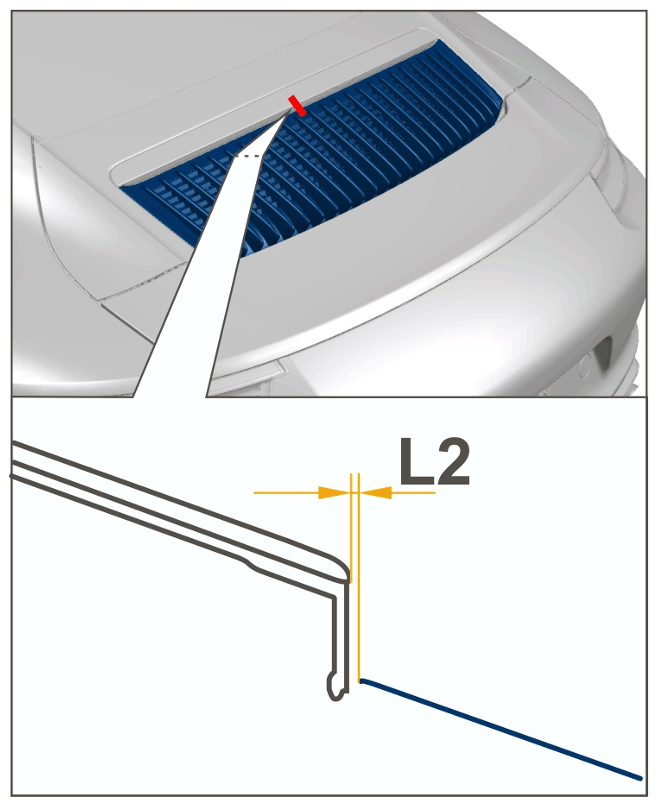

Air intake grille to air intake grille trim (L2)		Gap dimension	1.1 mm	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille

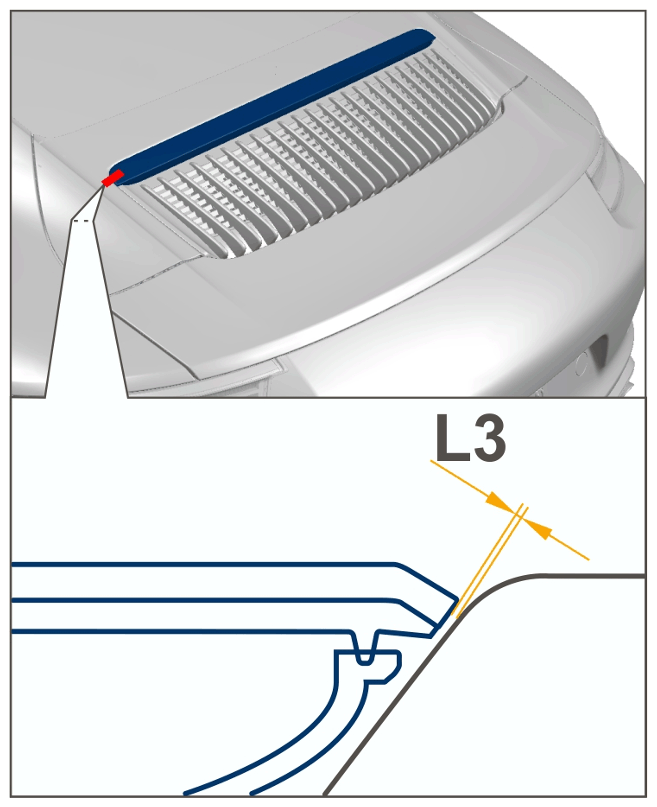

Air intake grille trim to lid (L3)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille trim

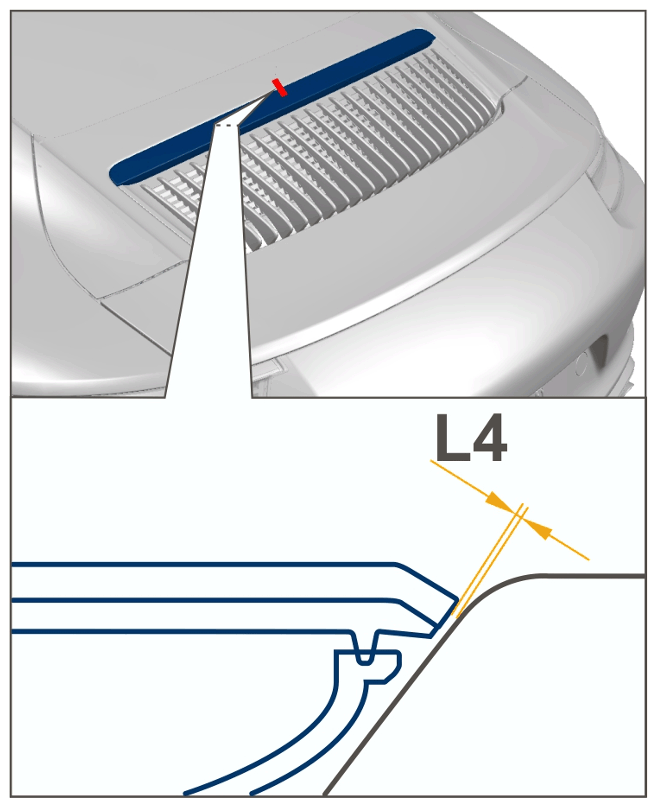

Air intake grille trim to lid (L4)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille trim
