Gap Dimensions Of Convertible-Top Compartment Lid
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

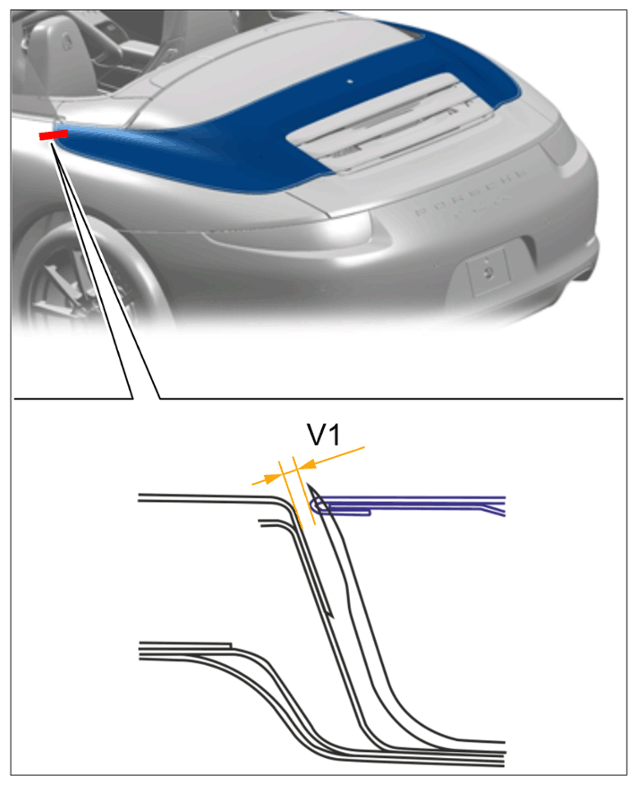

| Convertible-top compartment lid to side panel (V1) | Gap dimension | 3.7 mm | + 1 mm - 0.7 mm | |
|
Gap dimension of convertible-top compartment lid |
||||
| Convertible-top compartment lid to side panel (V2) | Gap dimension | 3.7 mm | + 1 mm | |
|
Gap dimension of convertible-top compartment lid |
||||

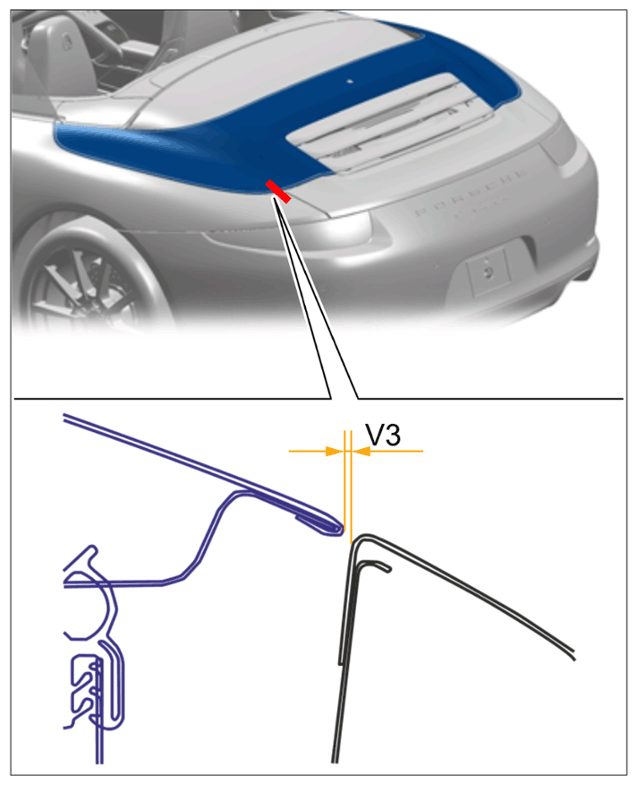

| Convertible-top compartment lid to side panel (V3) | Gap dimension | 4.1 mm (3.0 ft.lb) | +/-0.8 mm (0.6 ft.lb) | |
|
Gap dimension of convertible-top compartment lid |
||||

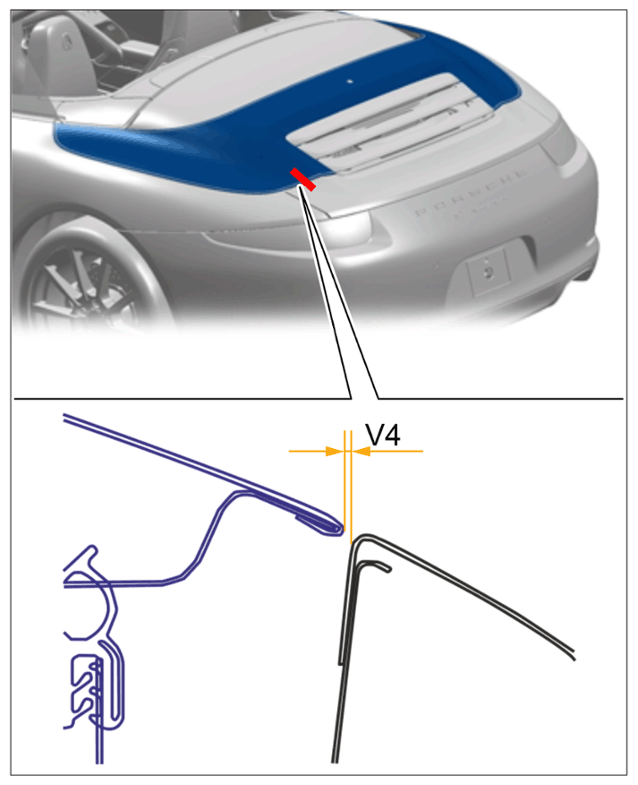

| Convertible-top compartment lid to spoiler (V4) | Gap dimension | 4.5 (3.4 ftlb.) mm | + 1 mm -0.5 (0.4 ftlb.) mm | |
|
Gap dimension of convertible-top compartment lid |
