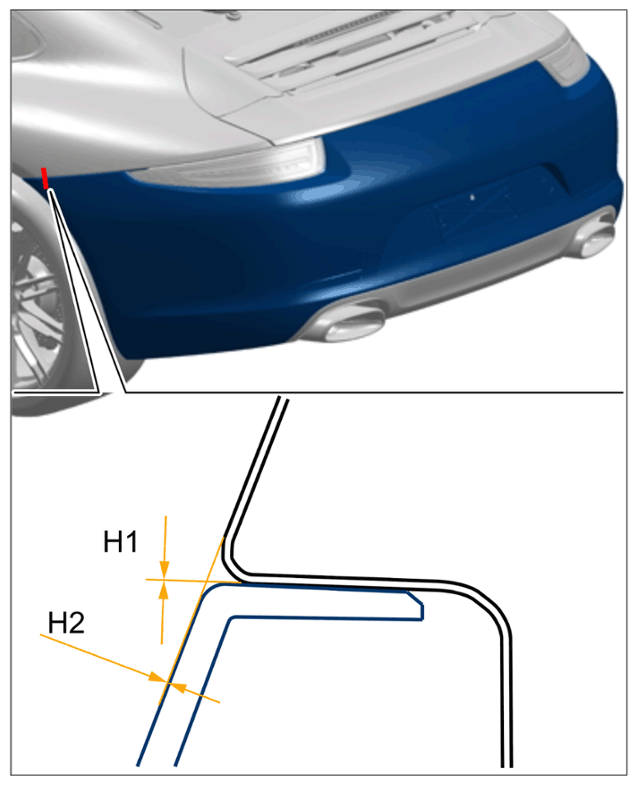

| Rear apron to side panel (H1) |
|
Gap dimension |
0 mm |
+ 0.5 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear apron |
|
|
|
|
| Rear apron to side panel (H2) |
|
Offset |
0 mm |
+/- 0.5 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear apron |
|
|
|
|

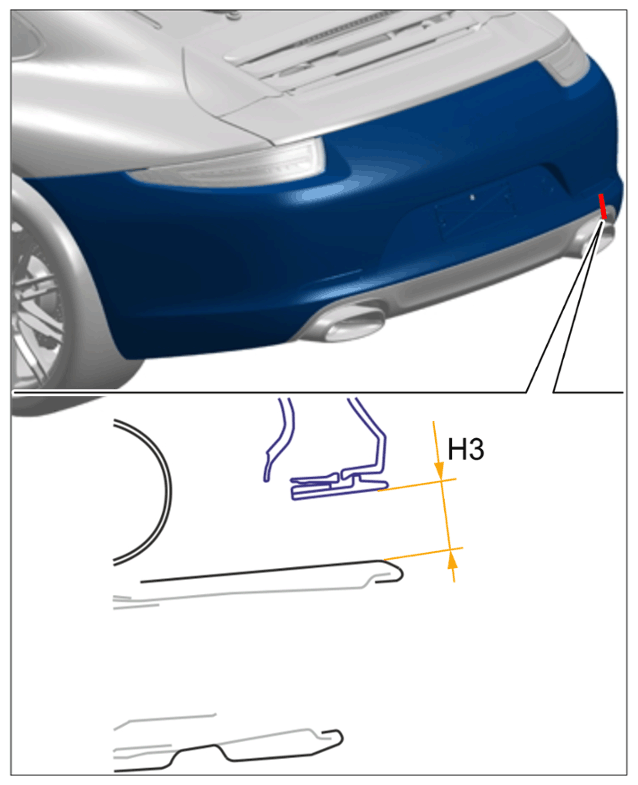

| Rear apron to tailpipe (H3) |
|
Gap dimension |
20 mm |
+/- 2 mm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gap dimension of rear apron |
|
|
|
|
