WM, 5X00IN41 Gap Dimension: Notes

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1

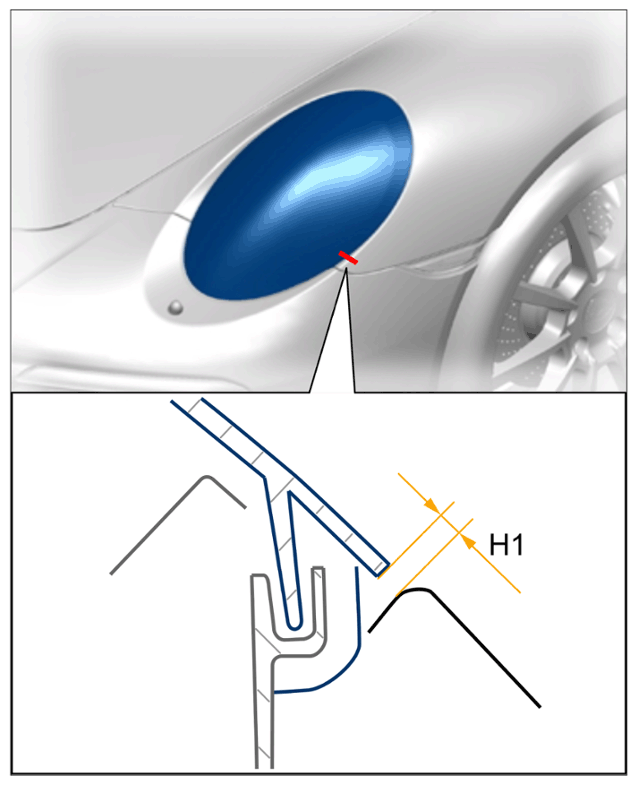

Main headlight to wing (H1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

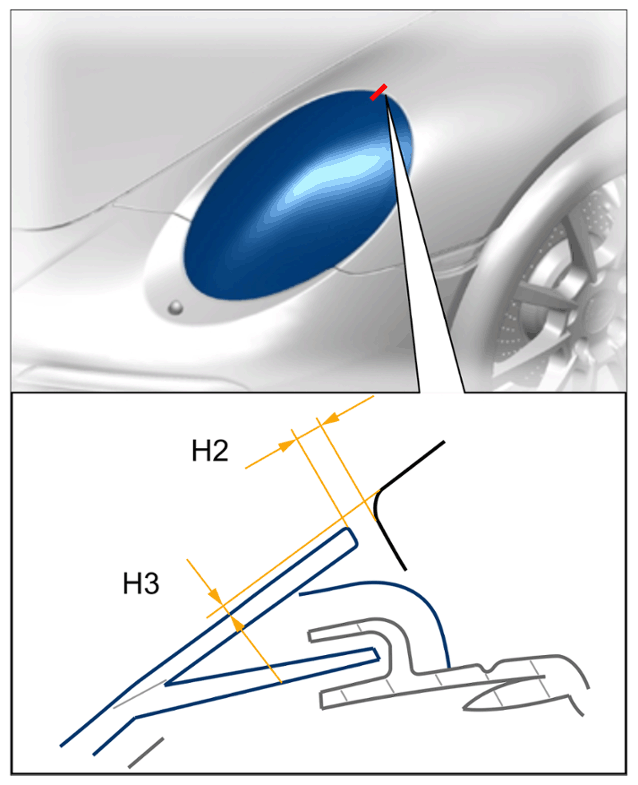

Main headlight to wing (H2)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights
Main headlight to wing (H3)		Offset	1 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

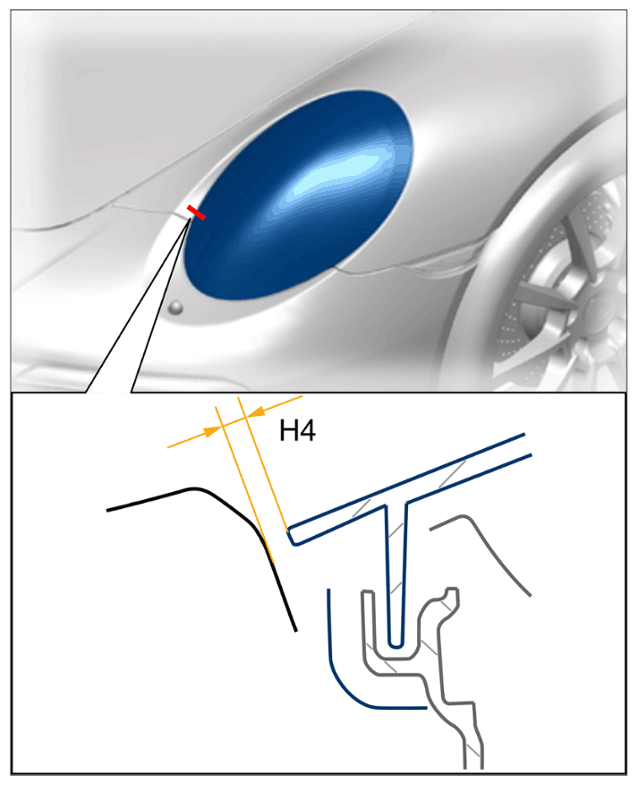

Main headlight to wing (H4)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

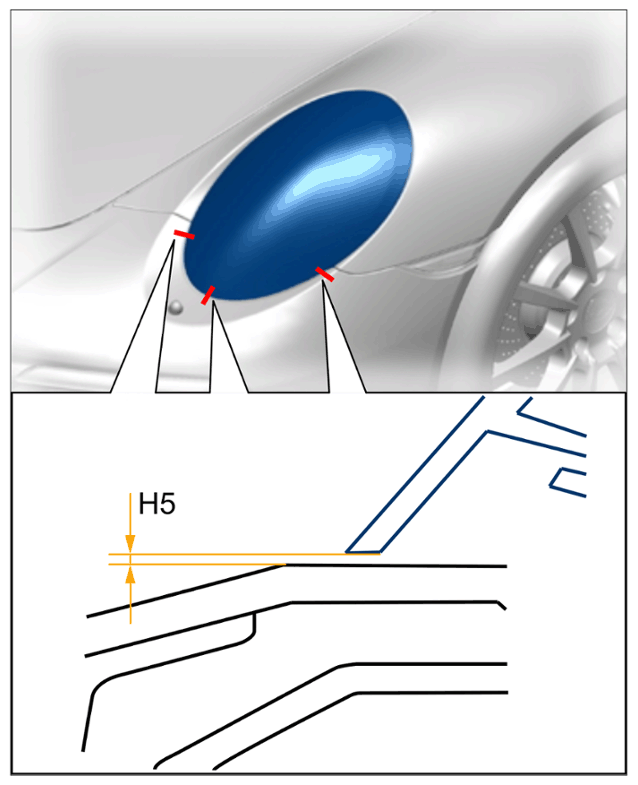

Main headlight to front apron (H5)		Gap dimension	3 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

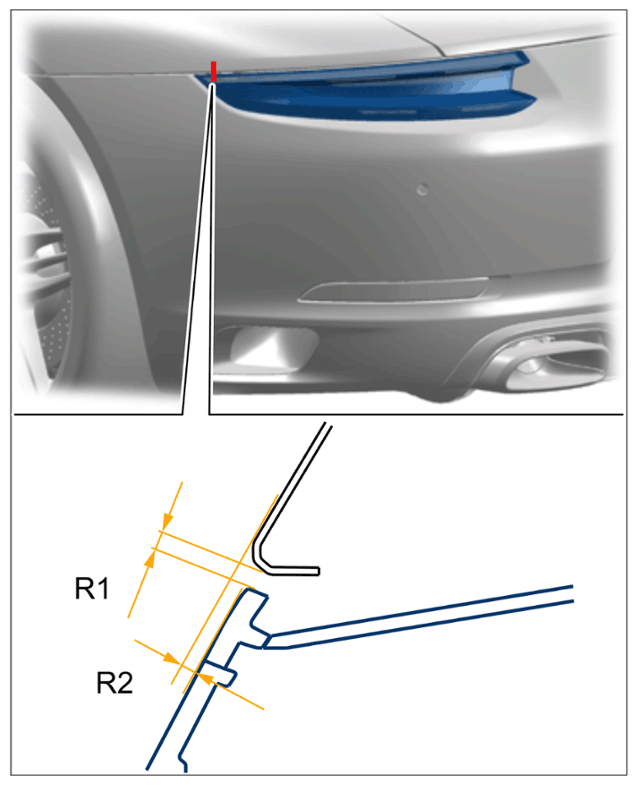

Tail light to side panel (R1)		Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light
Tail light to side panel (R2)		Offset	1.7 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

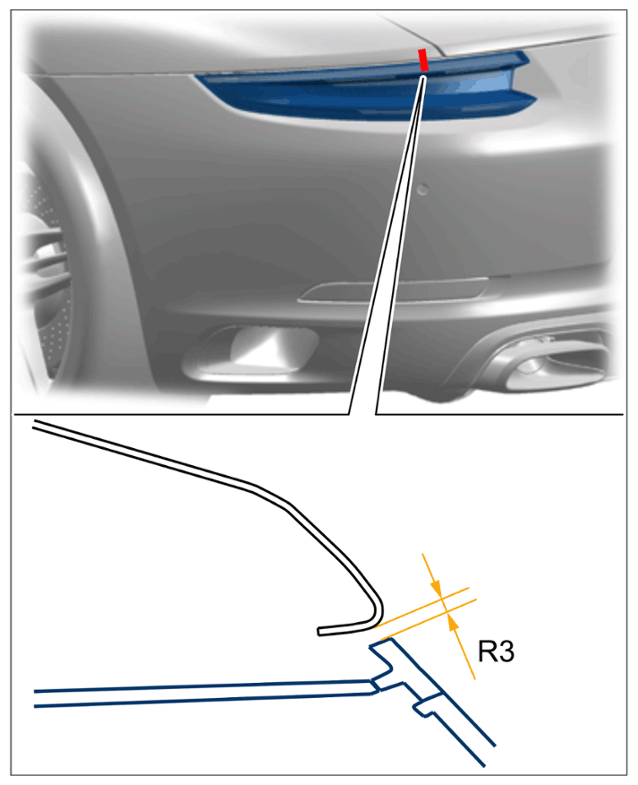

Tail light to side panel (R3)		Gap dimension	3.5 mm	+ 0.7 mm,-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

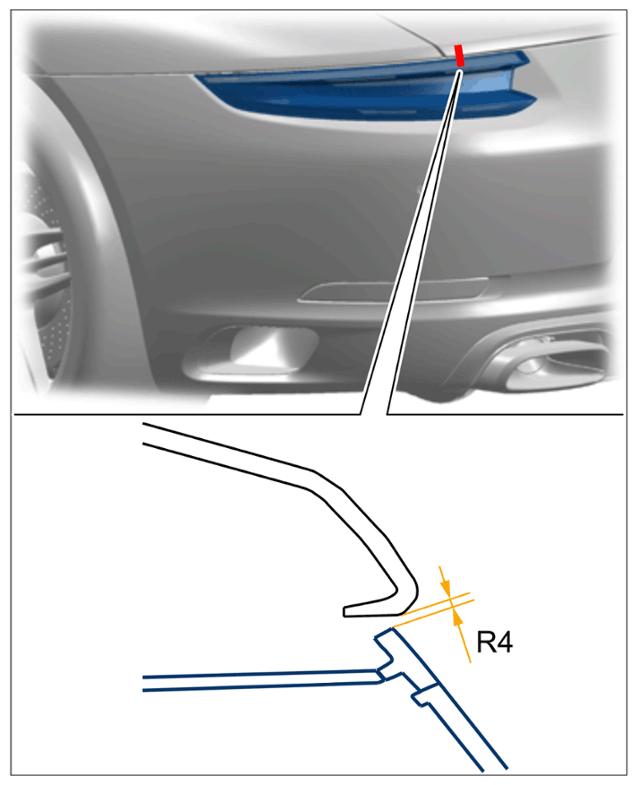

Tail light to spoiler (R4)		Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

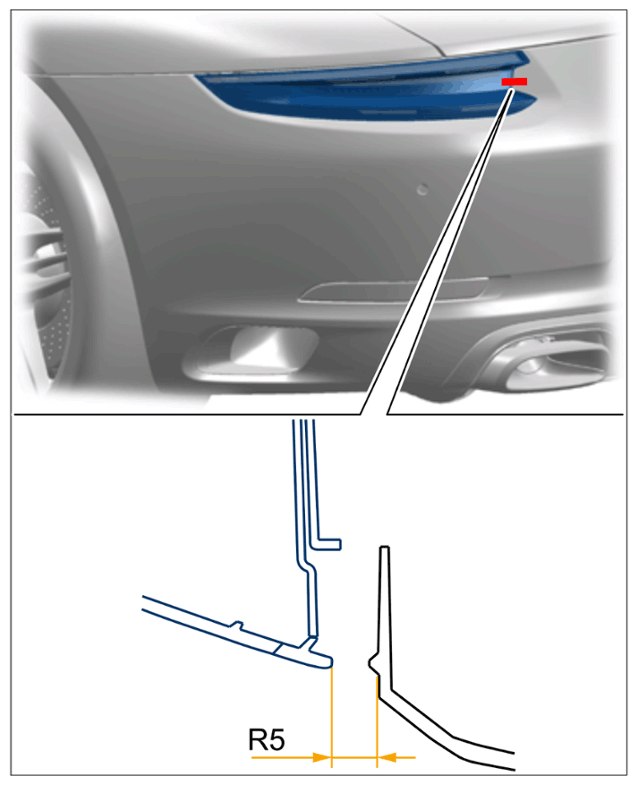

Tail light to rear apron (R5)		Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

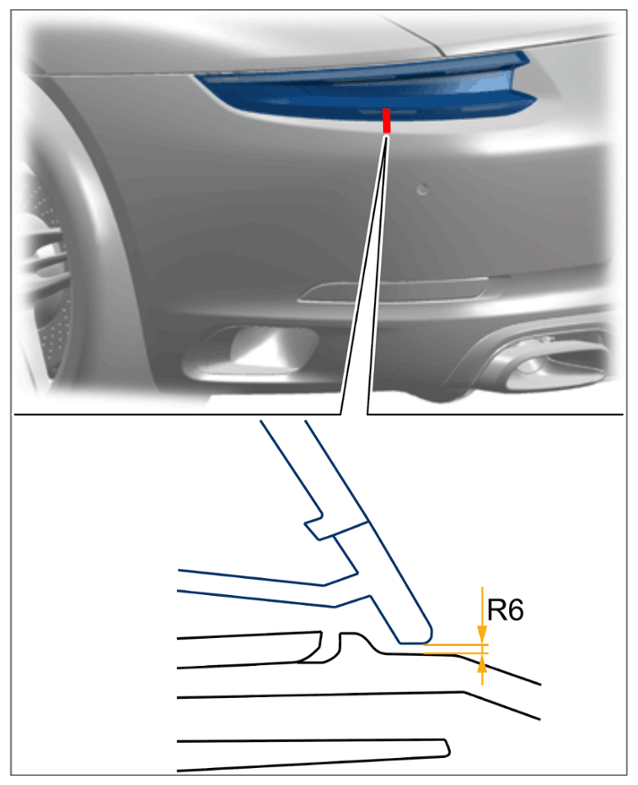

Tail light to rear apron (R6)		Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

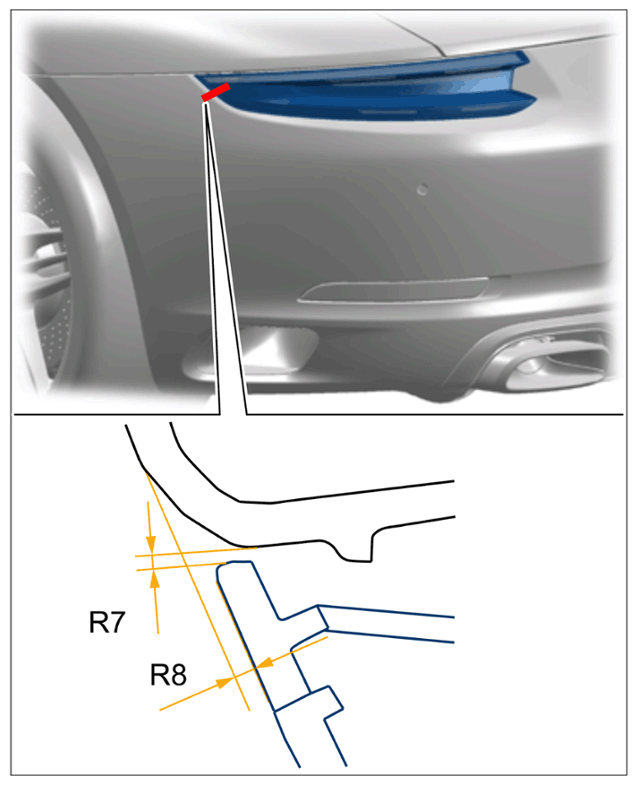

Tail light to rear apron (R7)		Gap dimension	2.8 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light
Tail light to rear apron (R8)		Offset	1.7 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

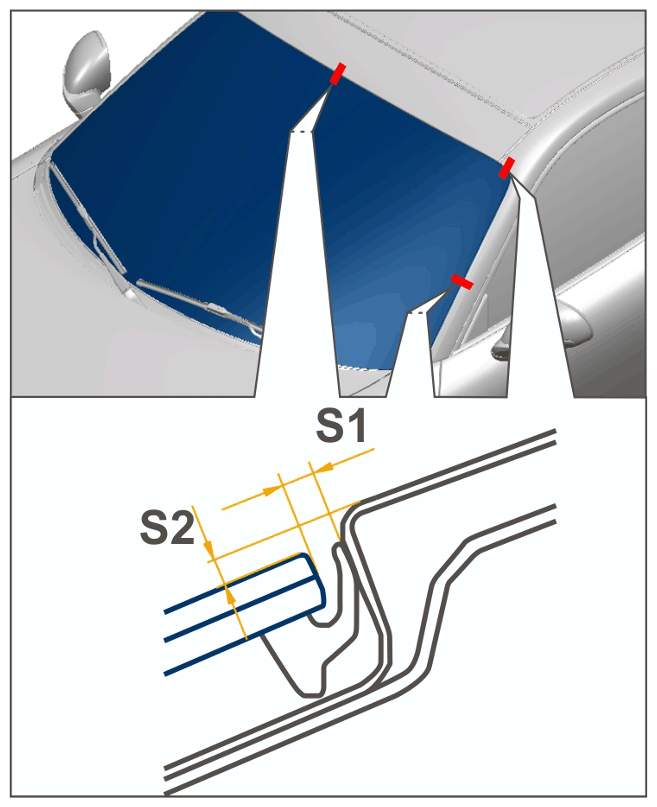

Windscreen to body (S1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for windscreen
Windscreen to body (S2)		Gap dimension	2 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension for windscreen

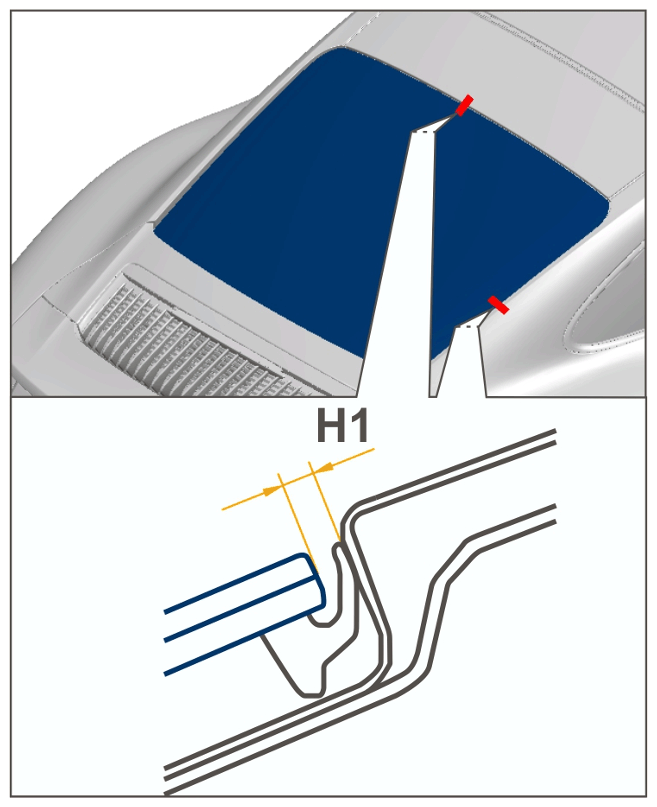

Rear window to body (H1)		Gap dimension	3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window

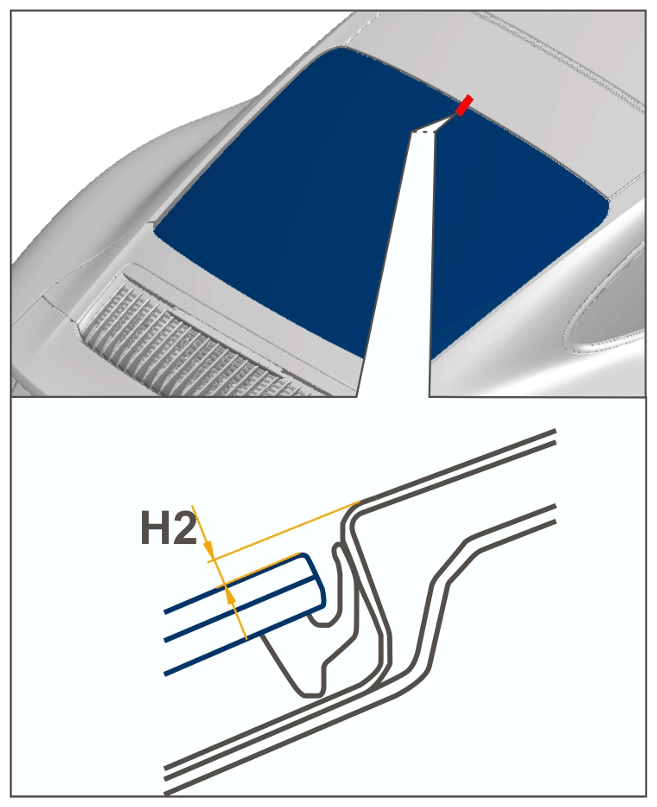

Rear window to body (H2)		Gap dimension	4 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window

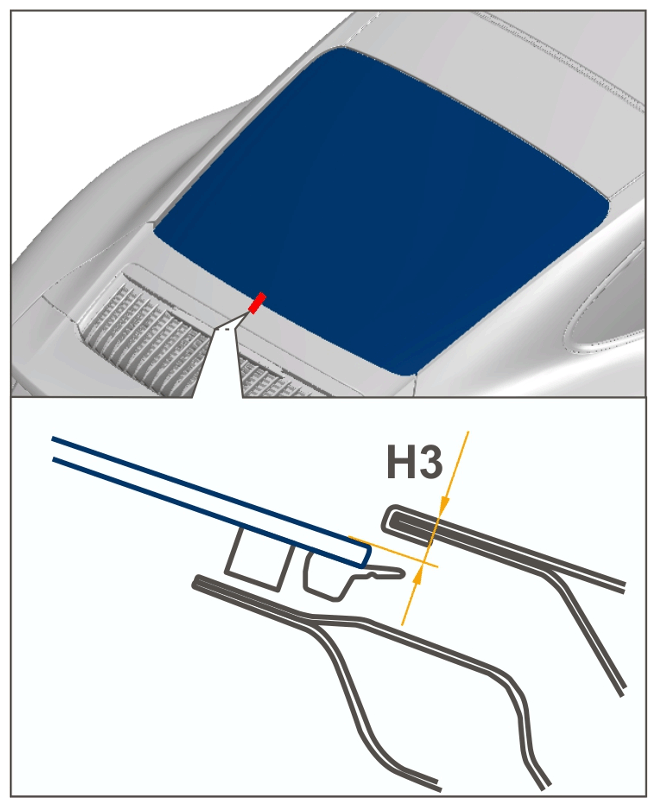

Rear window to rear lid (H3)		Gap dimension	11 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear window

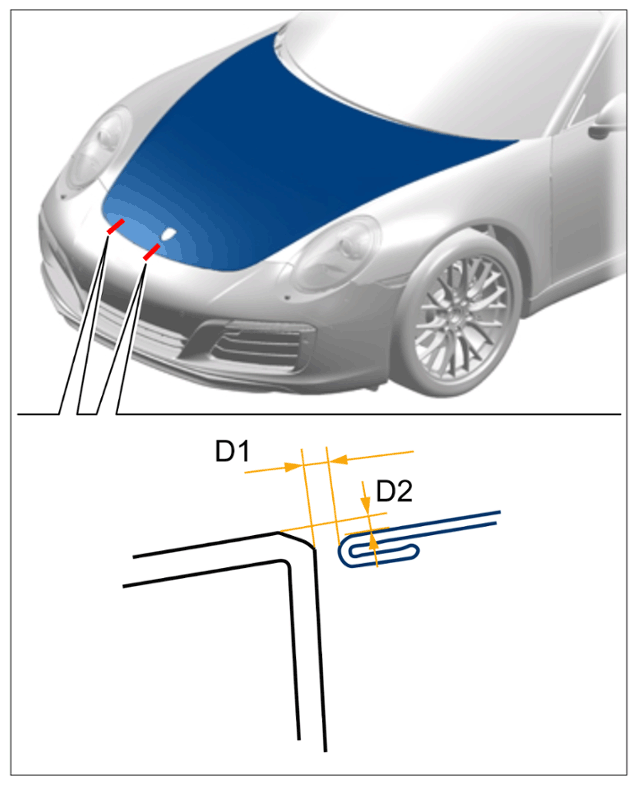

Lid to front apron (D1)		Gap dimension	3.5 mm	-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D2)		Offset	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

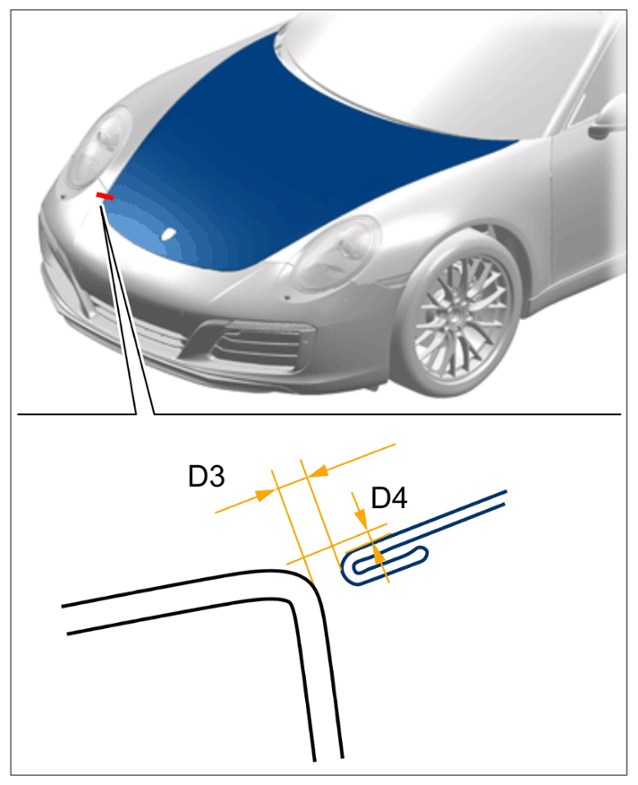

Lid to front apron (D3)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D4)		Offset	0.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

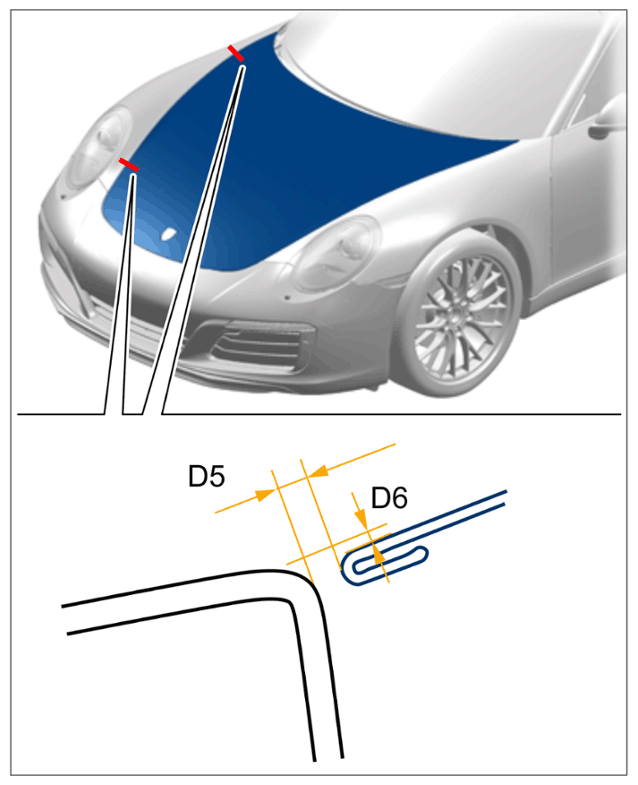

Lid to wing (D5)		Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid

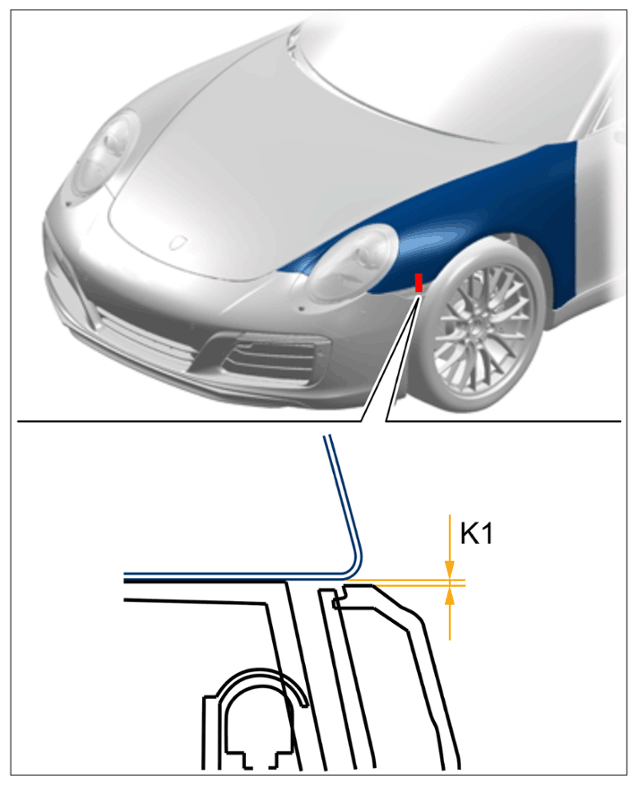

Wing to front apron (K1)	Flasher repeater	Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of wing

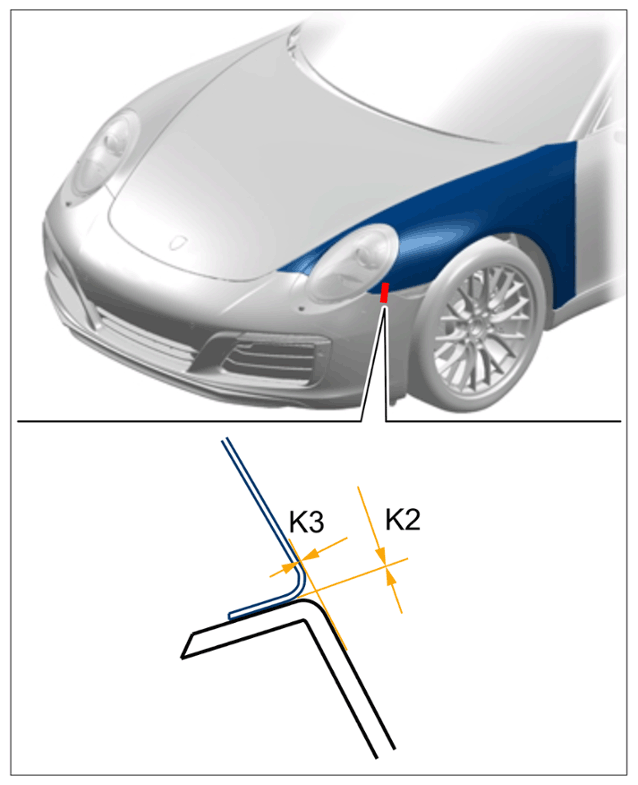

Wing to lid (K2)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of wing
Wing to lid (K3)		Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of wing

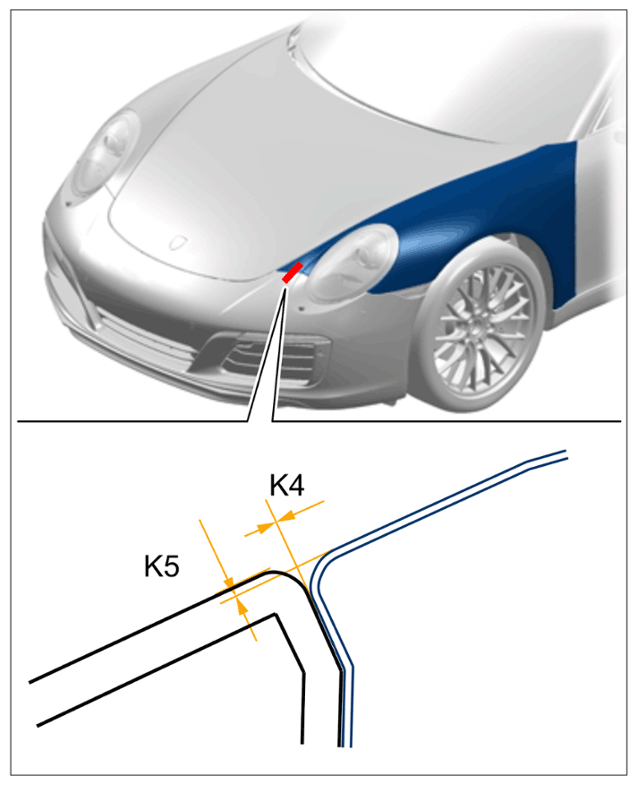

Wing to door (K4)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of wing
Wing to door (K5)		Offset	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of wing

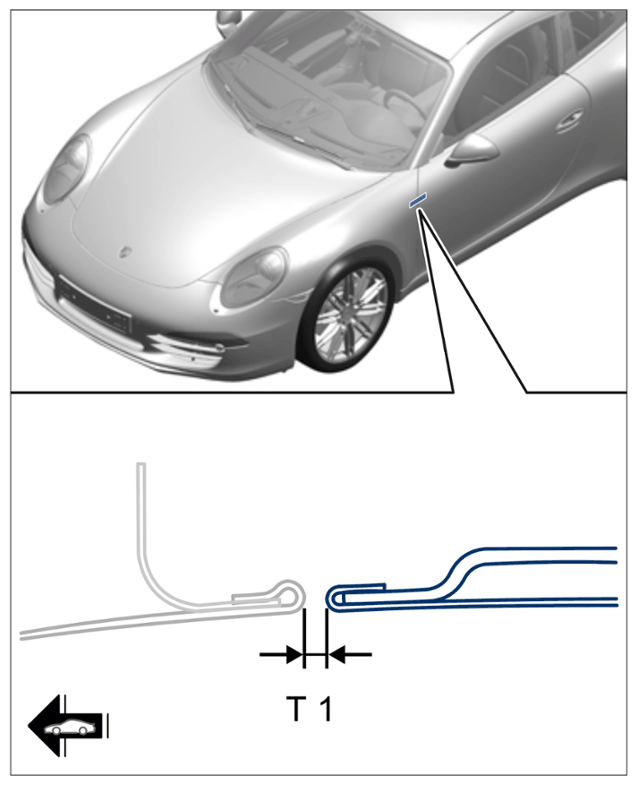

Front door to wing (T1)		Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

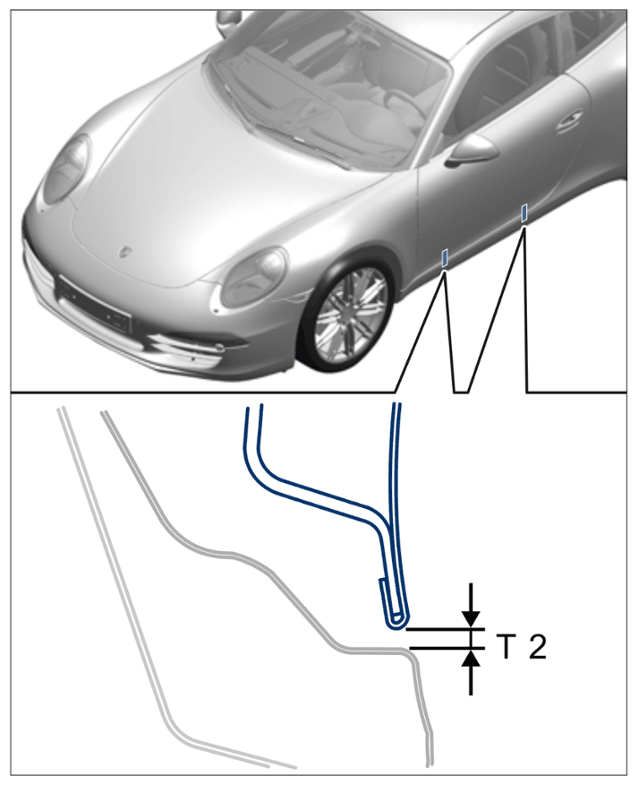

Front door to side panel, bottom (T2)		Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

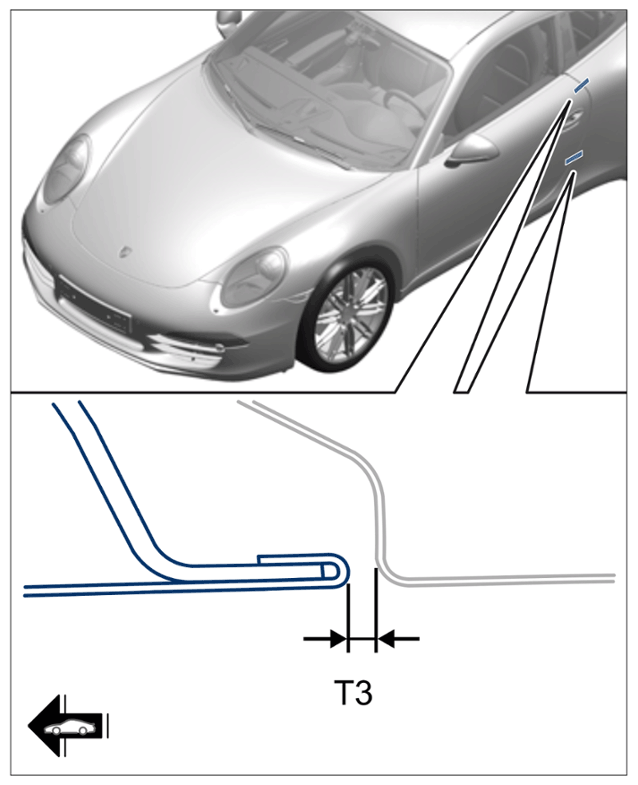

Front door to side panel (T3)		Gap dimension	3.0 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

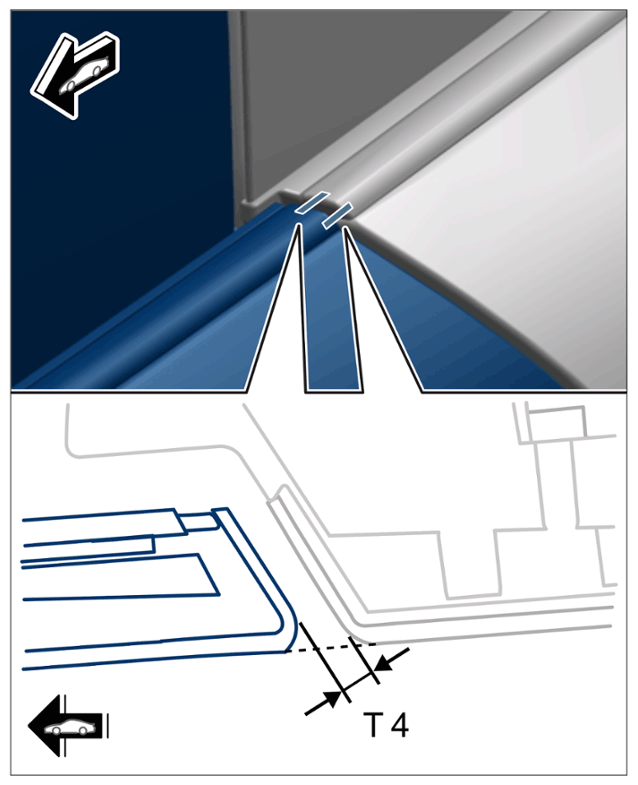

Moulding on front door to moulding on side panel (T4)		Gap dimension	3.3 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front door

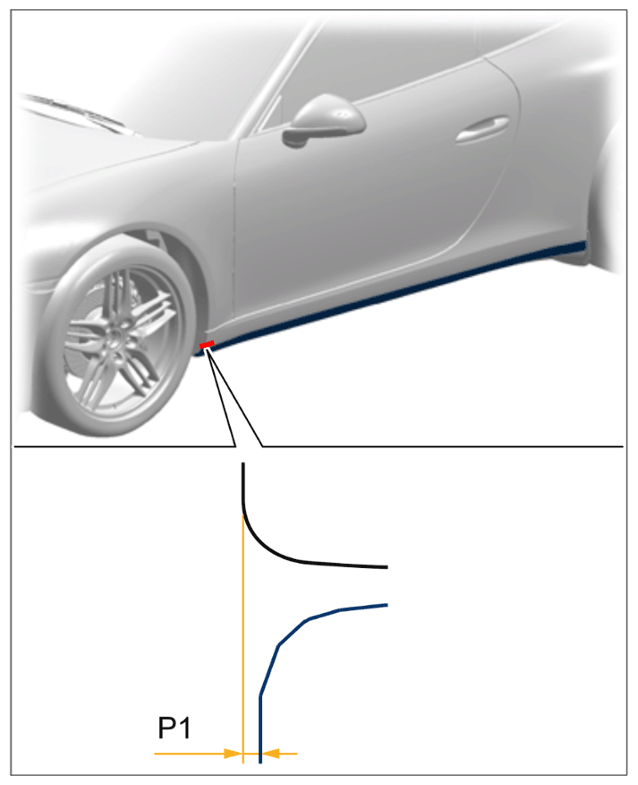

Door entry guard to side panel (P1)		Offset	0.5 mm	+ 0.5 mm,-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door entry guard

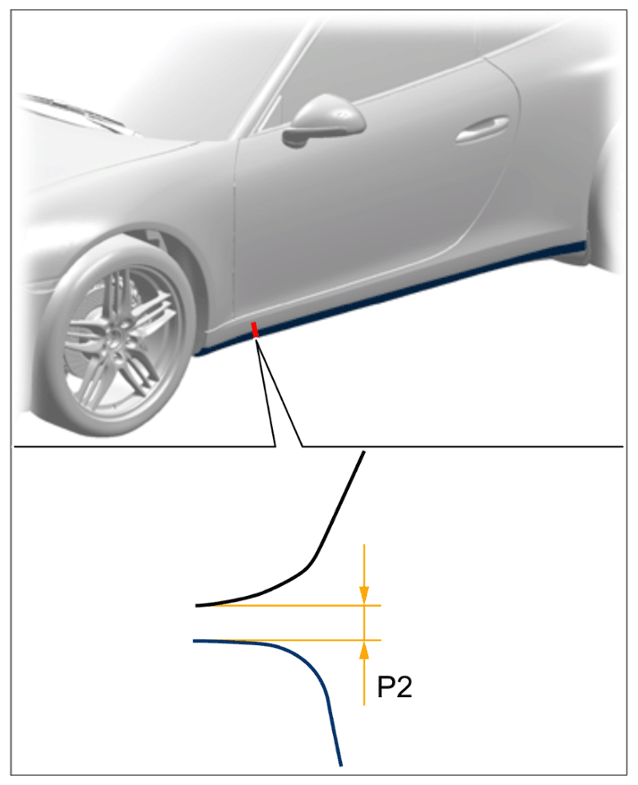

Door entry guard to side panel (P2)		Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door entry guard

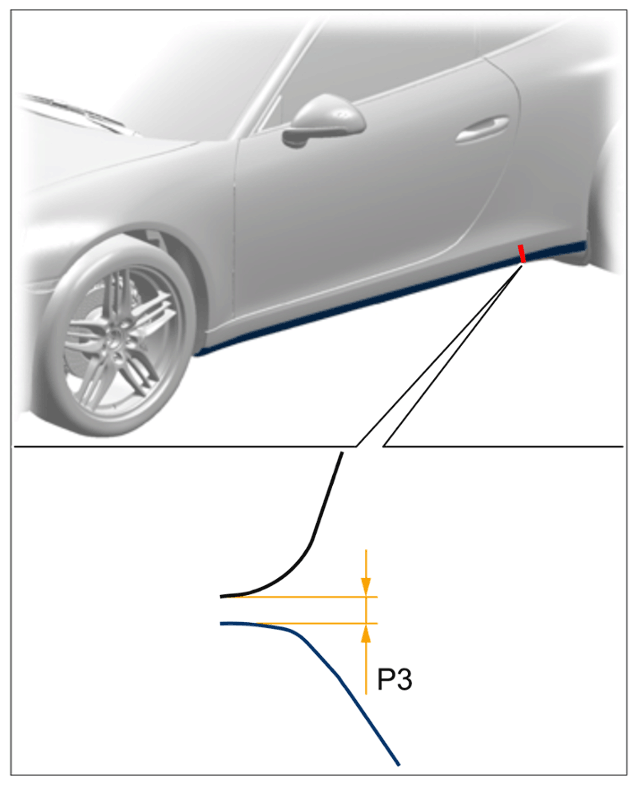

Door entry guard to side panel (P3)		Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door entry guard

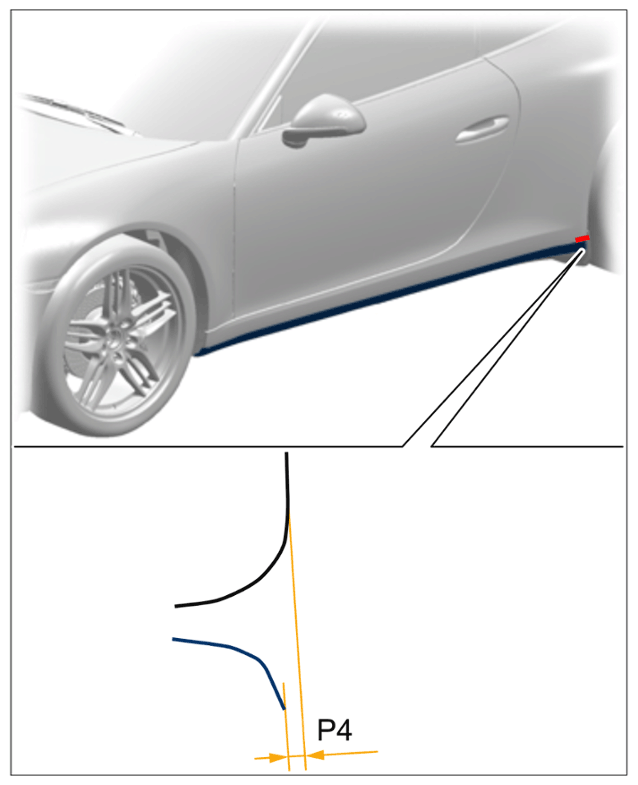

Door entry guard to side panel (P4)		Offset	0.5 mm	+ 0.5 mm,-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of door entry guard

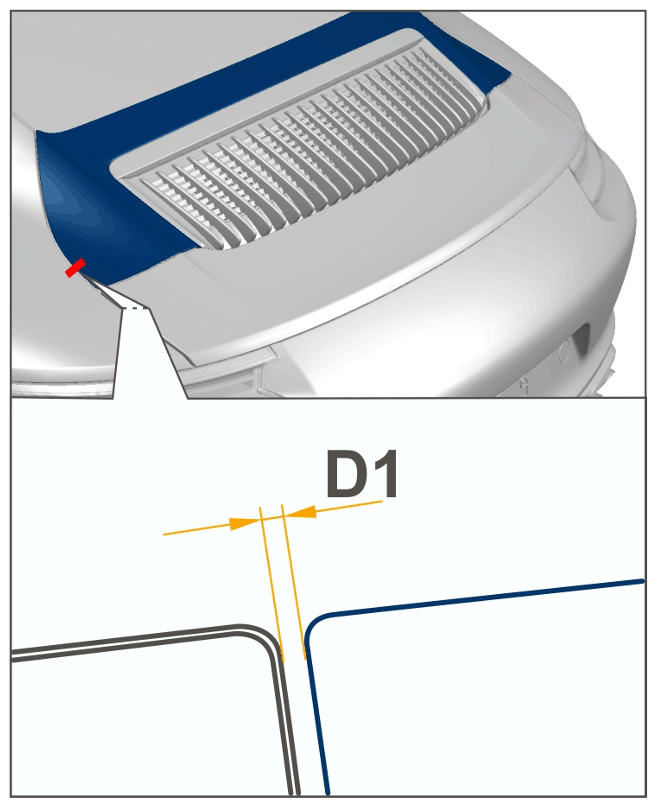

Lid to side panel (D1)		Gap dimension	3 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear lid

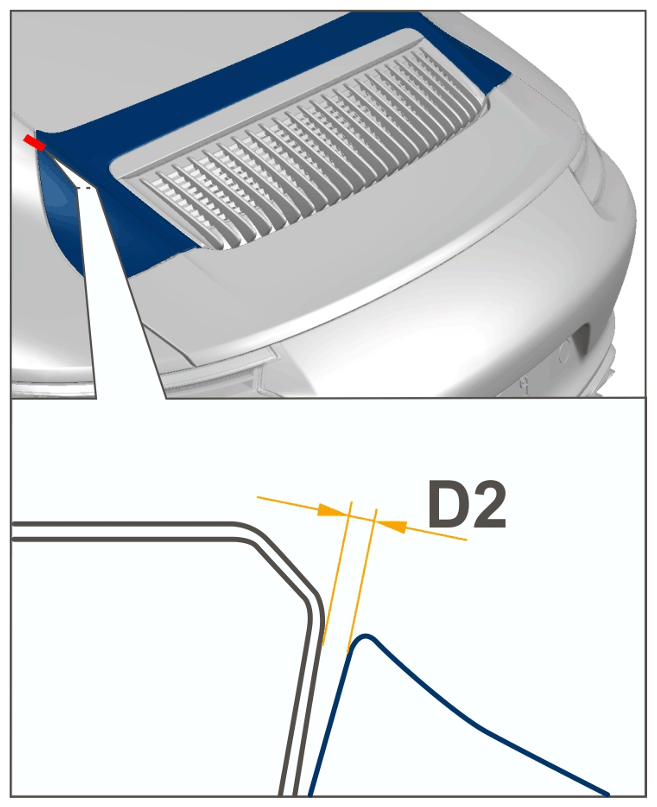

Lid to side panel (D2)		Gap dimension	3 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear lid

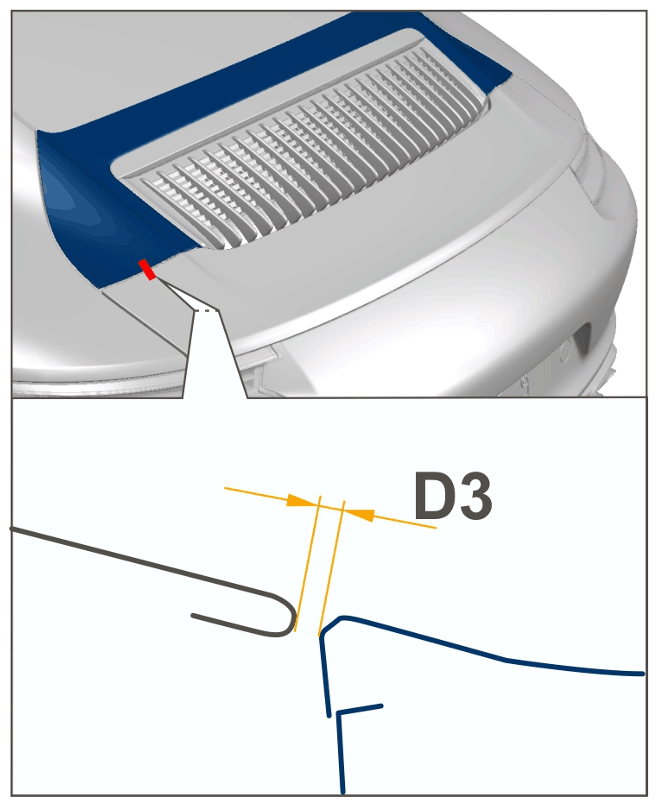

Lid to spoiler (D3)		Gap dimension	3 mm	+ 0.8 mm,-1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear lid

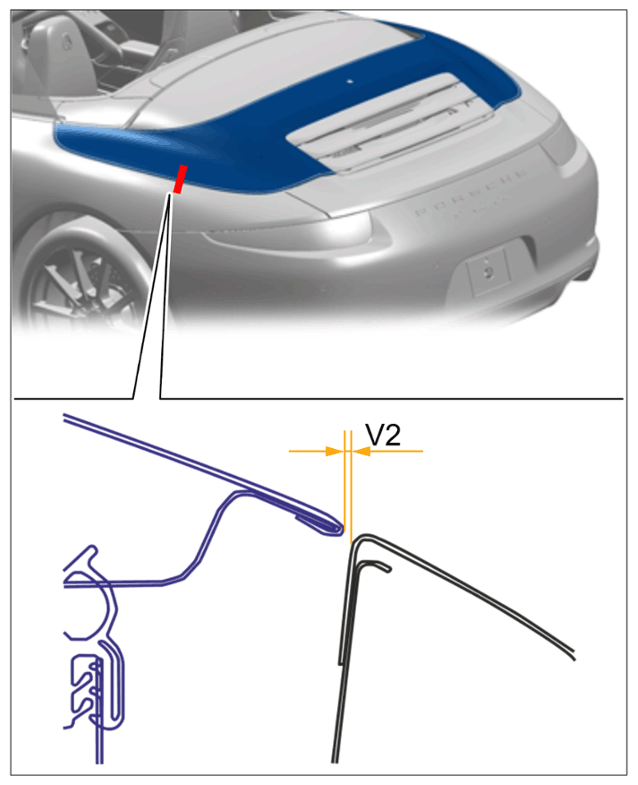

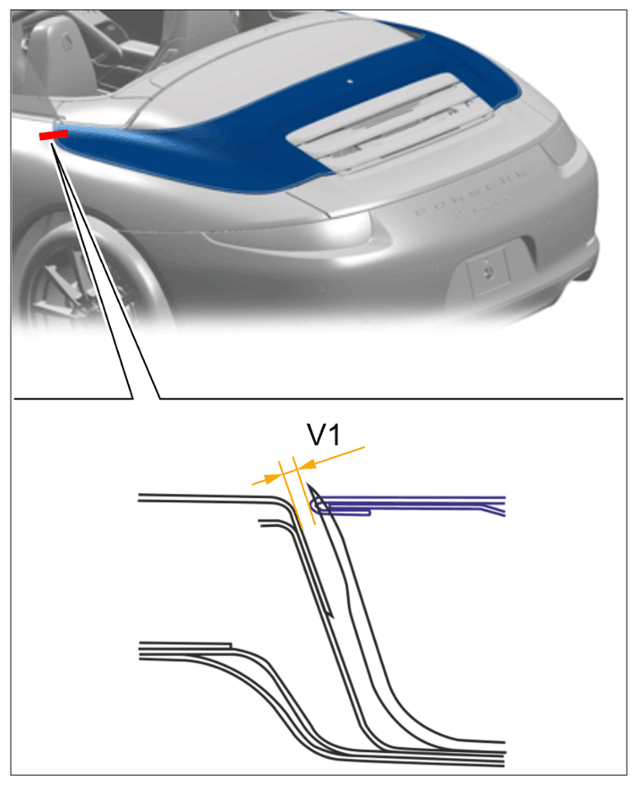

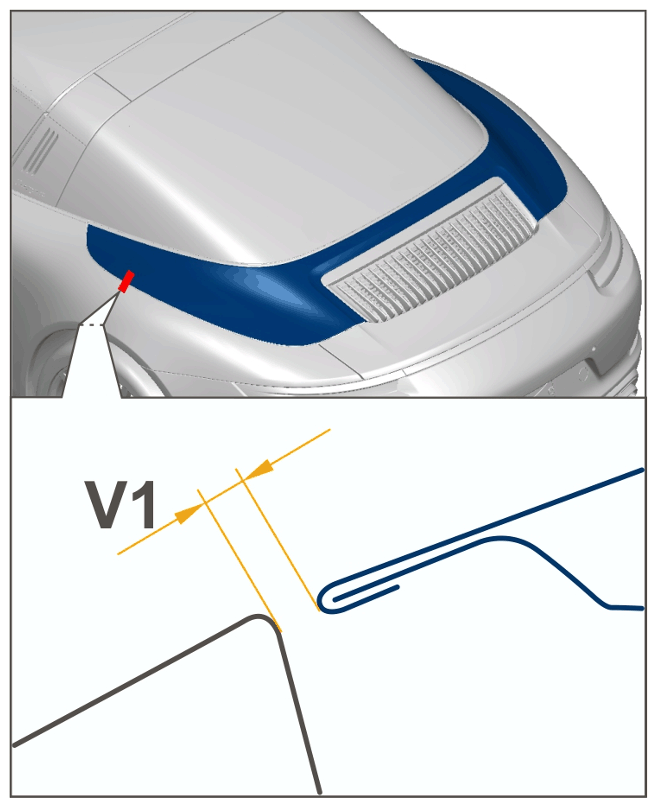

Convertible-top compartment lid to side panel (V1)		Gap dimension	3.7 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid

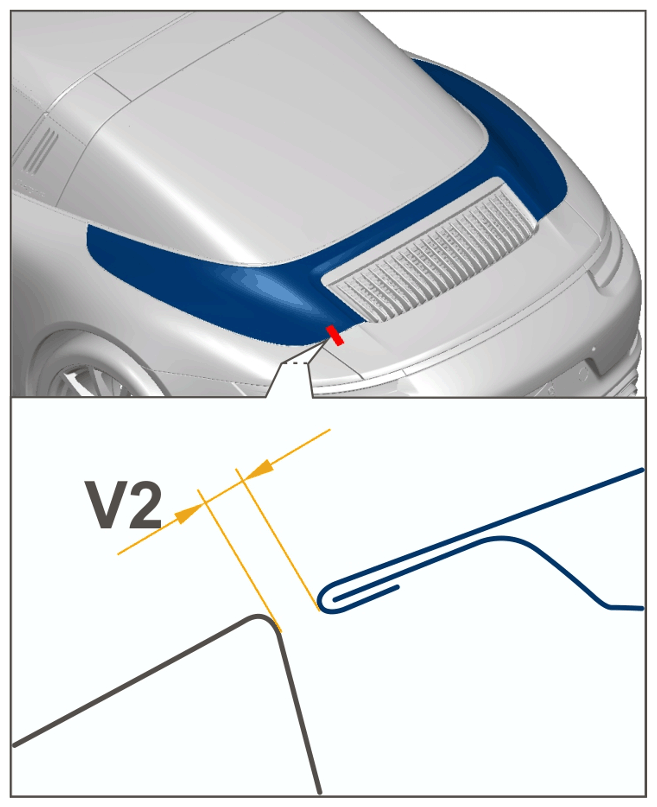

Gap dimension of convertible-top compartment lid (V2)		Gap dimension	3.7 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid
Convertible-top compartment lid to side panel (V1)		Gap dimension	3.7 mm	+ 1 mm,- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid
Convertible-top compartment lid to side panel (V2)		Gap dimension	3.7 mm	+ 1 mm,- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid

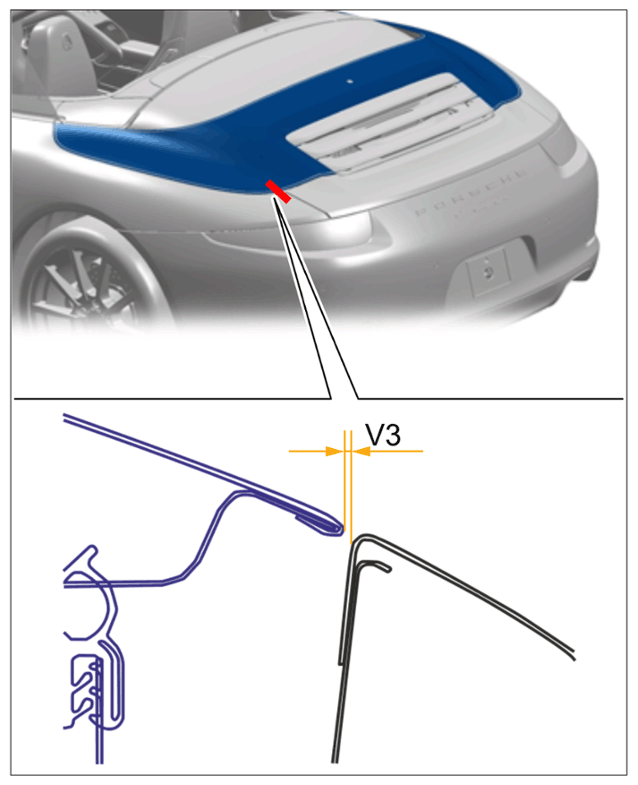

Convertible-top compartment lid to side panel (V3)		Gap dimension	4.1 (3.0 ftlb.) mm	+/-0.8 (0.6 ftlb.) mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid
Convertible-top compartment lid to spoiler (V4)		Gap dimension	4.5 (3.4 ftlb.) mm	+ 1 mm,- 0.5 (0.4 ftlb.) mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of convertible-top compartment lid

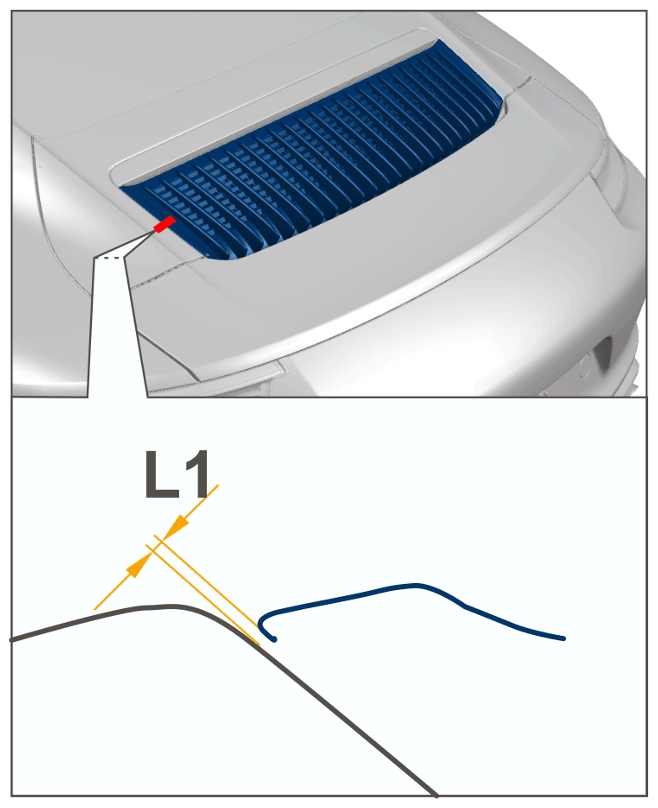

Air intake grille to lid (L1)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille

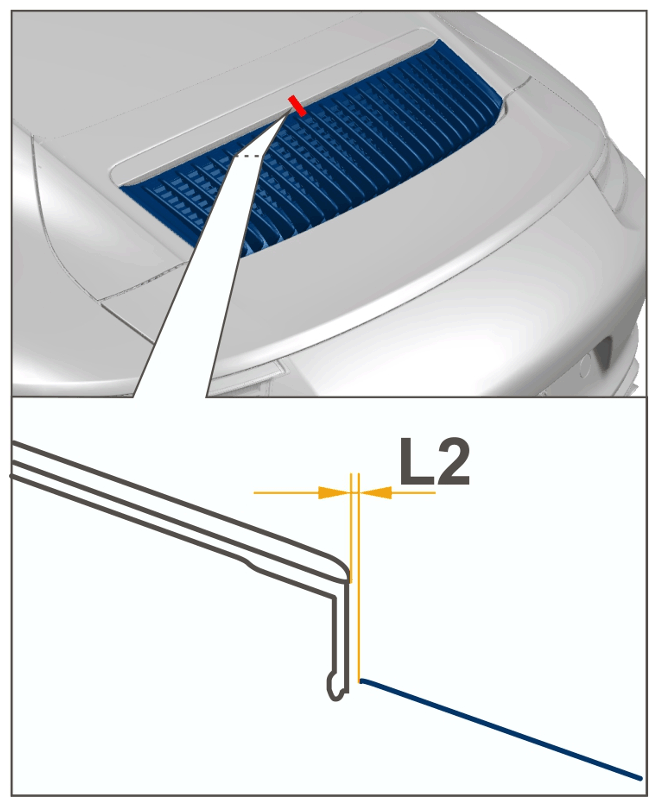

Air intake grille to air intake grille trim (L2)		Gap dimension	1.1 mm	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille

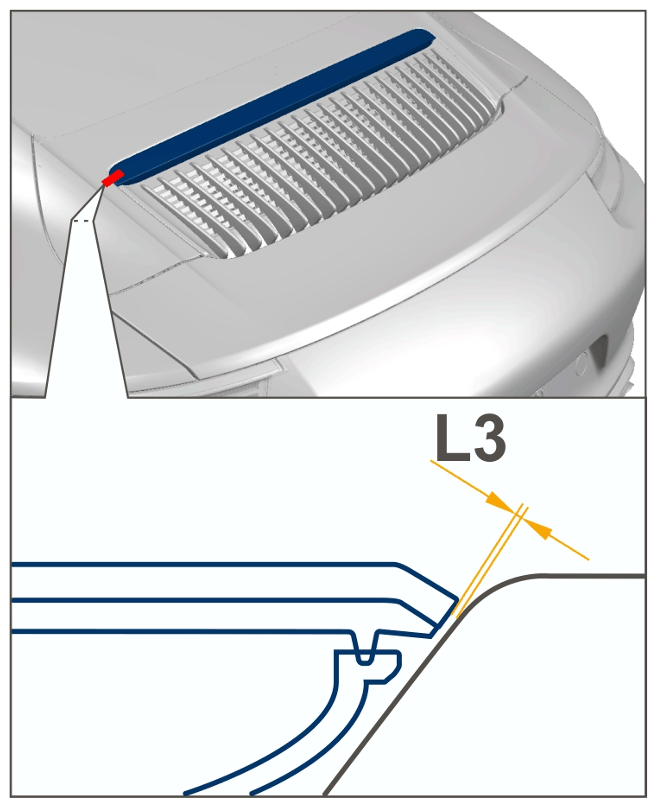

Air intake grille trim to lid (L3)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille trim

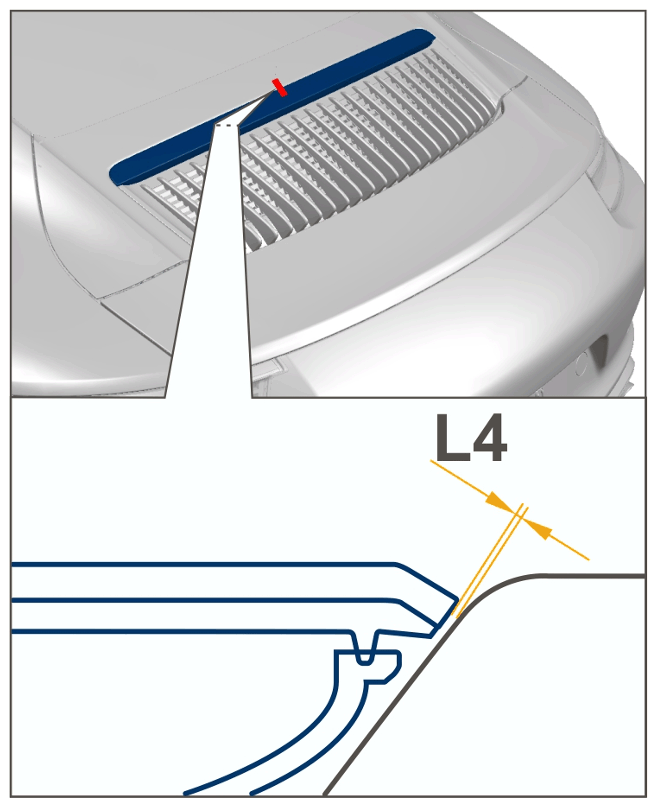

Air intake grille trim to lid (L4)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of lid to air intake grille trim

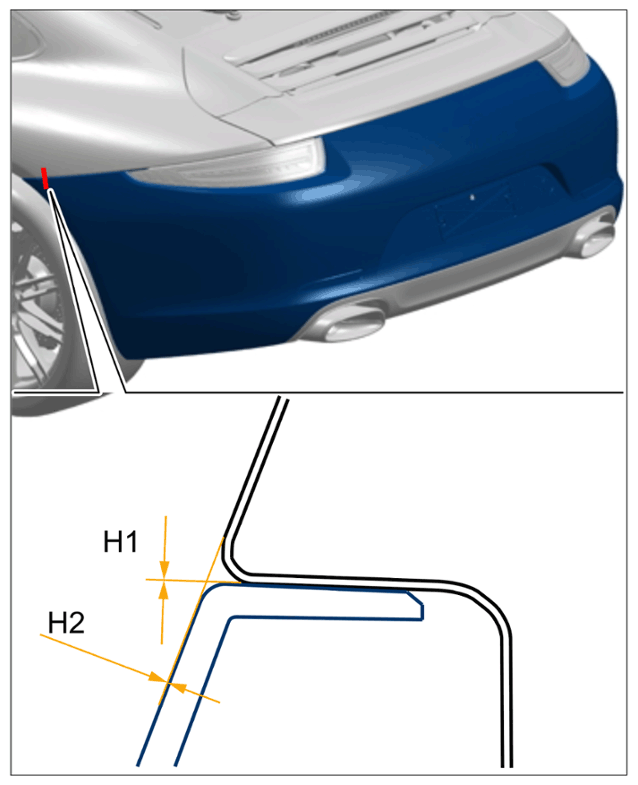

Rear apron to side panel (H1)		Gap dimension	0 mm	+ 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron
Rear apron to side panel (H2)		Offset	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron

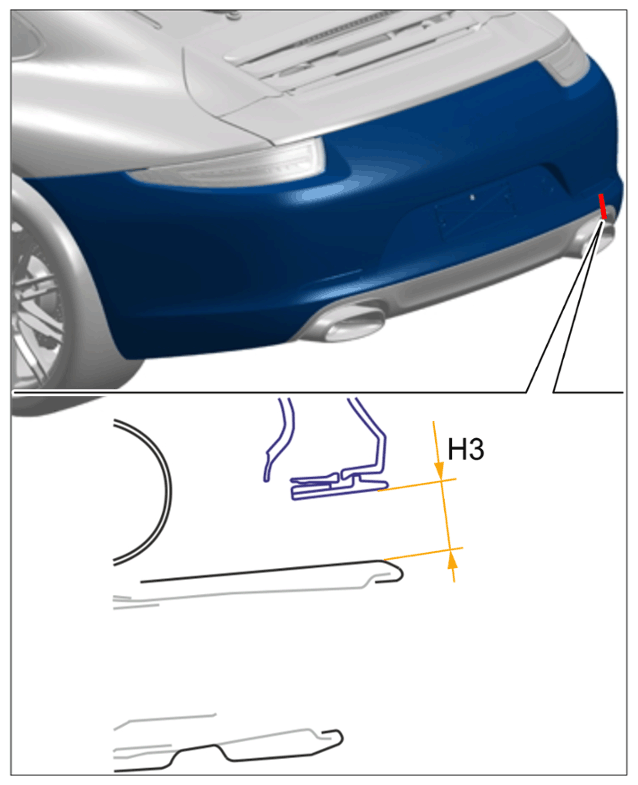

Rear apron to tailpipe (H3)		Gap dimension	20 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of rear apron

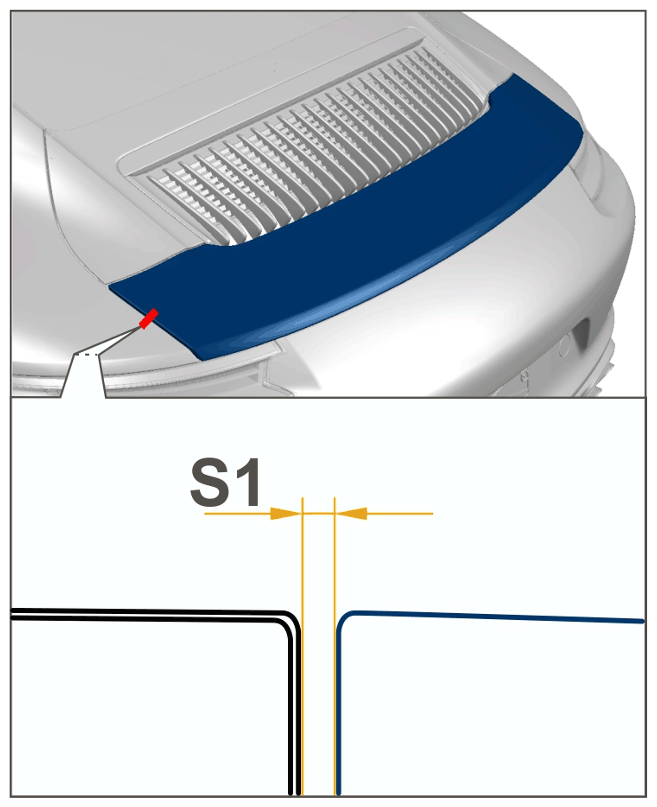

Spoiler to side panel (S1)		Gap dimension	3 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of spoiler

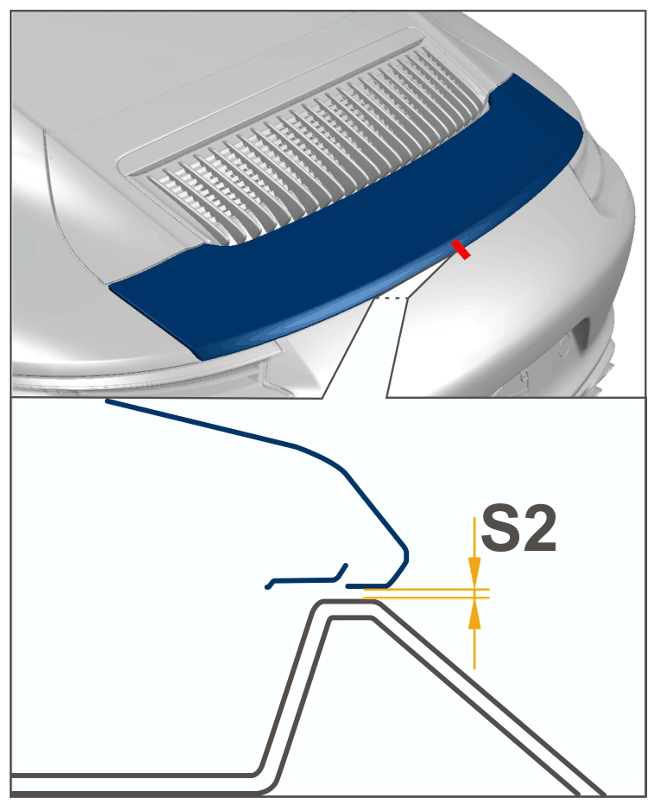

Spoiler to rear apron (S2)		Gap dimension	3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of spoiler

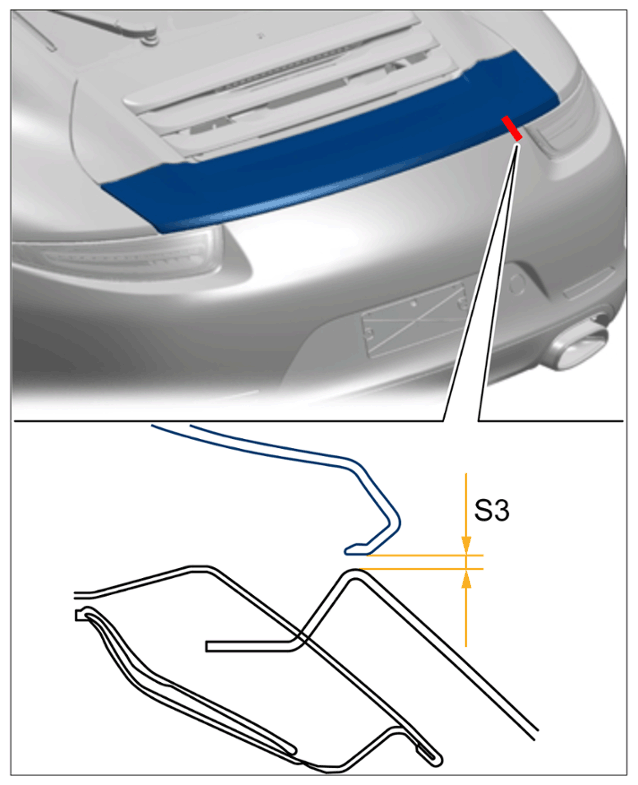

Spoiler to rear apron (S3)		Gap dimension	3.5 mm	+ 1 mm,- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of spoiler

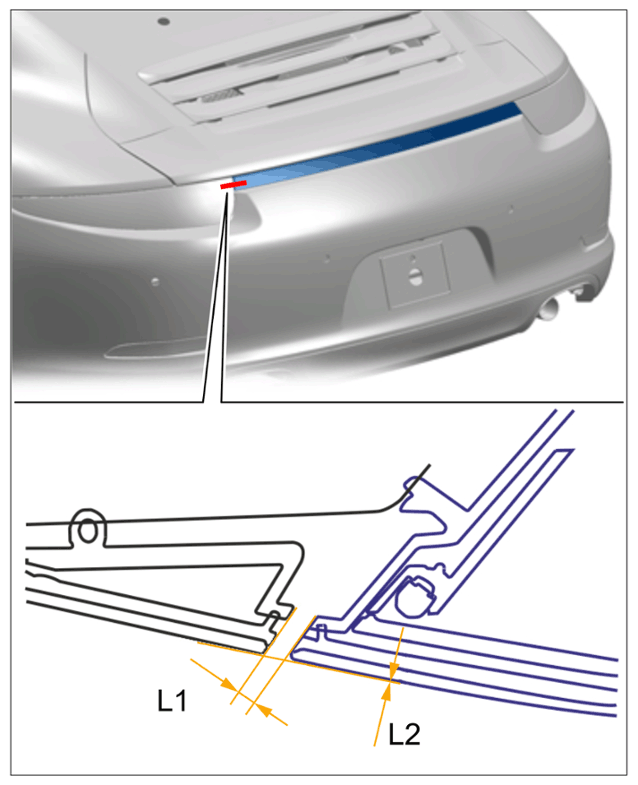

Light panel to tail light (L1)		Gap dimension	2 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel
Light panel to tail light (L2)		Offset	0 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel

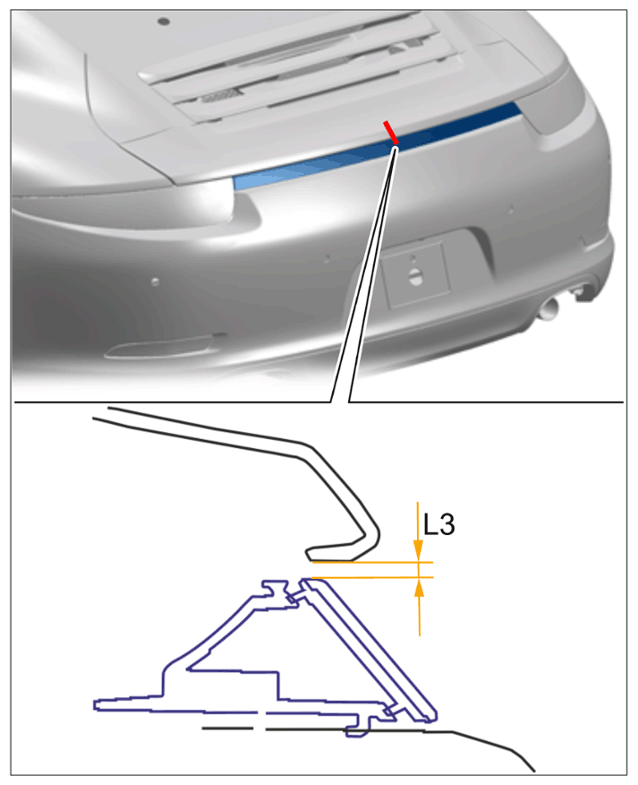

Light panel to spoiler (L3)		Gap dimension	3.9 mm	+ 0.9 mm, -1.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel

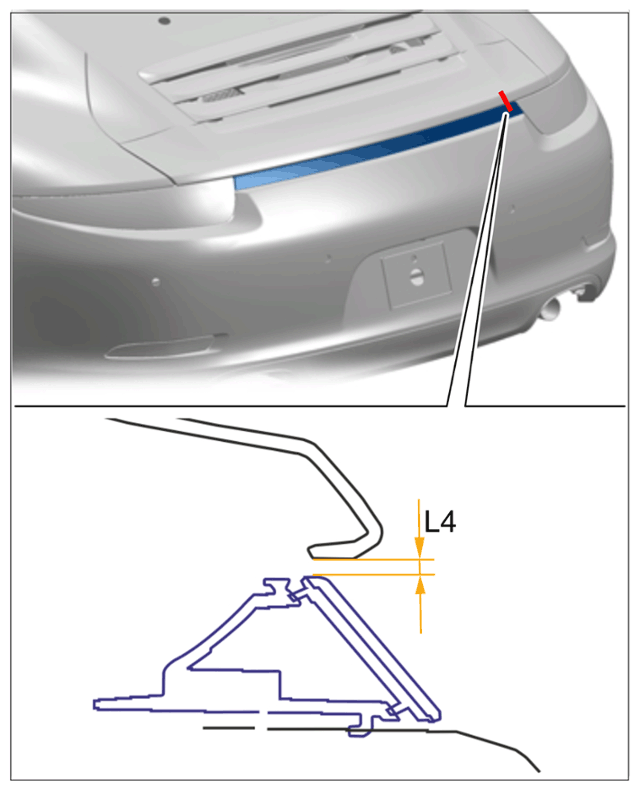

Light panel to spoiler (L4)		Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of light panel
