Gap Dimensions Of Tail Lights

Location	Type	Basic value	Tolerance

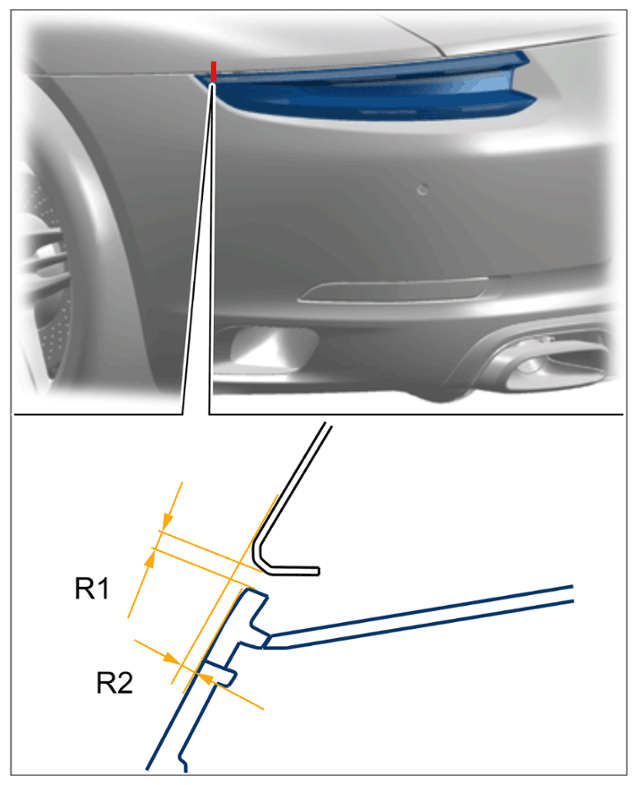

Tail light to side panel (R1)	Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light
Tail light to side panel (R2)	Offset	1.7 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

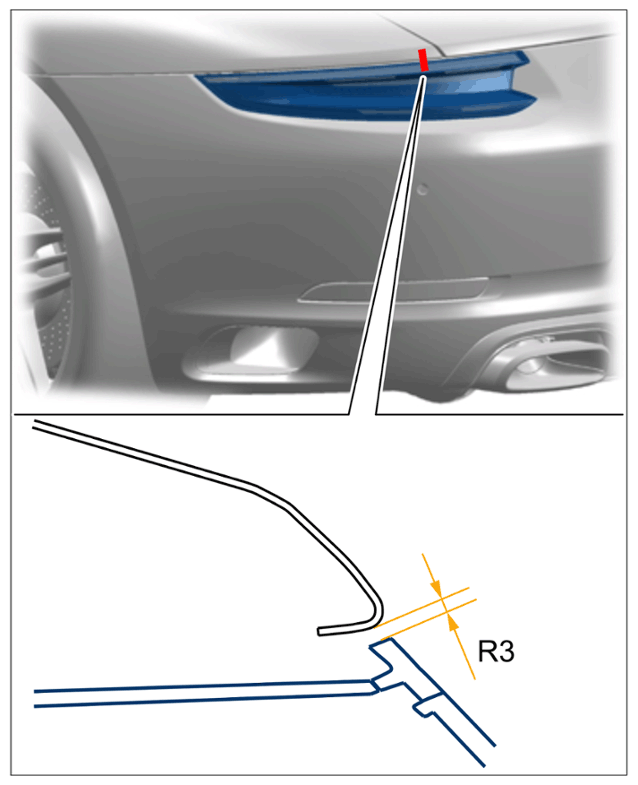

Tail light to side panel (R3)	Gap dimension	3.5 mm	+ 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

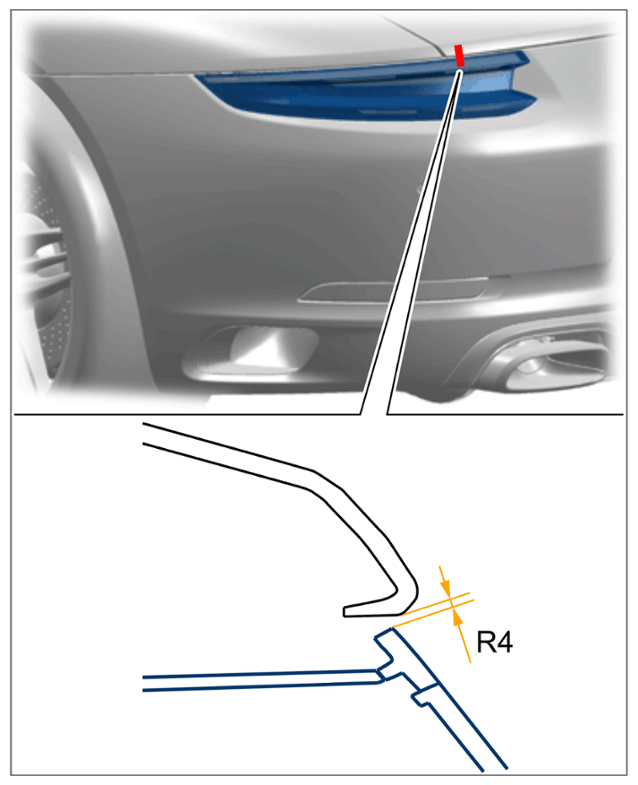

Tail light to spoiler (R4)	Gap dimension	3.5 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

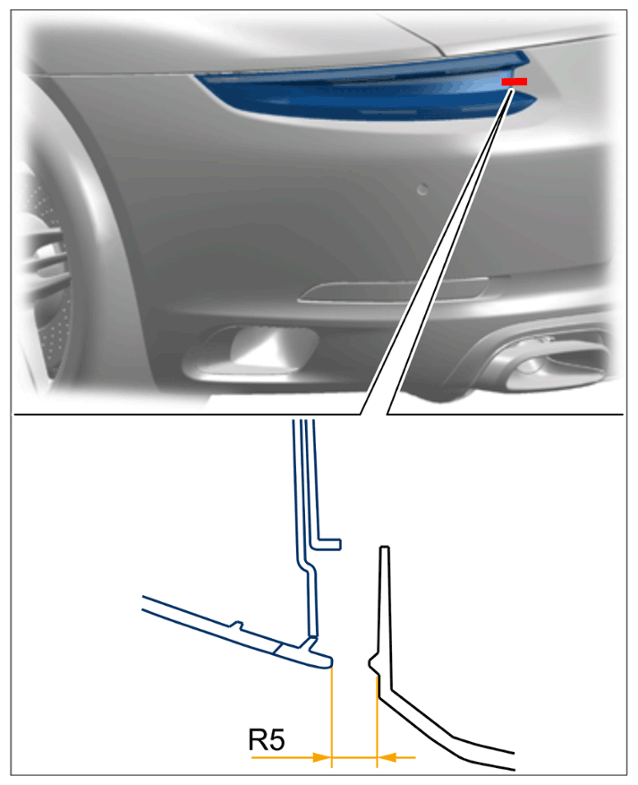

Tail light to rear apron (R5)	Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

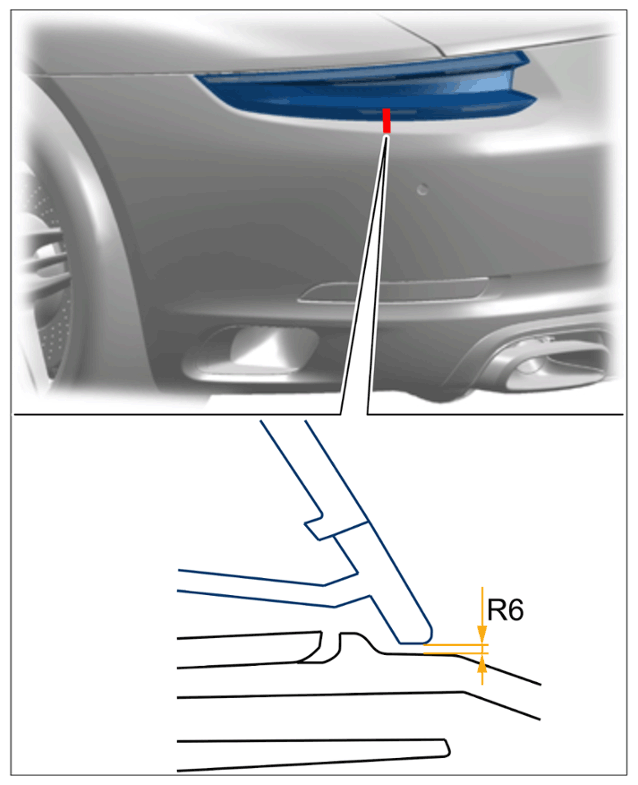

Tail light to rear apron (R6)	Gap dimension	2 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light

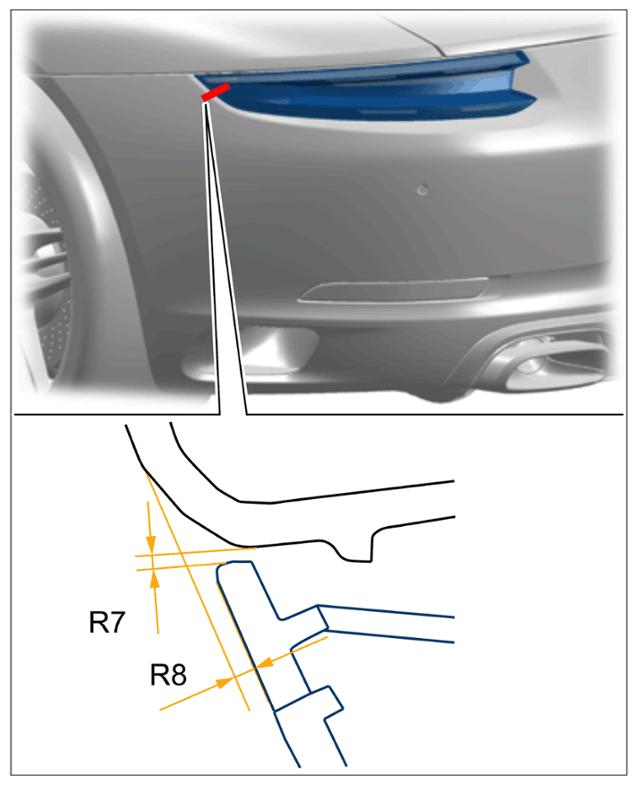

Tail light to rear apron (R7)	Gap dimension	2.8 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light
Tail light to rear apron (R8)	Offset	1.7 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of tail light
