Gap Dimensions Of Main Headlights

Location	Type	Basic value	Tolerance

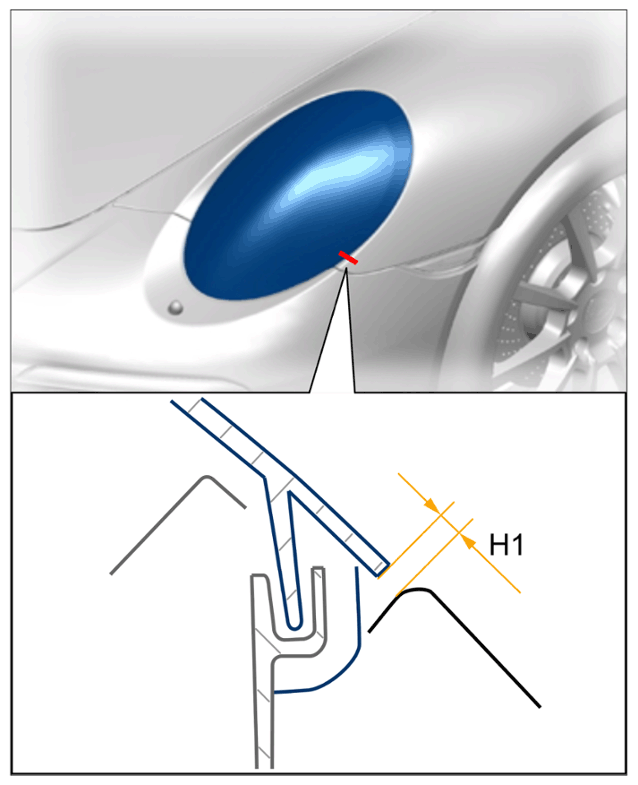

Main headlight towing (H1)	Gap dimension	3 mm	+/-0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

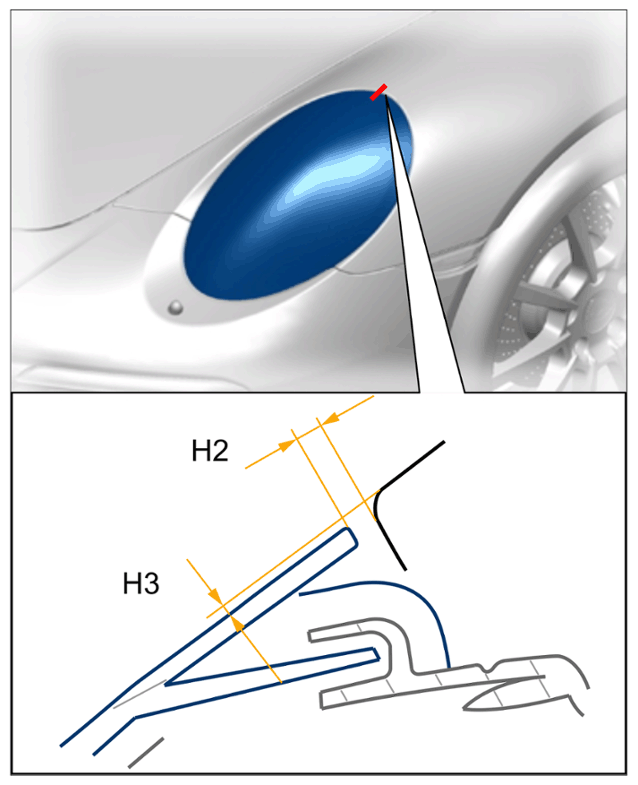

Main headlight towing (H2)	Gap dimension	3 mm	+/-0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights
Main headlight to wing (H3)	Offset	1 mm	+/-0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

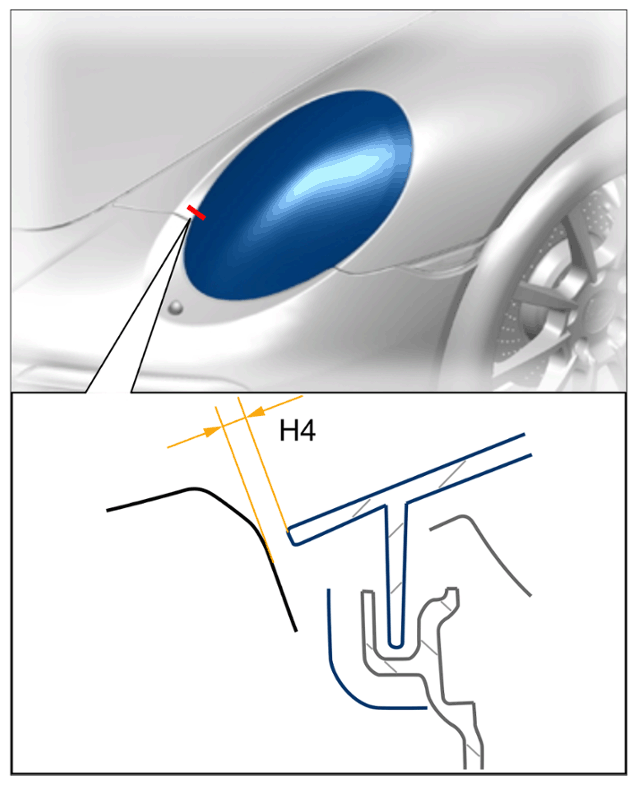

Main headlight to wing (H4)	Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights

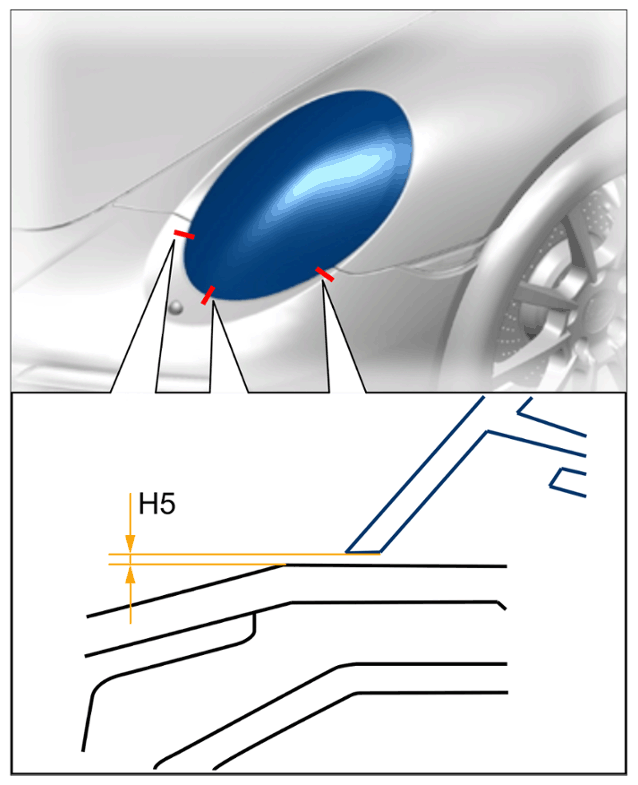

Main headlight to front apron (H5)	Gap dimension	3 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of main headlights
