Gap Dimensions Of Front Door
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

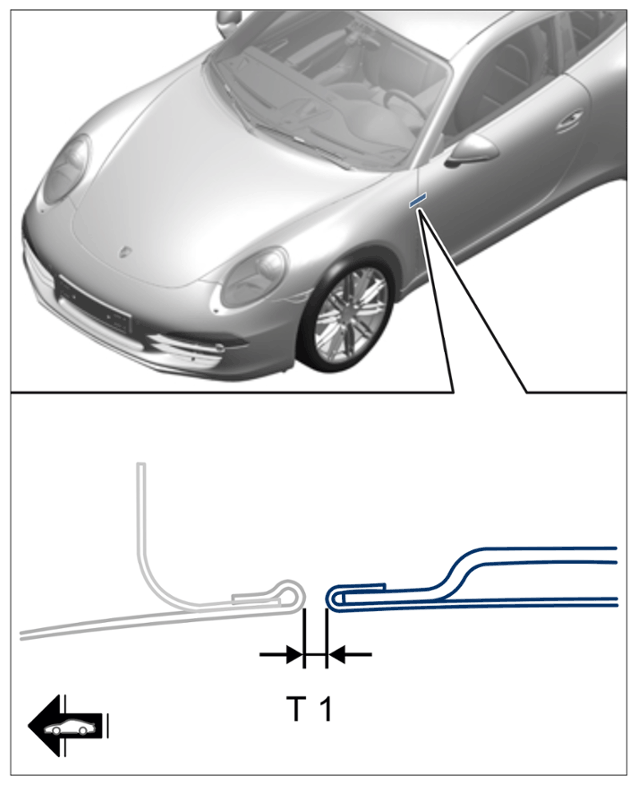

| Front door to wing (T1) | Gap dimension | 3.5 mm | +/-0.8 mm | |
|
Gap dimension of front door |
||||

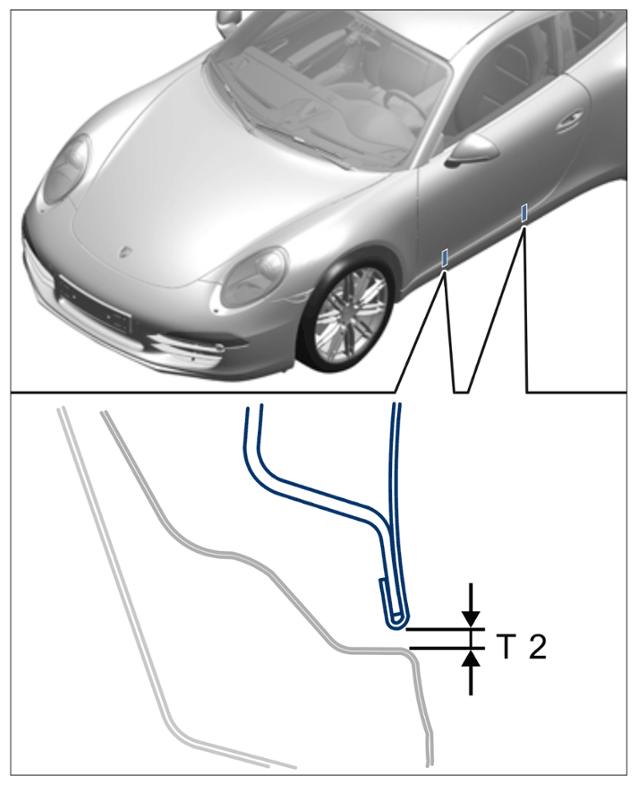

| Front door to side panel, bottom (T2) | Gap dimension | 3.5 mm | +/-0.8 mm | |
|
Gap dimension of front door |
||||

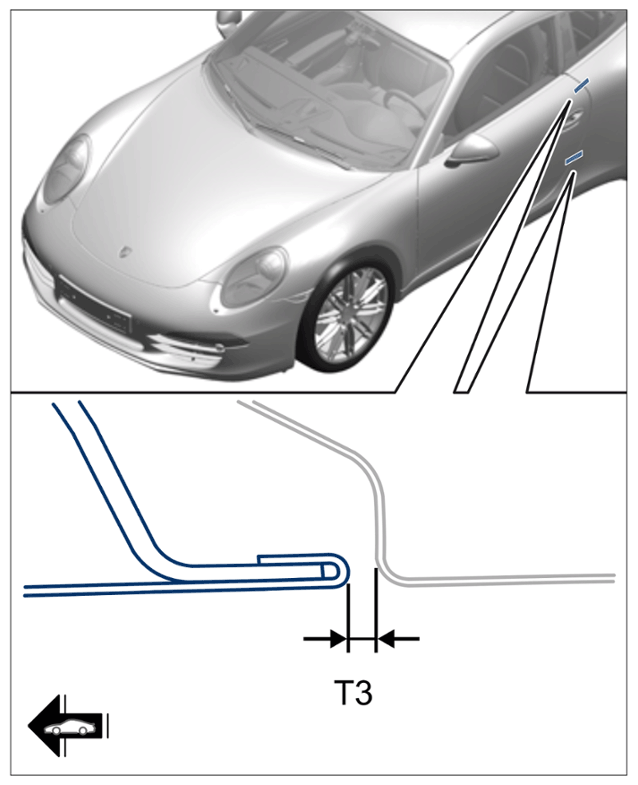

| Front door to side panel (T3) | Gap dimension | 3.0 mm | +/-0.8 mm | |
|
Gap dimension of front door |
||||

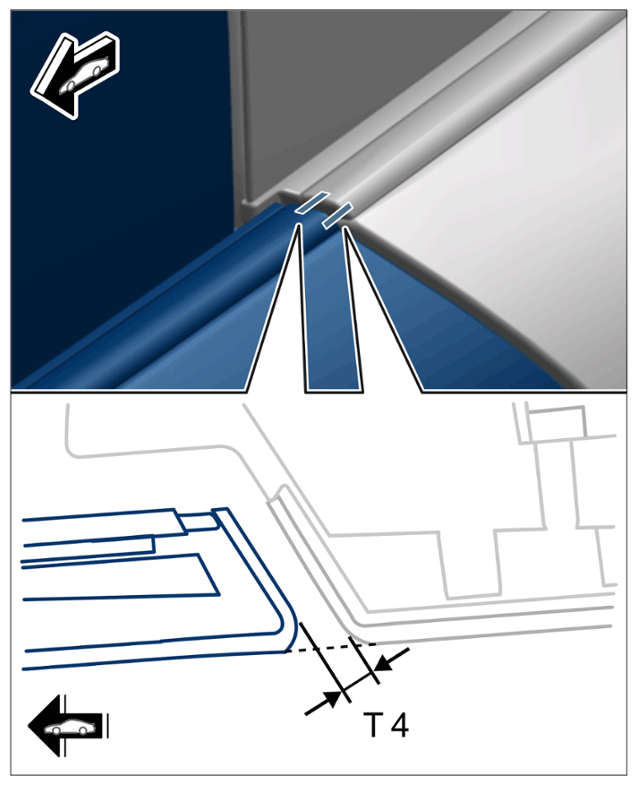

| Moulding on front door to moulding on side panel (T4) | Gap dimension | 3.3 mm | +/-0.8 mm | |
|
Gap dimension of front door |
