Gap Dimensions Of Door Entry Guard
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

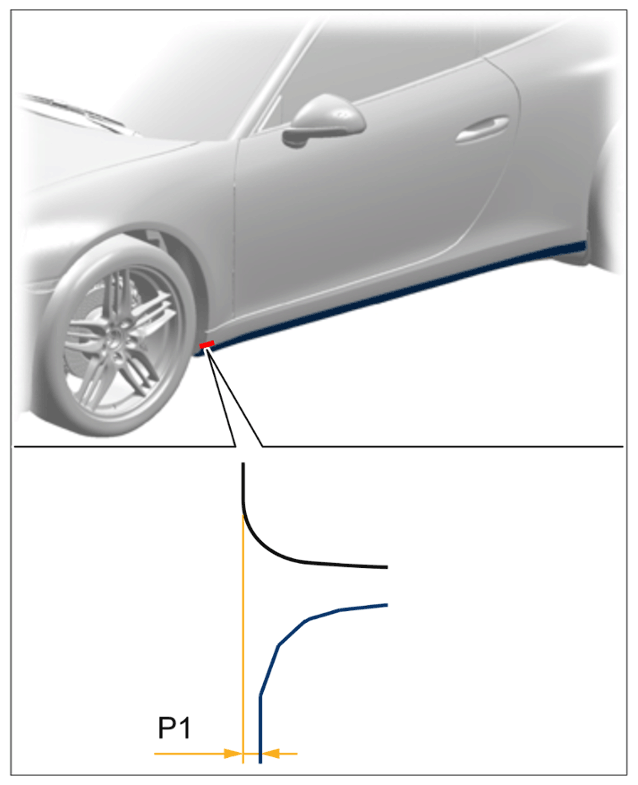

| Door entry guard to side panel (P1) | Offset | 0.5 mm | + 0.5 mm -0.8 mm | |
|
Gap dimension of door entry guard |
||||

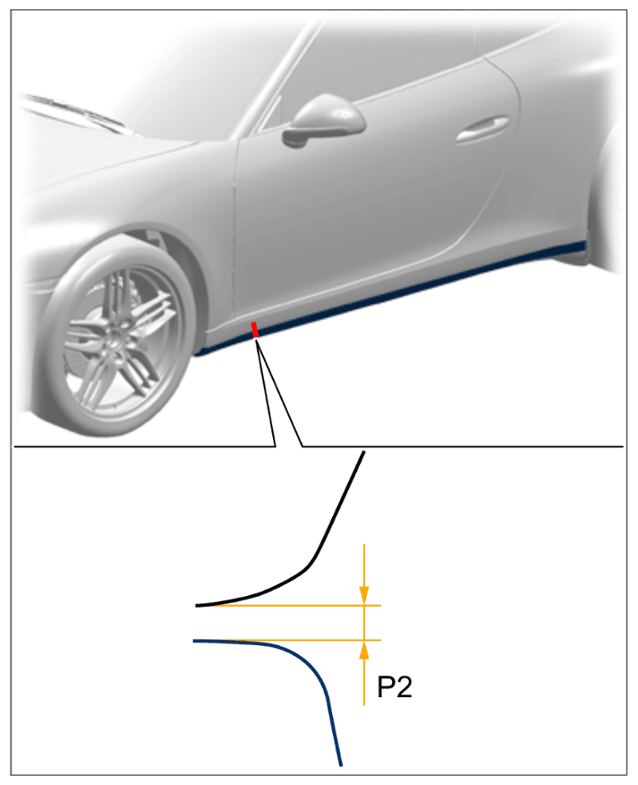

| Door entry guard to side panel (P2) | Gap dimension | 1 mm | +/- 0.5 mm | |
|
Gap dimension of door entry guard |
||||

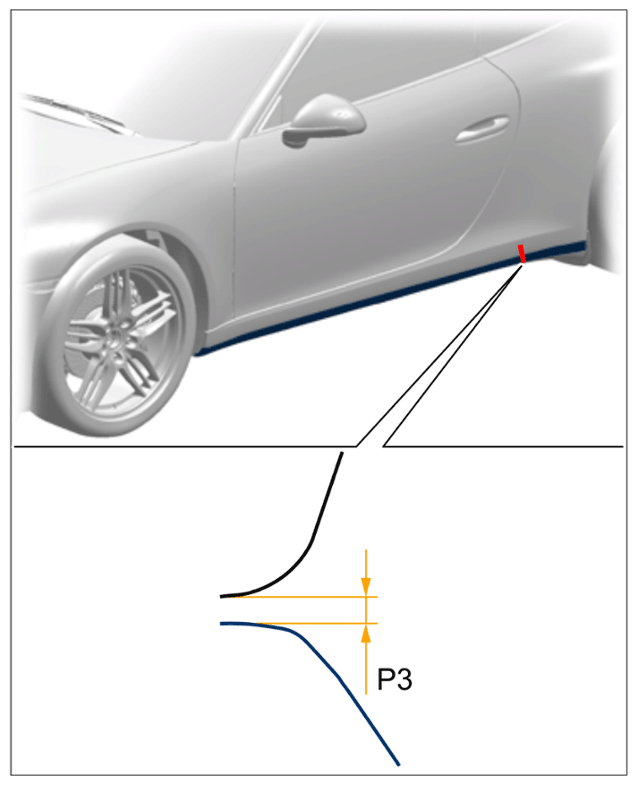

| Door entry guard to side panel (P3) | Gap dimension | 1 mm | +/- 0.5 mm | |
|
Gap dimension of door entry guard |
||||

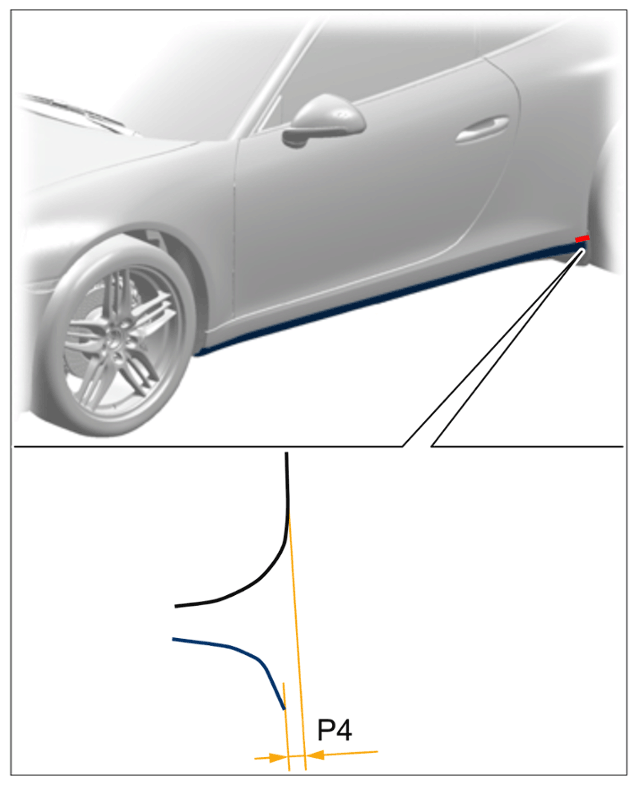

| Door entry guard to side panel (P4) | Offset | 0.5 mm | + 0.5 mm -0.8 mm | |
|
Gap dimension of door entry guard |
