Gap Dimensions Of Front Lid

Location	Type	Basic value	Tolerance

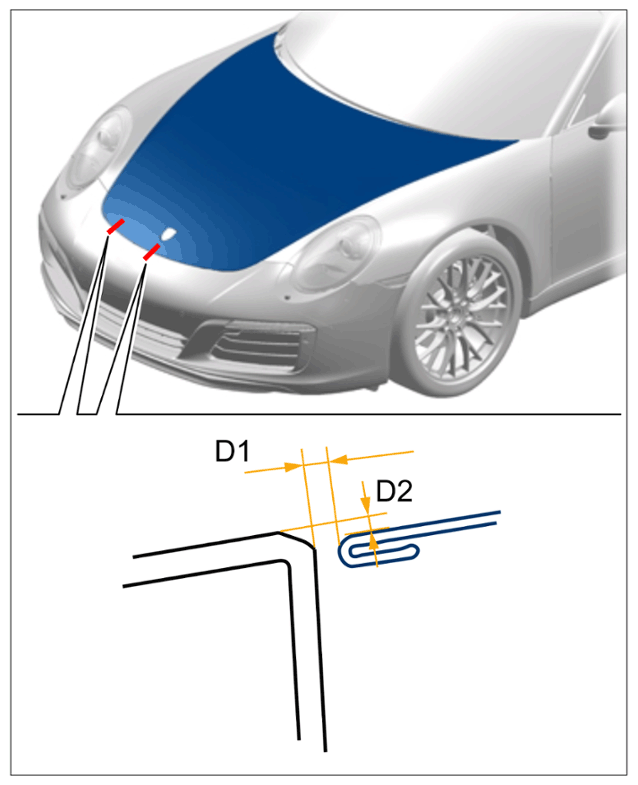

Lid to front apron (D1)	Gap dimension	3.5 mm	- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lie
Lid to front apron (D2)	Offset	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lie

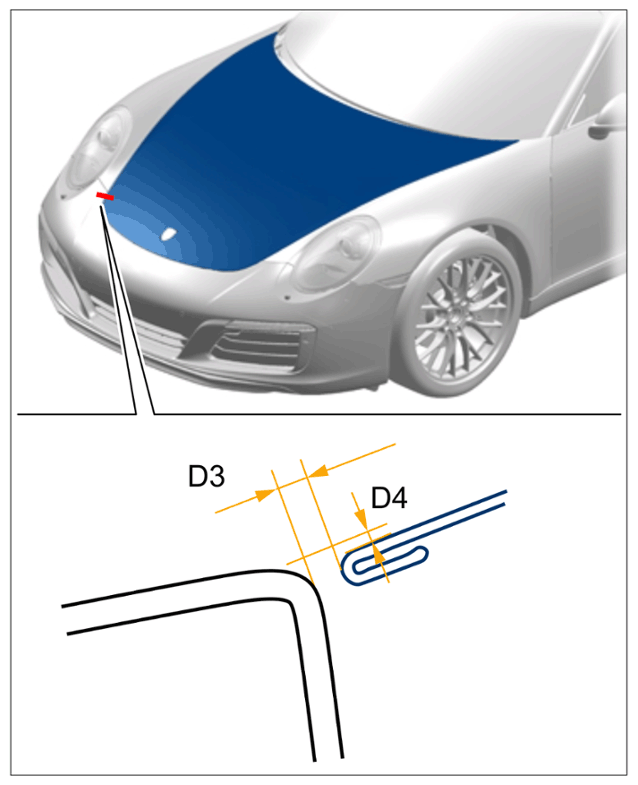

Lid to front apron (D3)	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lid
Lid to front apron (D4)	Offset	0.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front Ik

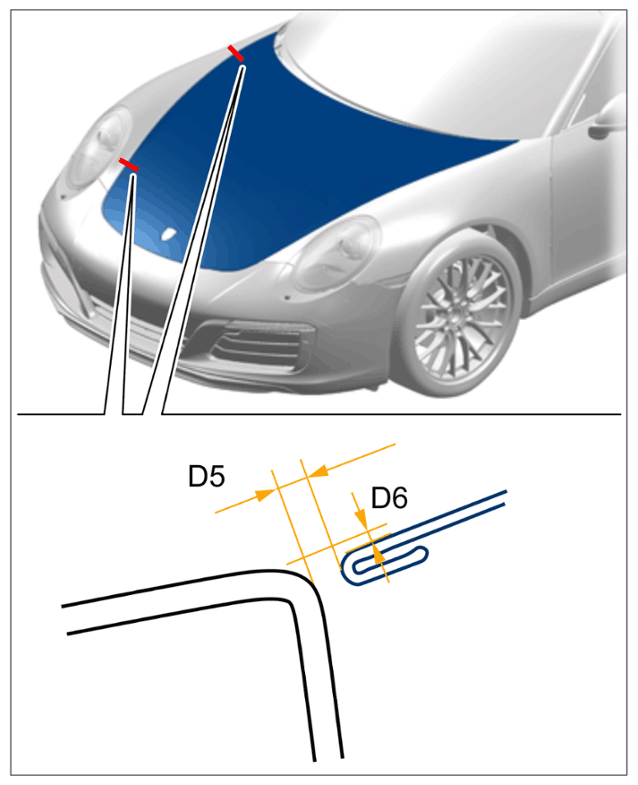

Lid to wing (D5)	Gap dimension	3.5 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front lie
Lid towing (D6)	Offset	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension of front Ik
