WM, 5X00IN26 Replacing Coarse Threaded Bolts: Notes

PARTS DESCRIPTION

Part number	Description	Addition	Quantity
99919034201	BOLT 999.190.342.01
99919050101	BOLT 999.190.501.01

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

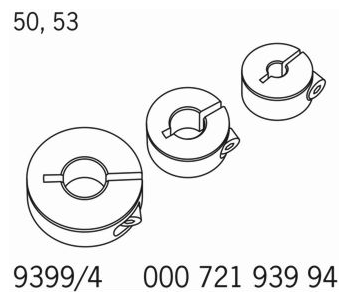

Set of setting collars	Special tool	9399/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

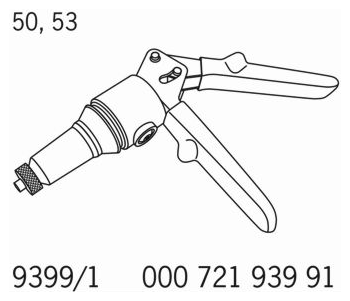

Riveting tool for ground pins	Special tool	9399/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

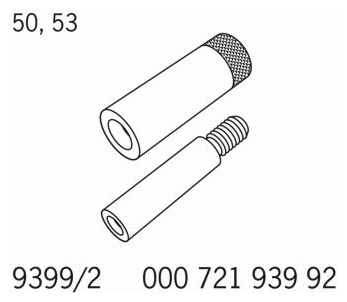

Threaded mandrel + mouth piece	Special tool	9399/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Drilling depth	X	Length	3.0 mm

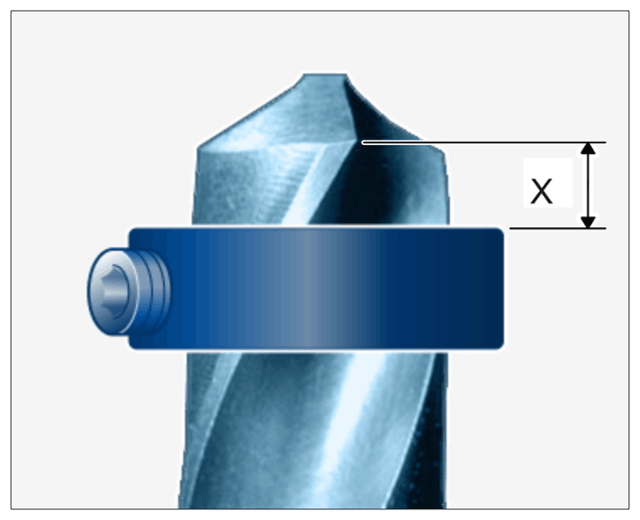

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drilling depth
Drill bit		Diameter	4.0 mm
Drill bit		Diameter	7.0 mm
Drill bit		Diameter	9.0 mm
