WM, 5X00IN05 Information On Aluminium Repairs: Notes

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

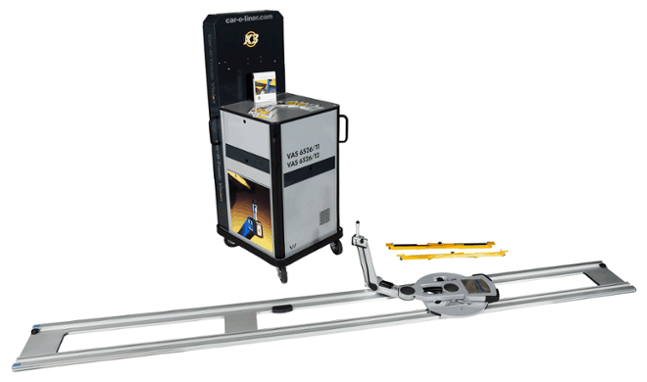

Measuring Unit, Professional	Vehicle-specific workshop equipment	VAS 6526/11	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
VAS 6526/11 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system	Vehicle-specific workshop equipment	VAS811019	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
VAS 811 019 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium Tool Set with Trolley	General workshop equipment	V.A.G 2010/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
V.A.G 2010/2 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Dimensional deviation		Nominal value	0 mm	+/- 2 mm
Nominal value 0 mm +/- 2 mm
