Technical Values: Wing

Location	Descriptor	Type	Basic value	Tolerance

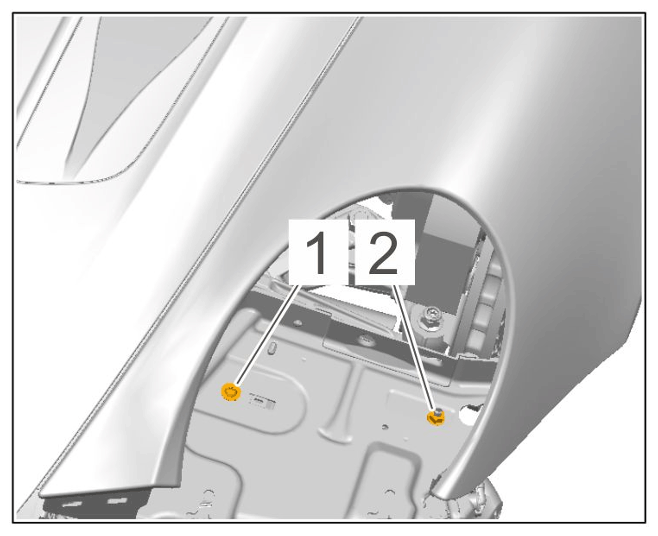

Screw for wing retainer plate at headlight mounting point	Item 1	Tightening torque	5.5 N.m (4 ft.lb)	+ 10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw
Nut for wing retainer plate at headlight mounting point	Item 2	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw

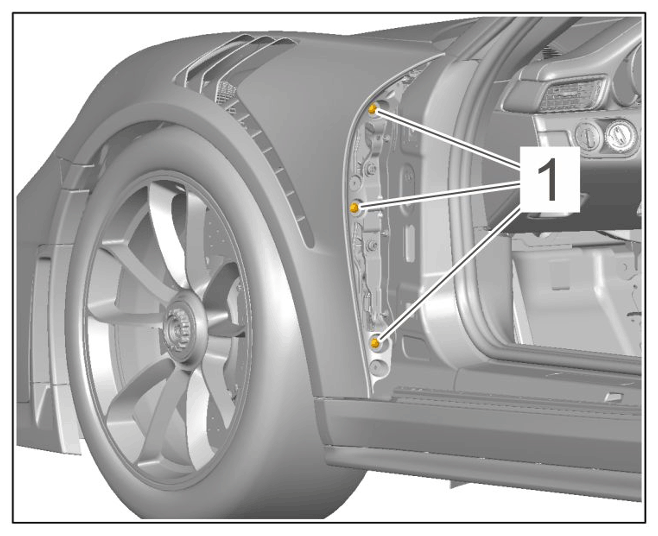

Screws securing wing to retaining frame	Item 1	Tightening torque	5.5 Nm (4 ft.lb)	+ 10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, rear

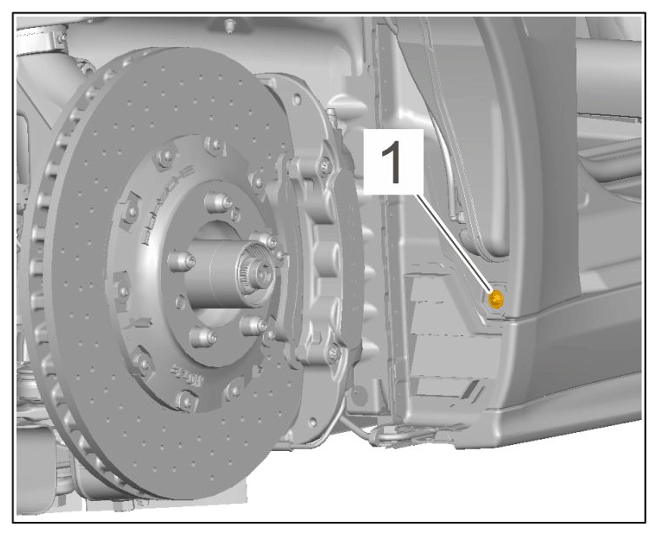

Wing screw, bottom	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10% - 15%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw

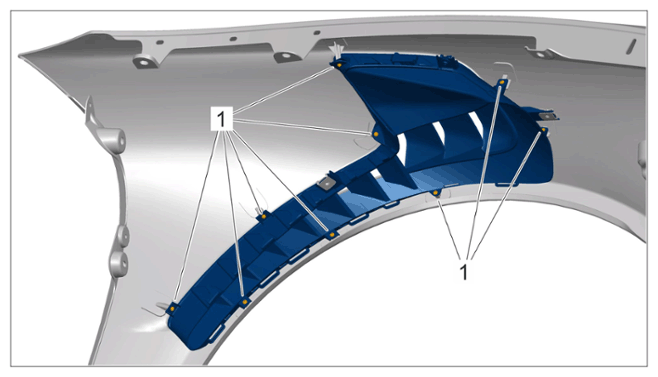

Screws securing retaining frame vanes to wing	Item 1	Tightening torque	0.7 N.m (0.4 ft.lb)	+/- 10%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing retaining frame to wing
