Underbody Panelling

Location	Description	Type	Basic value
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

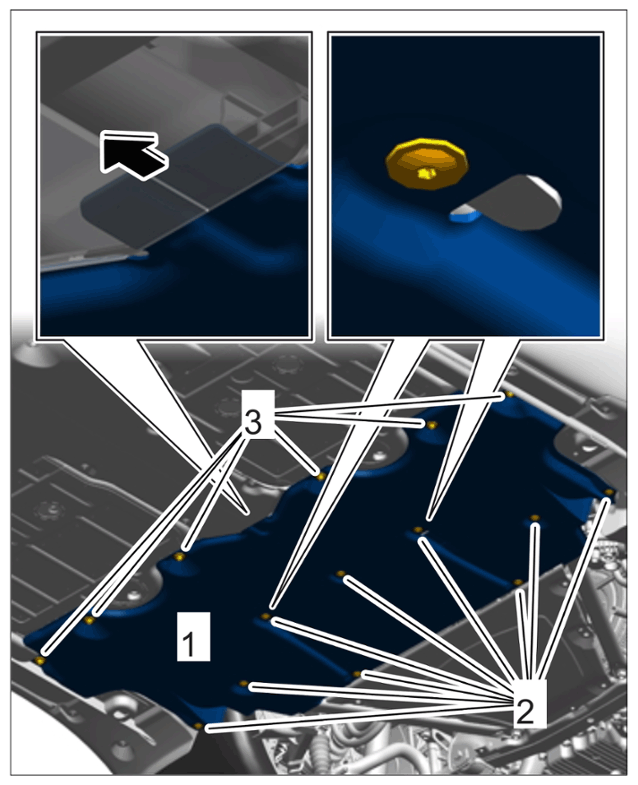

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

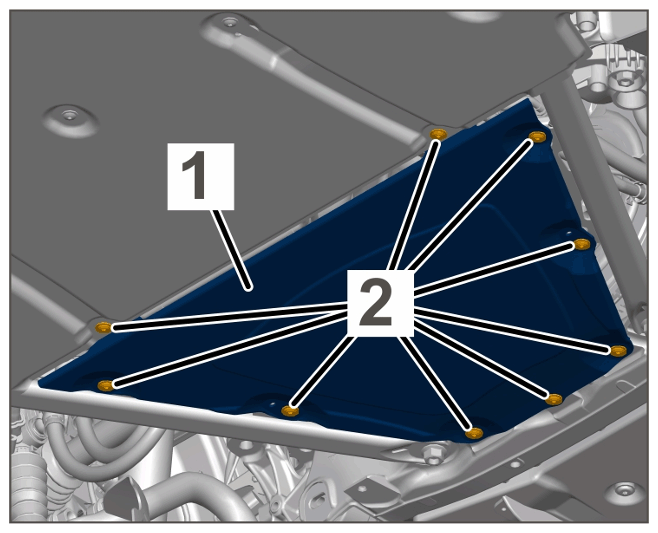

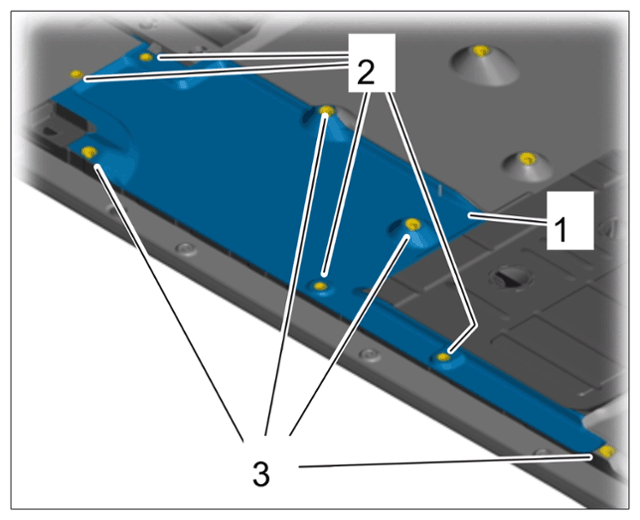

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

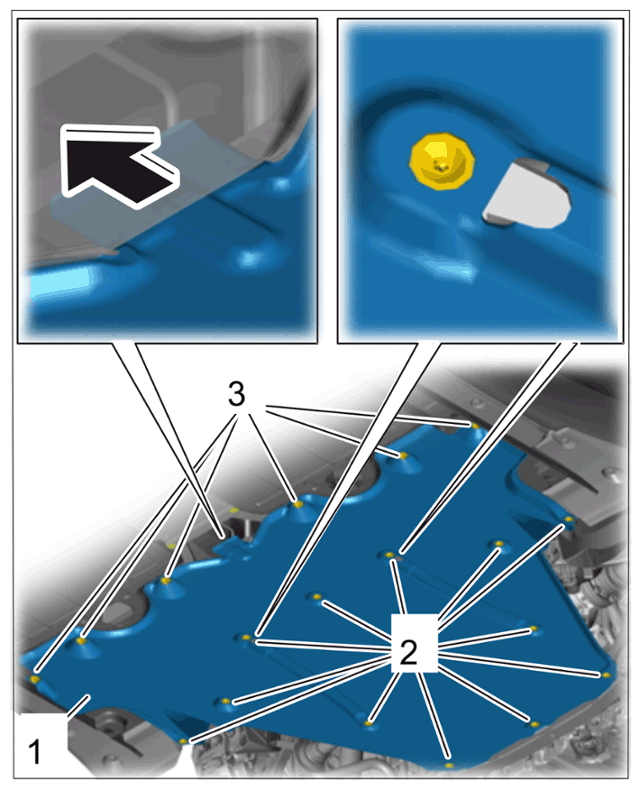

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

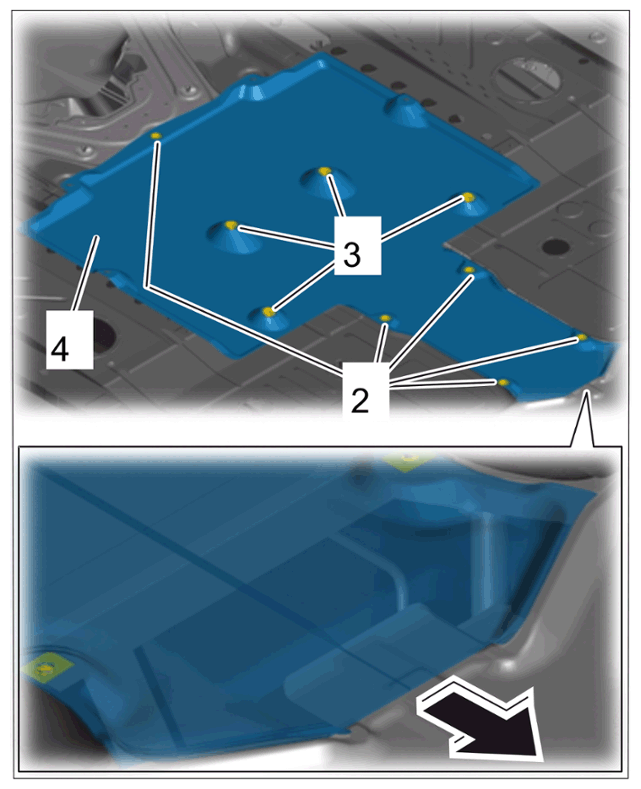

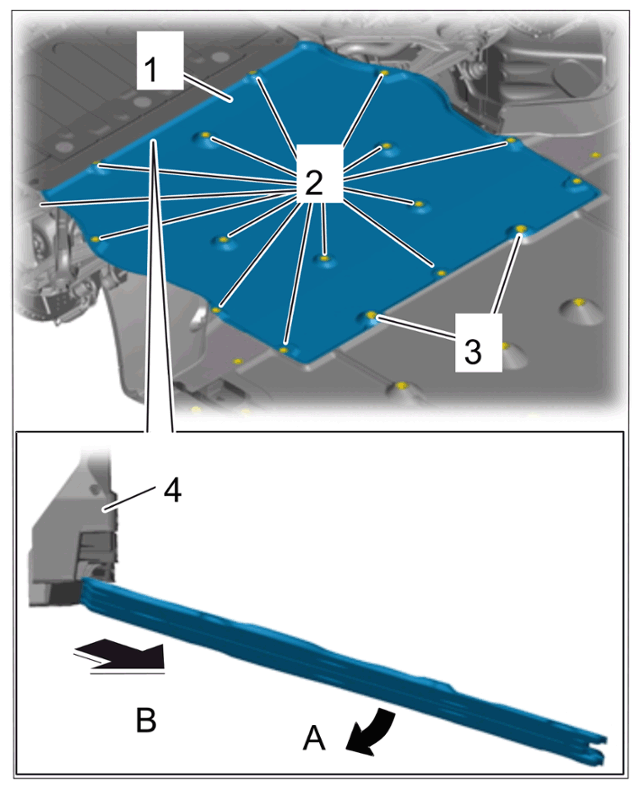

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Screws for rear underbody cover (front section)	Item 2	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Screws for rear underbody cover (rear section)	Item 2	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear underbody cover (rear section)
Nuts for rear underbody cover (front section)	Item 3	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

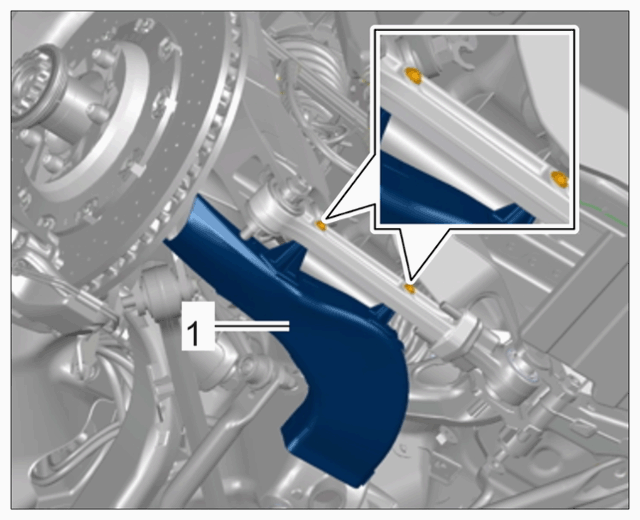

Fastening screw securing brake spoiler to wishbone		Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing brake spoiler

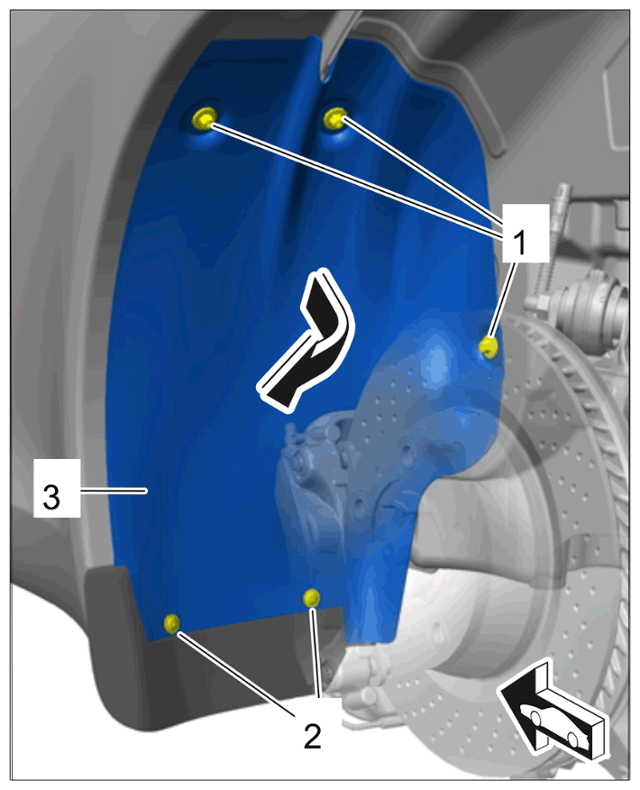

Fastening nut securing rear wheel housing liner to body	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner
Fastening screw securing rear wheel housing liner to side-section trim	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner

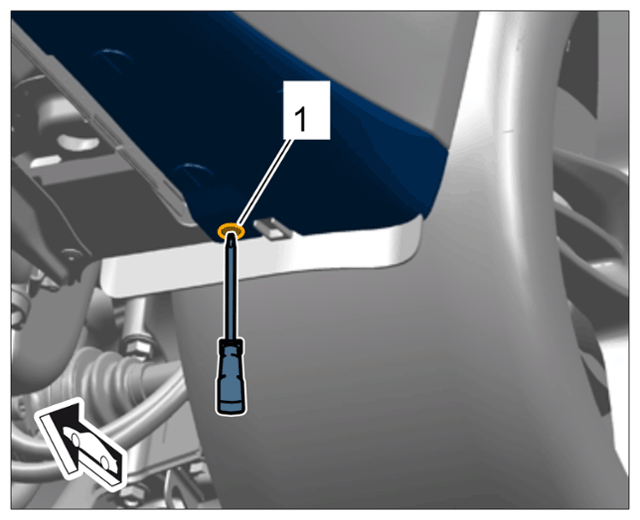

Rear fastening screw, underside		Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear fastening screw
