Front Wheel Housing Liner

Location	Description	Type	Basic value
Fastening screw securing air vane to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

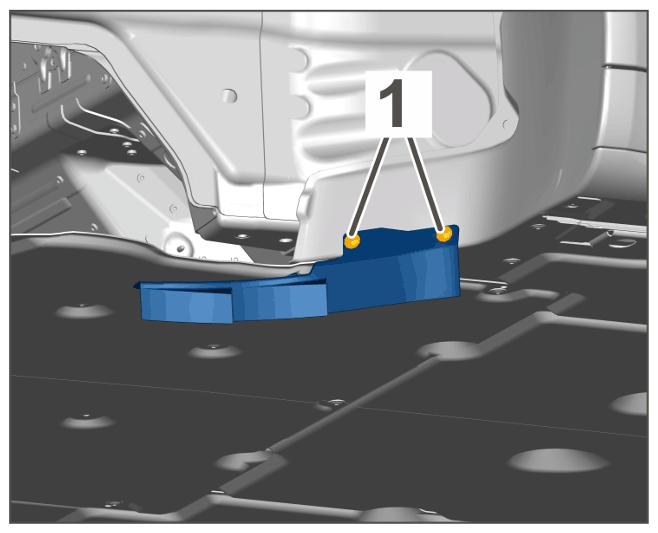

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air vane
Fastening screw securing front wheel housing liner (front part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

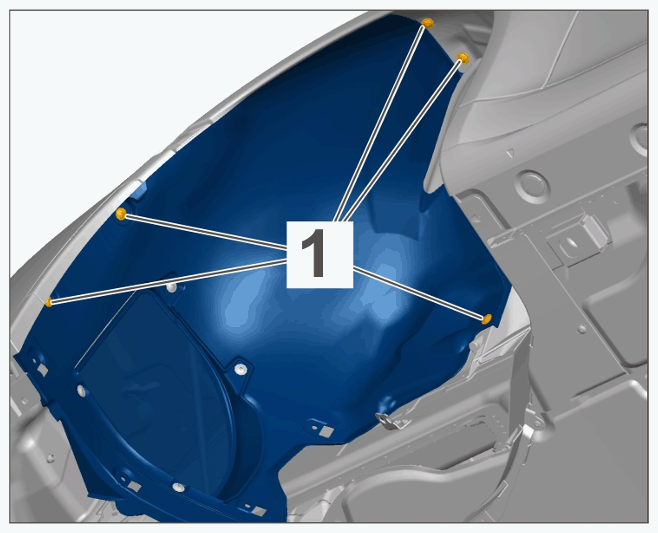

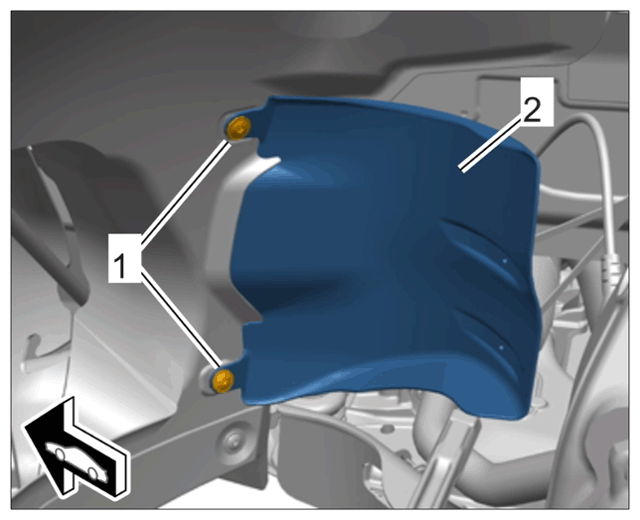

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (front part)
Screws on lower part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)

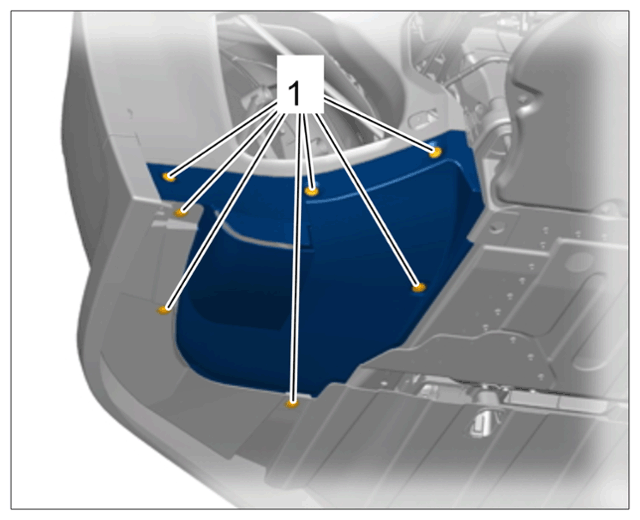

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of wheel housing liner
Screws on upper part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)

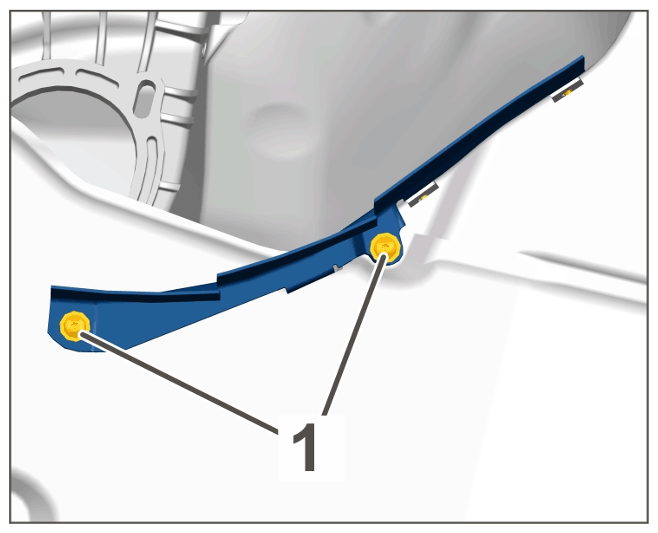

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of front wheel housing liner (front part)
Fastening screw securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

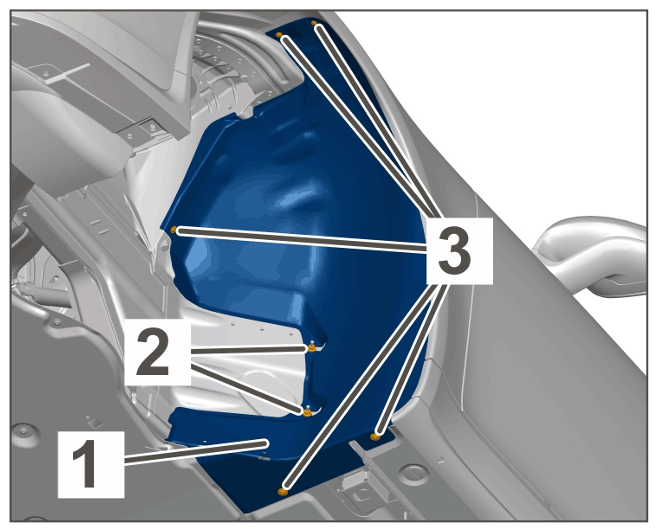

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Fastening nuts securing front wheel housing liner (rear part) to body	Item 3	Tightening torque	3 N.m (2 ft.lb)

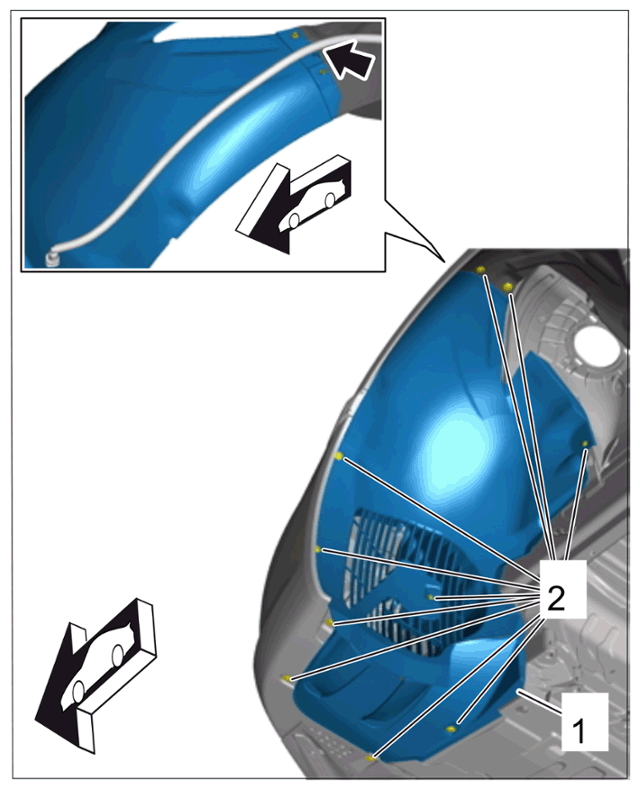

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws securing front wheel housing liner (rear part) to body	Item 1	Tightening torque	3 N.m (2 ft.lb)

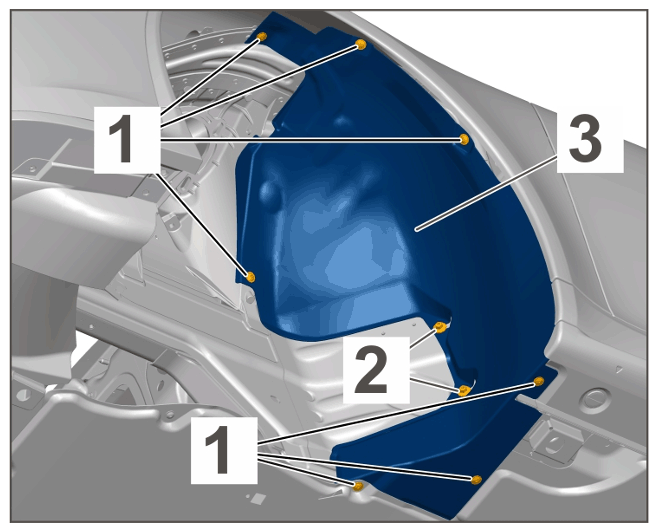

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Nut securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws securing front wheel housing liner (rear part) to body	Item 3	Tightening torque	3 N.m (2 ft.lb)

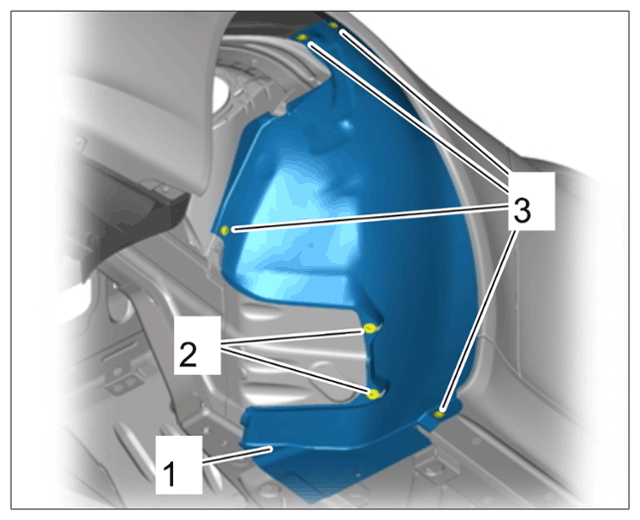

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Nut securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)
Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)
Front wheel housing liner (grille)	Item 1	Tightening torque	3.2 N.m (2 ft.lb)

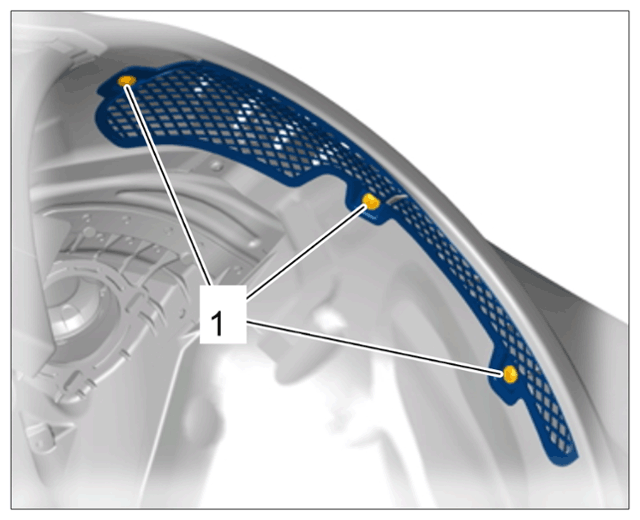

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front wheel housing liner (grille)
