Front Door

Location	Description	Type	Basic value
Fastening screws securing window guide to door	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)

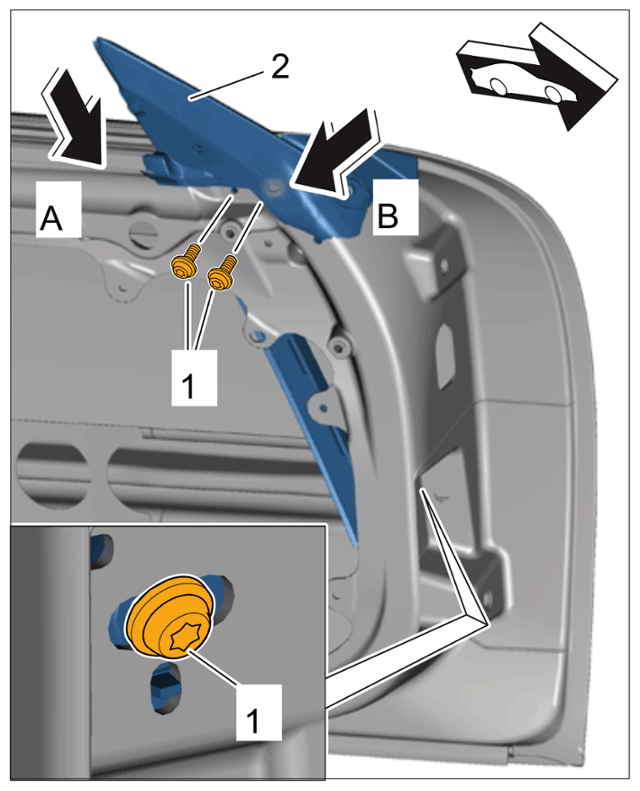

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing window guide
Fastening screws for door opener		Tightening torque	2 N.m (1.5 ft.lb)

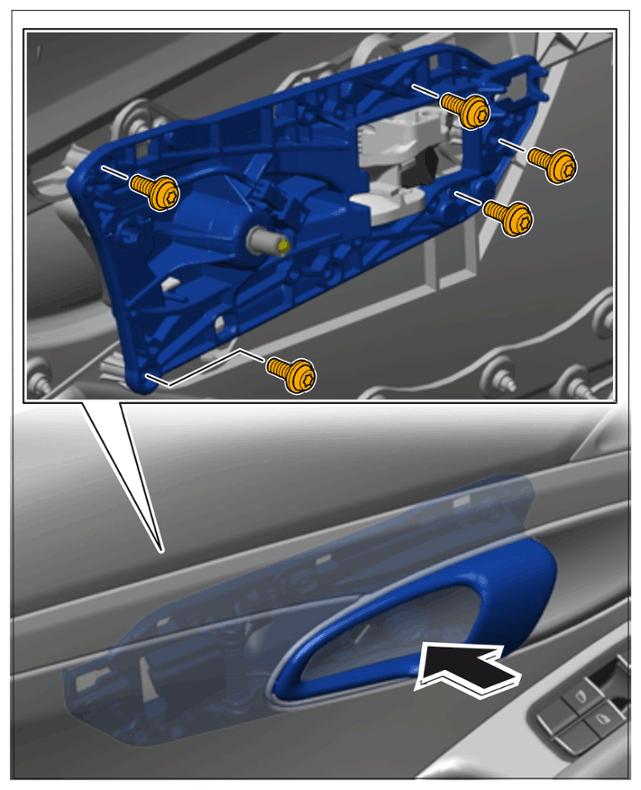

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door opener
Fastening screws for door opener		Tightening torque	2 N.m (1.5 ft.lb)

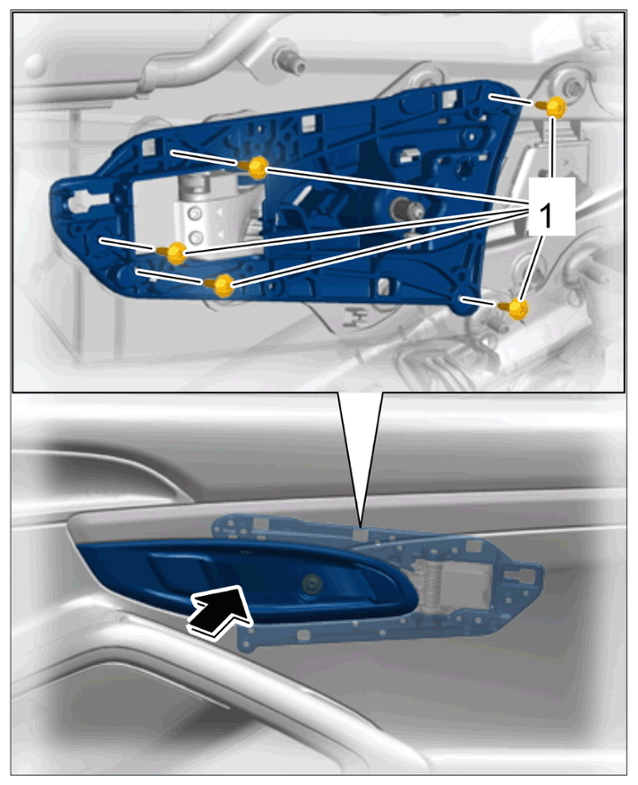

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door opener
Fastening screws for lock cylinder	Items 1 and 2	Tightening torque	2 N.m (1.5 ft.lb)

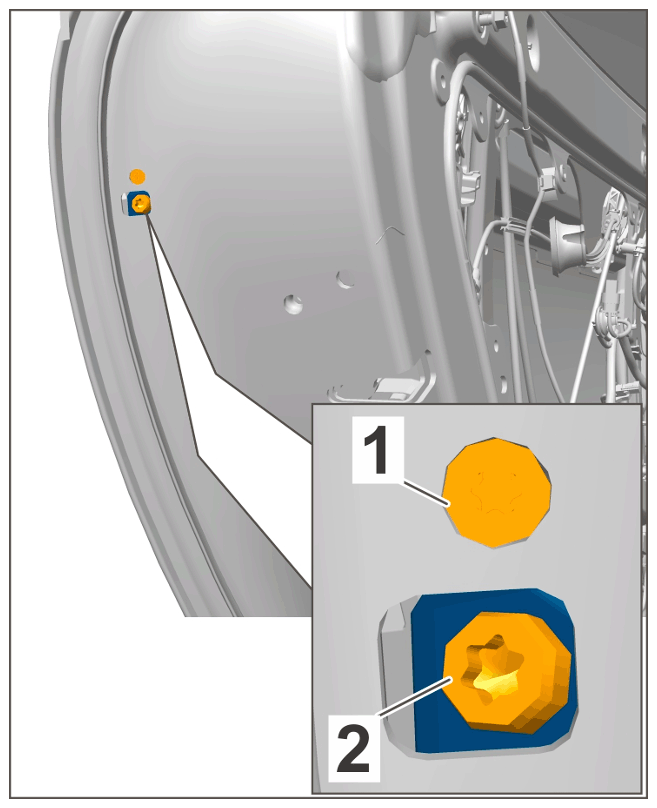

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fit bolt

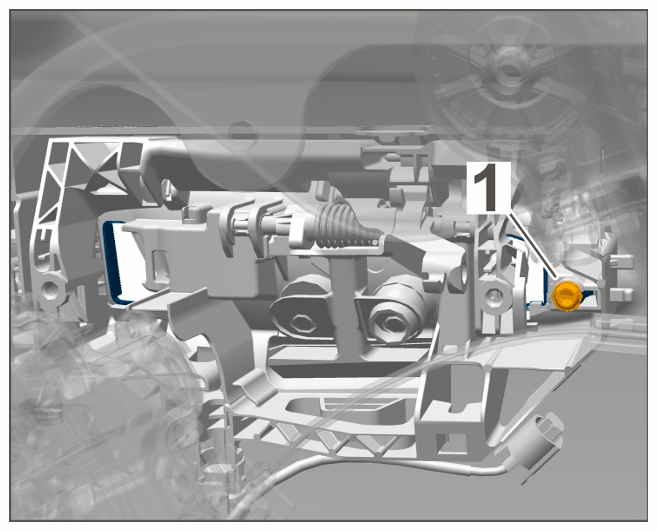

Fastening screws for door handle	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws
Fastening screw for sealing frame	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for sealing frame
Fastening screw for door hinge		Tightening torque	25 N.m (19 ft.lb)

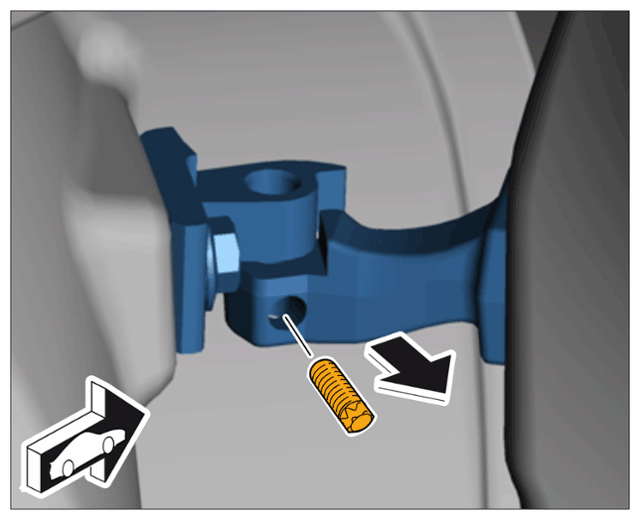

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening hinge joint

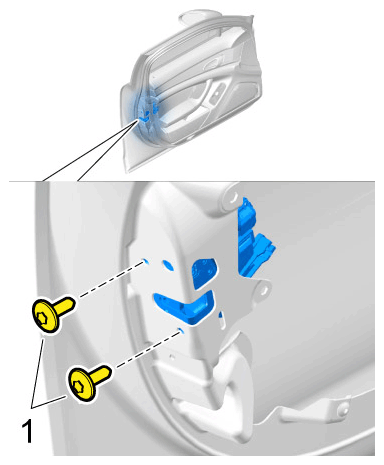

Door lock mounting	Item 1	Tightening torque	20 N.m (15 ft.lb)

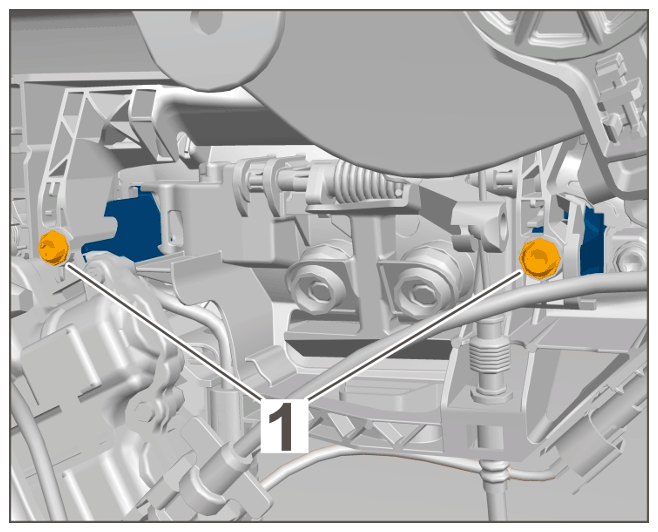

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws on door lock

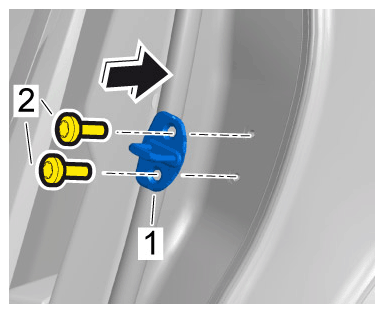

Fastening screws for lock peg	Item 2	Tightening torque	25 N.m (19 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for lock peg
Fastening nut		Tightening torque	3 N.m (2 ft.lb)

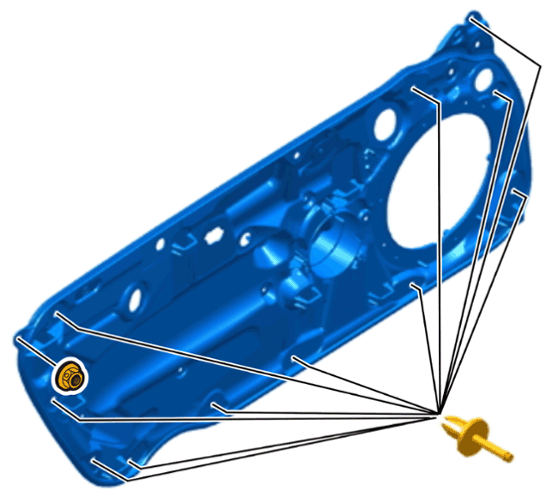

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for door sub-frame
Fastening screws securing door hinge to front door	Item 1	Tightening torque	40 N.m (30 ft.lb)

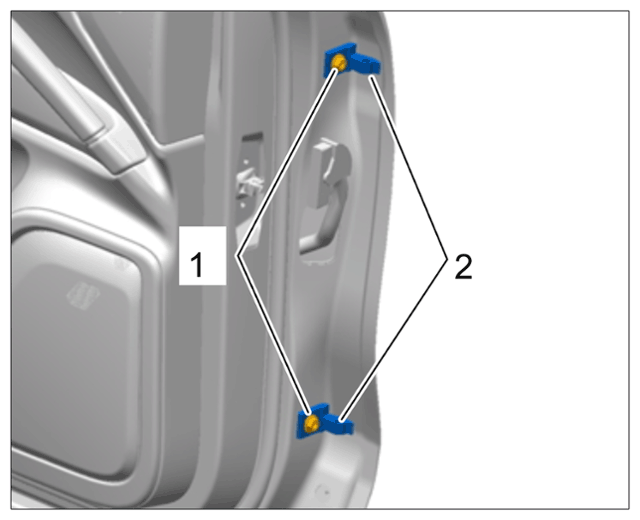

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge
