Technical Values - Wing: Wing
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Fastening screws securing wing to body | Tightening torque | 9.7 N.m (7.5 ft.lb) | +/- 0.9 N.m (0.5 ft.lb) | |
|

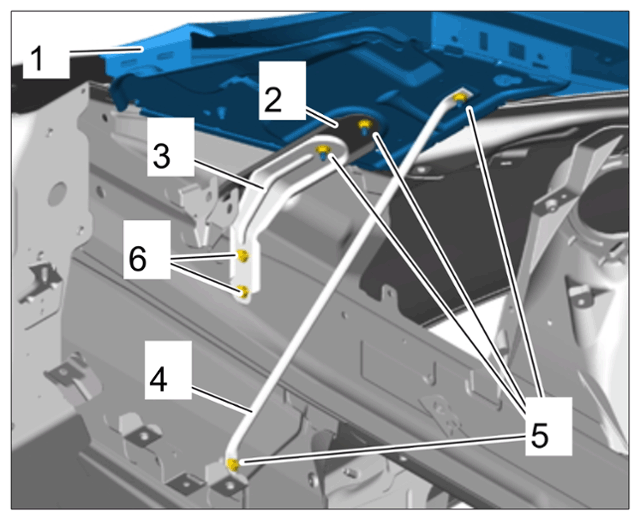

Releasing top of wing |
||||
| Fastening nuts/screws securing bracket to body | Tightening torque | 9.7 N.m (7.5 ft.lb) | +/- 0.9 N.m (0.5 ft.lb) | |
|

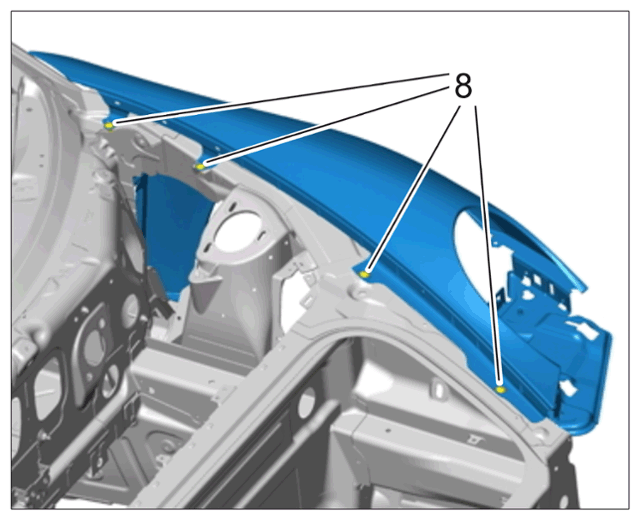

Releasing bottom of wing |
