Rear Lid

Location	Description	Type	Basic value

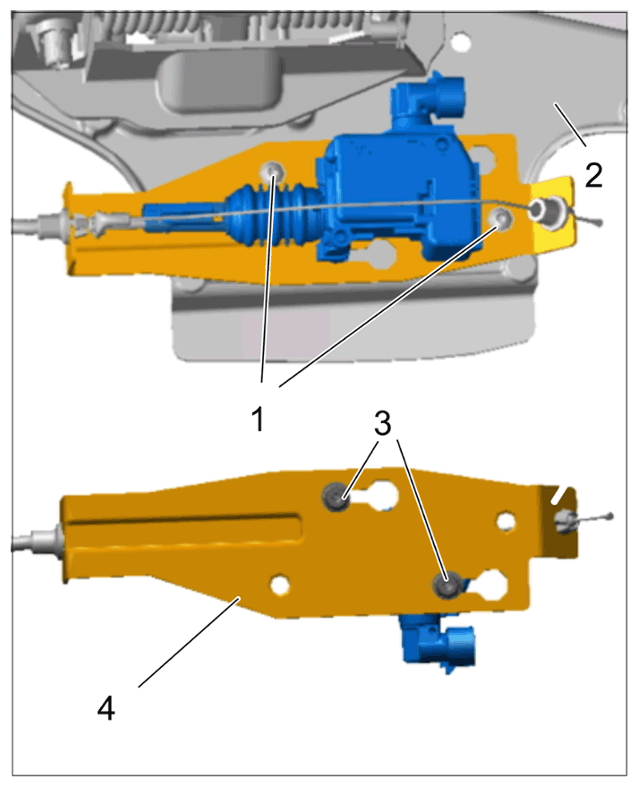

Fastening screw securing retaining bracket to rear spoiler	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor
Fastening screw securing rear lid release motor to retaining bracket	Item 3	Tightening torque	2.5 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor

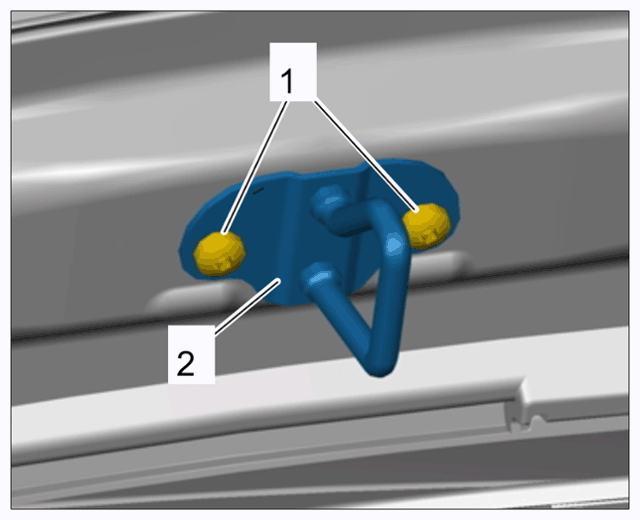

Fastening screws on lower part of rear lid lock	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of rear lid lock

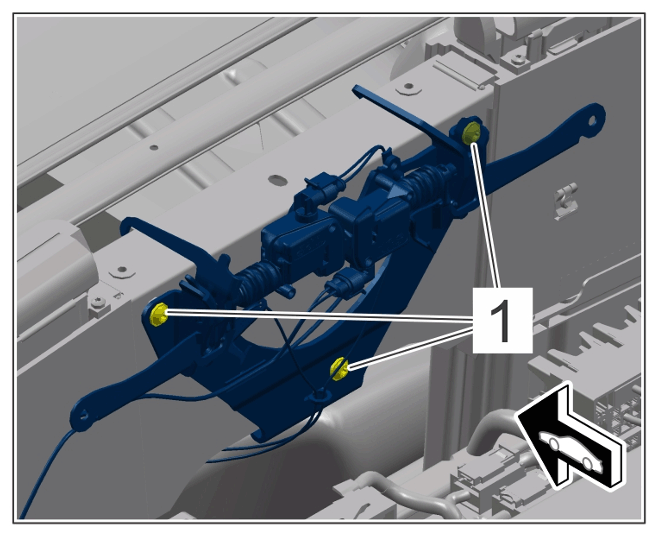

Fastening screws on upper part of lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing upper part of rear lid lock

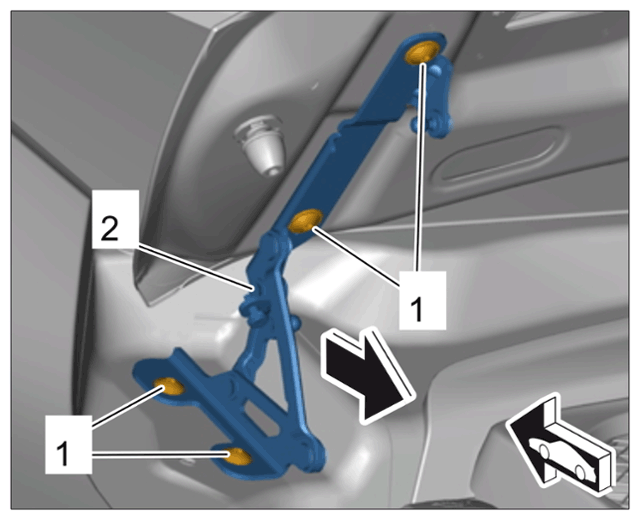

Fastening screws on rear lid hinge	Item 1	Tightening torque	10 N.m (7.5 ft.lb)

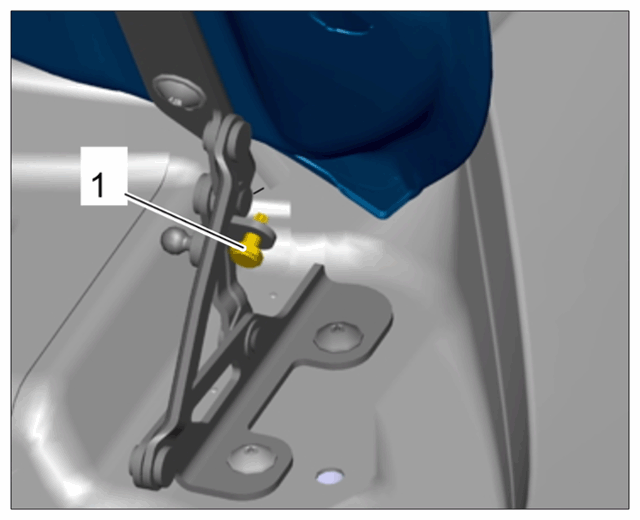

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge

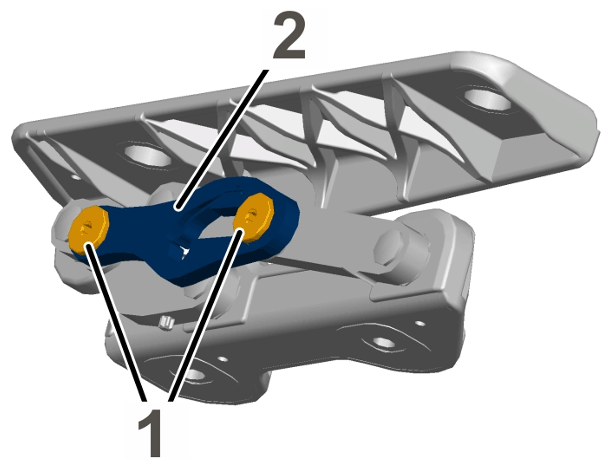

Lid adjusting element	Item 1	Adjustment value	2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in Z direction
Screws on rear lid hinge (right)	Item 1	Tightening torque	6 N.m (4.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear lid hinge (right)

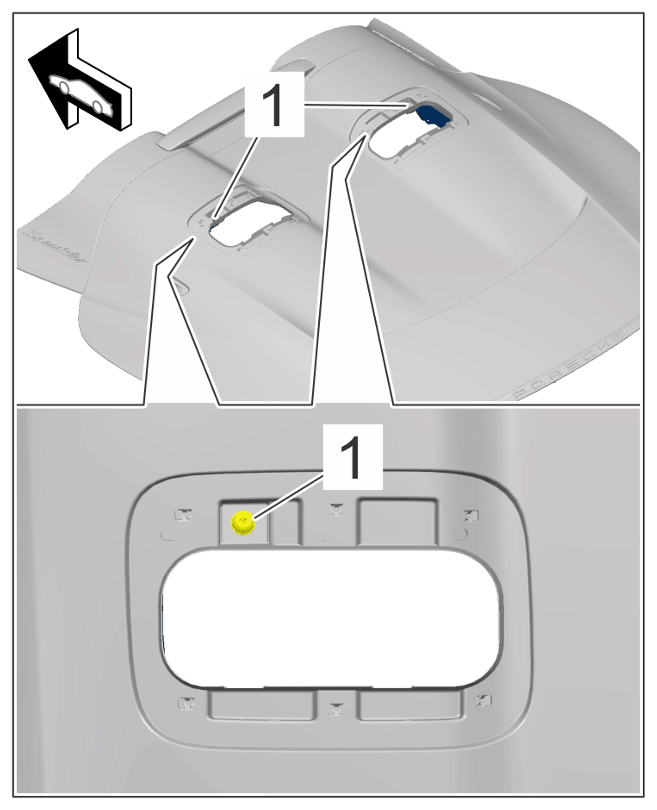

Screws on lower part of rear lid lock (front)	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

Location	Description	Type	Basic value

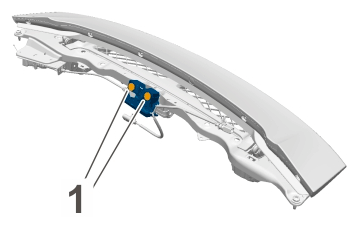

Screws on top of rear lid	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

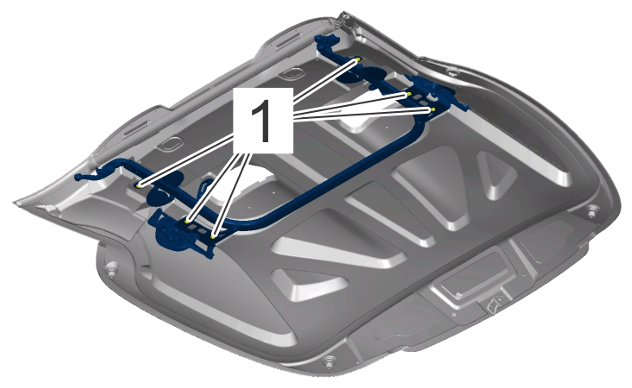

Screws securing rear lid to support	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
