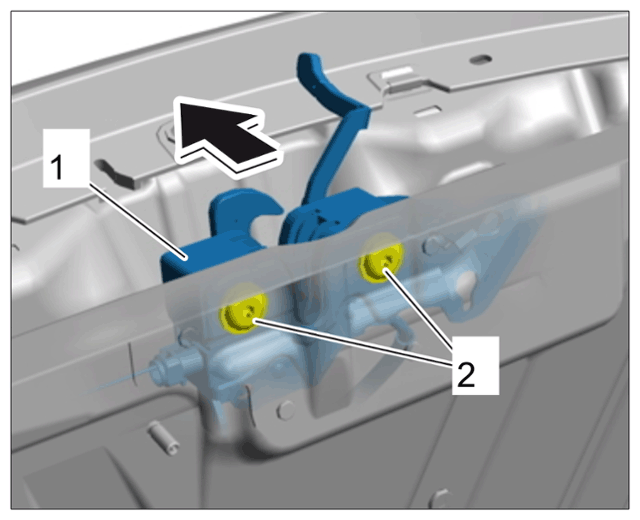

| Fastening screws on lid lock |
Item 2 |
Tightening torque |
10 N.m (7.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing lower part of lid lock |
|
|
|
|

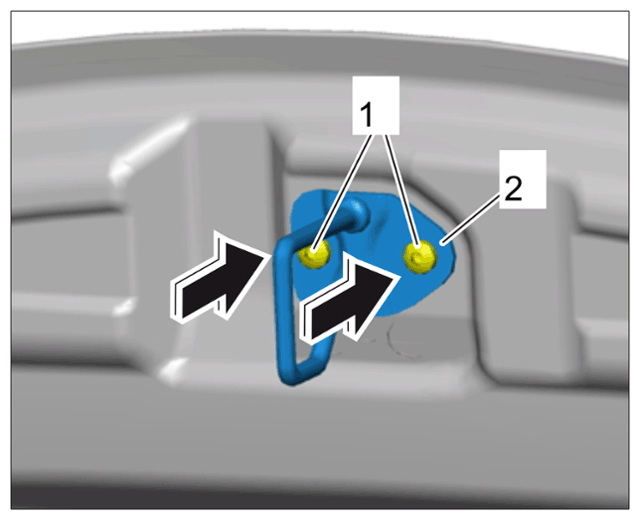

| Fastening screw securing upper part of lid lock to front lid |
Item 1 |
Contact force |
10 N.m (7.5 ft.lb) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting lower part of lid lock |
|
|
|
|
