Front Lid

Location	Type	Basic value	Tolerance
M6 fastening nuts securing front lid to lid hinge		9.7 N.m (7.2 ft.lb)

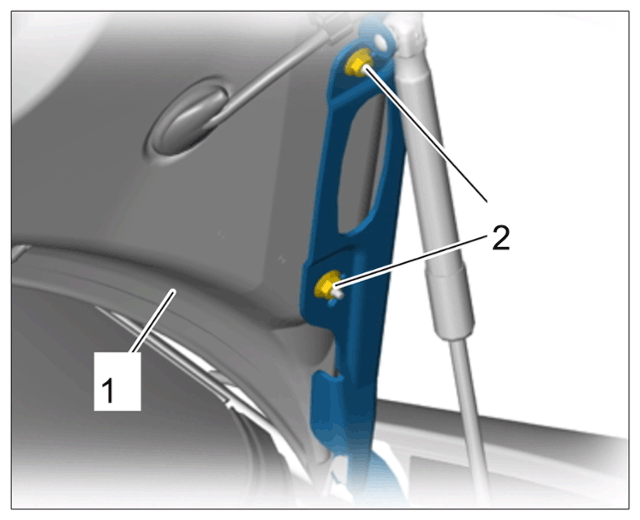

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front lid
Fastening screws for lid hinge	Tightening torque	9.7 N.m (7.2 ft.lb)

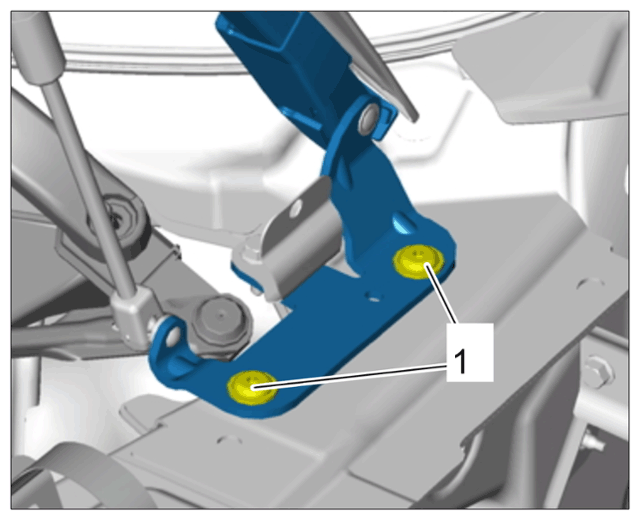

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front lid hinge
Fastening screws for lid lock	Tightening torque	9.7 N.m (7.2 ft.lb)	+/- 1 N.m (0.5 ft.lb)

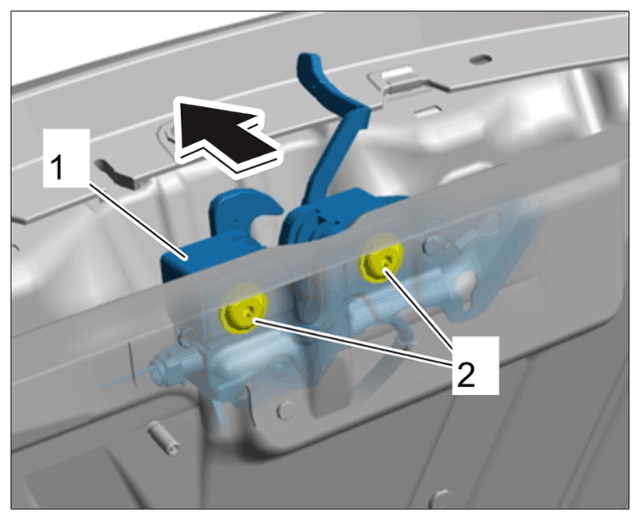

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock
