TECHNICAL VALUES SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

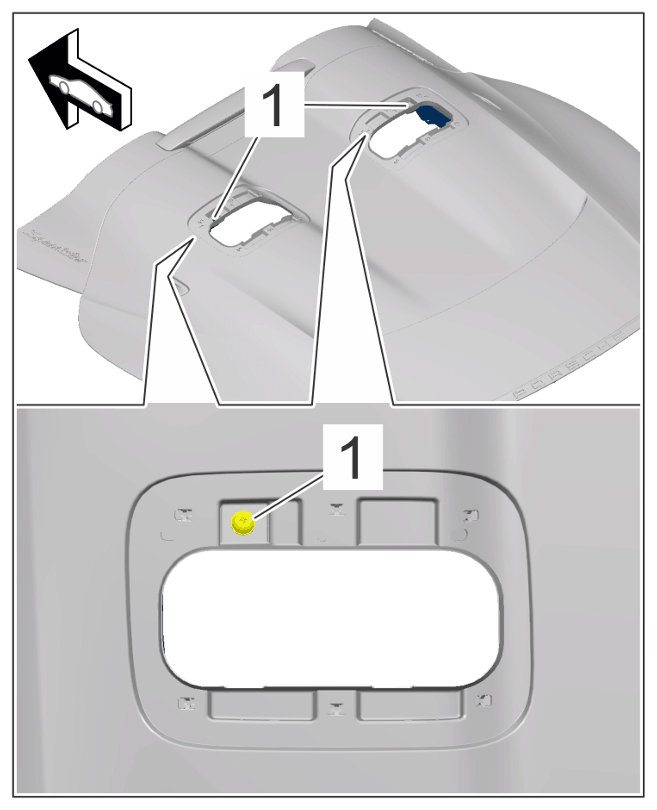

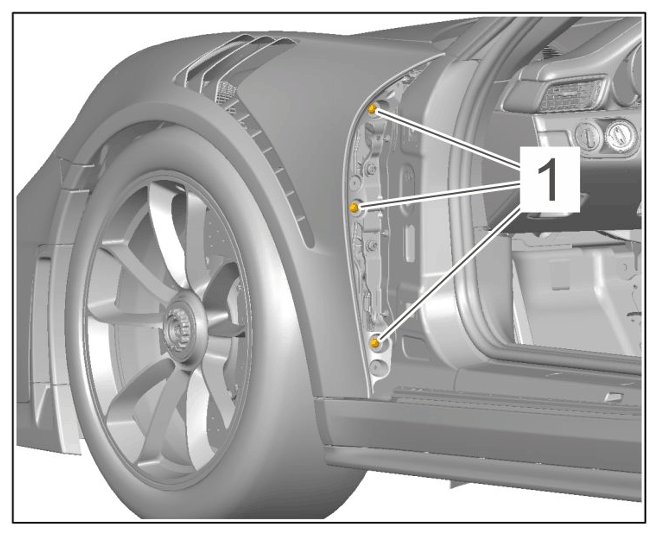

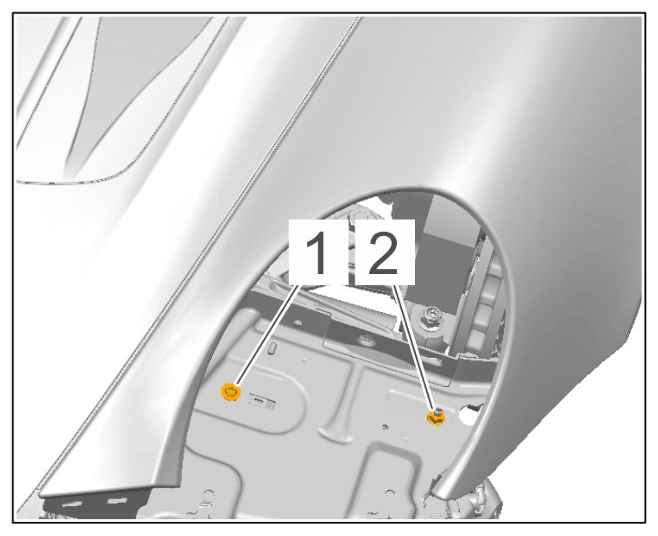

Screw for wing retainer plate at headlight mounting point	Item 1	Tightening torque	5.5 N.m (4 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw
Nut for wing retainer plate at headlight mounting point	Item 2	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw

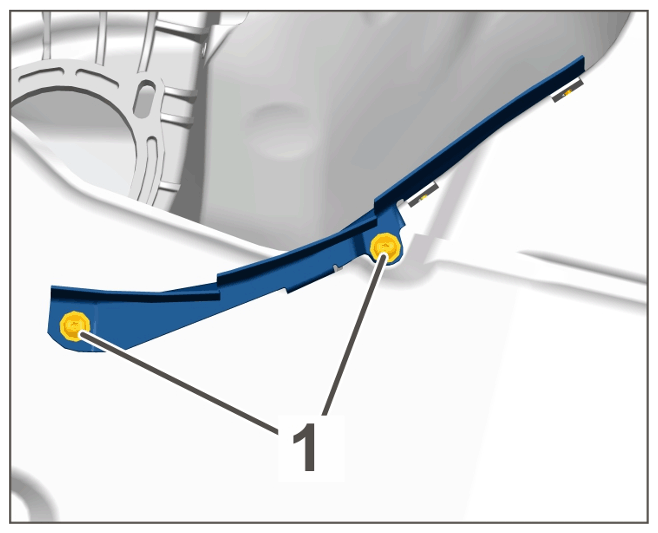

Screws securing wing to retaining frame	Item 1	Tightening torque	5.5 N.m (4 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, rear
Wing screw, bottom	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screw

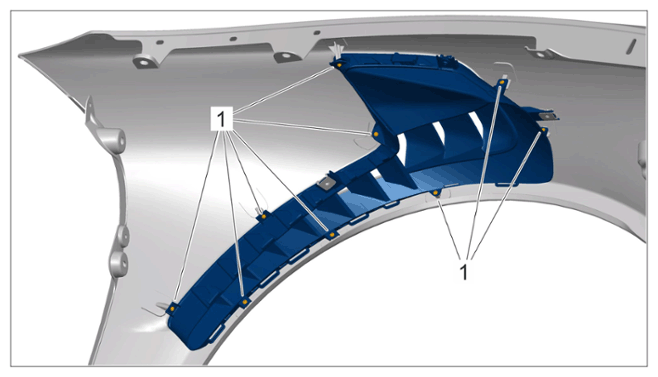

Screws securing retaining frame vanes to wing	Item 1	Tightening torque	0.7 N.m (0.4 ft.lb)	+/- 10%
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing retaining frame to wing
Fastening screw securing air vane to body	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air vane

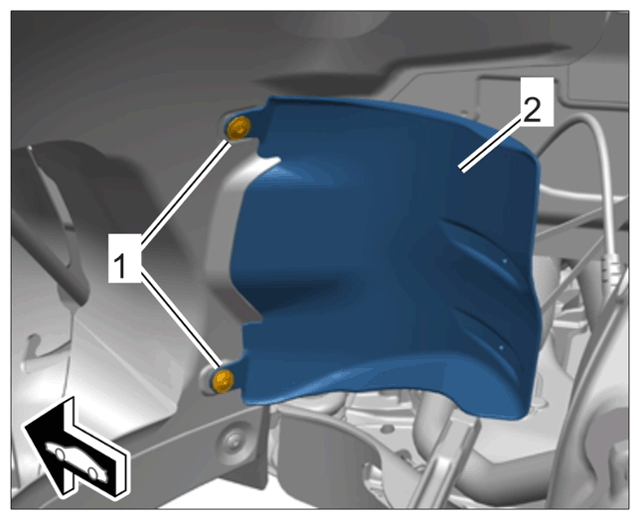

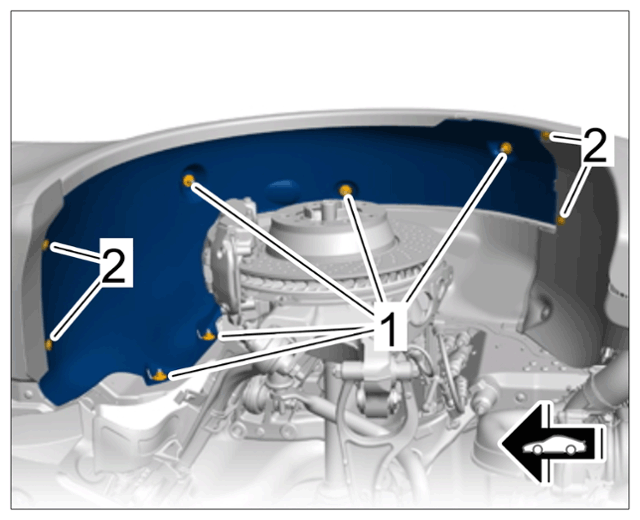

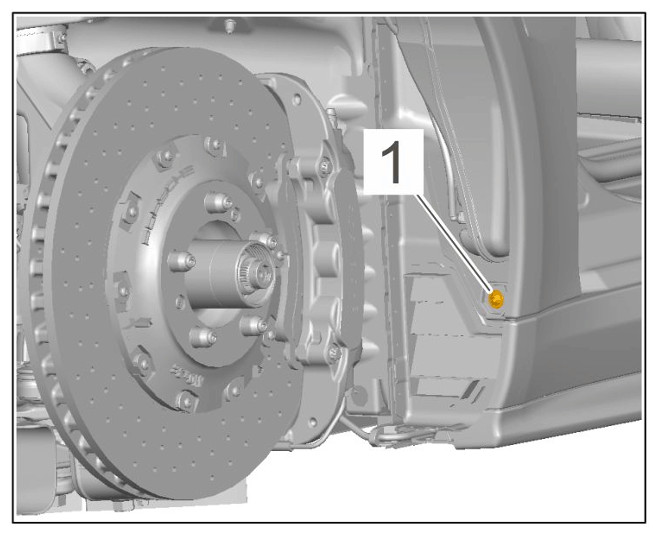

Fastening screw securing front wheel housing liner (front part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (front part)

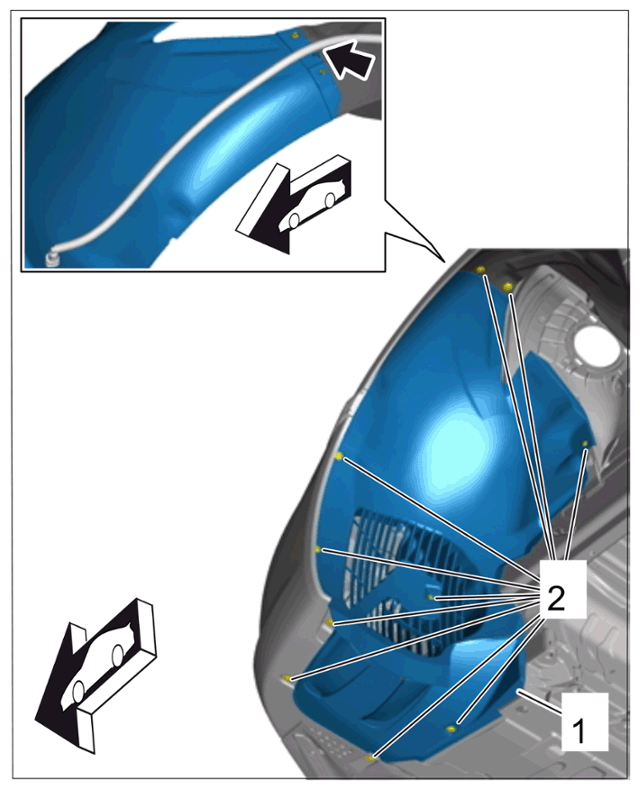

Screws on lower part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of wheel housing liner

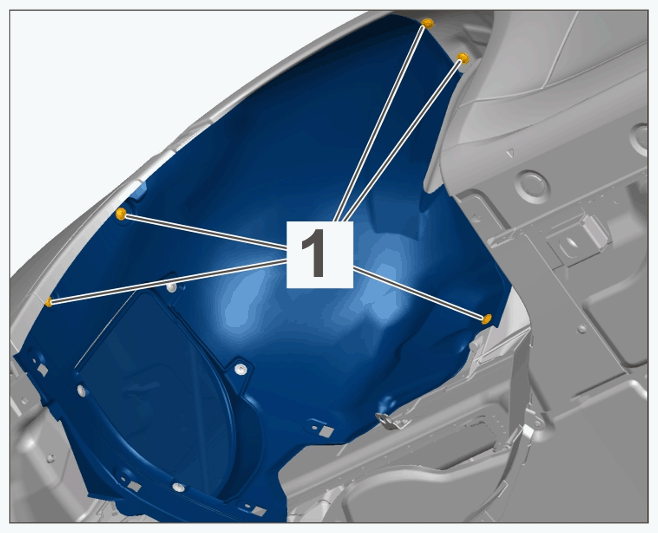

Screws on upper part of front wheel housing liner (front part)	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of front wheel housing liner (front part)

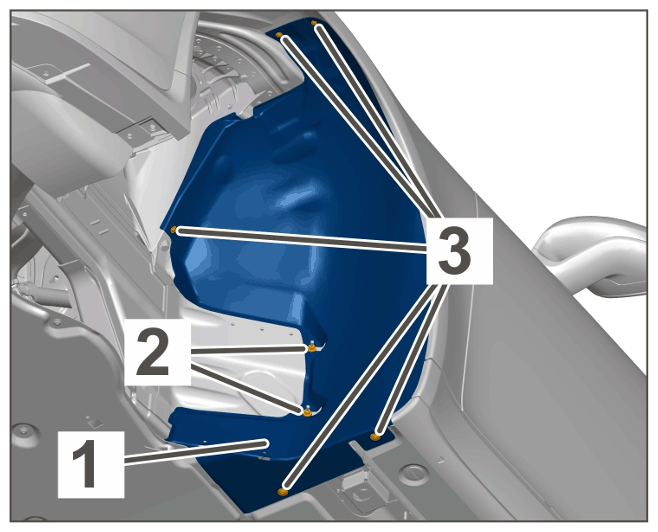

Fastening screw securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Fastening nuts securing front wheel housing liner (rear part) to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)

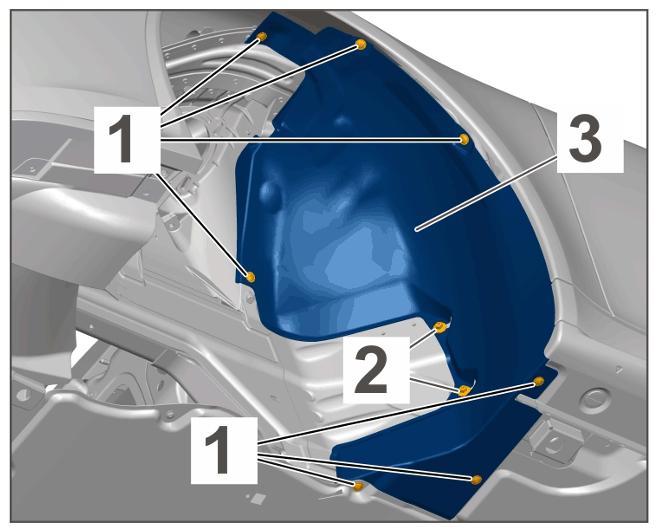

Screws securing front wheel housing liner (rear part) to body	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Nut securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws securing front wheel housing liner (rear part) to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Nut securing front wheel housing liner (rear part) to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front wheel housing liner (rear part)
Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)
Screws for front cover (fin)	Item 1	Tightening torque	3.2 N.m (2.1 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front cover (fin)

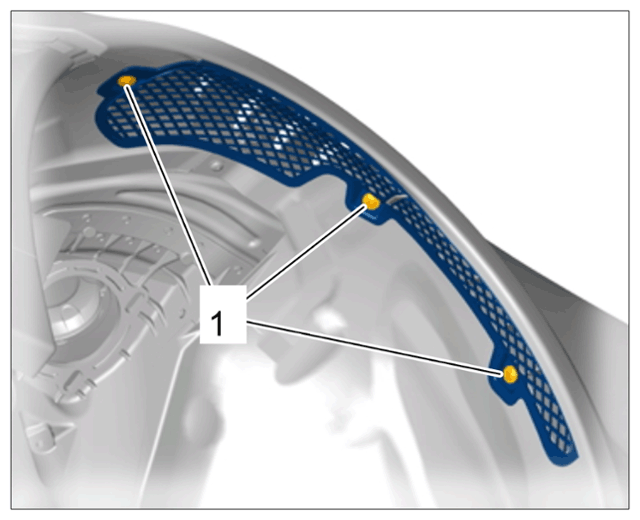

Front wheel housing liner (grille)	Item 1	Tightening torque	3.2 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front wheel housing liner (grille)

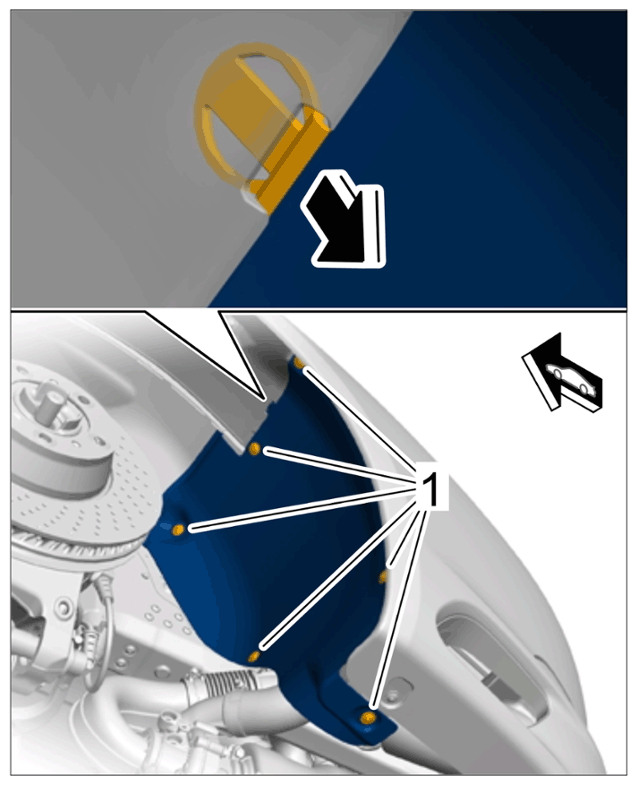

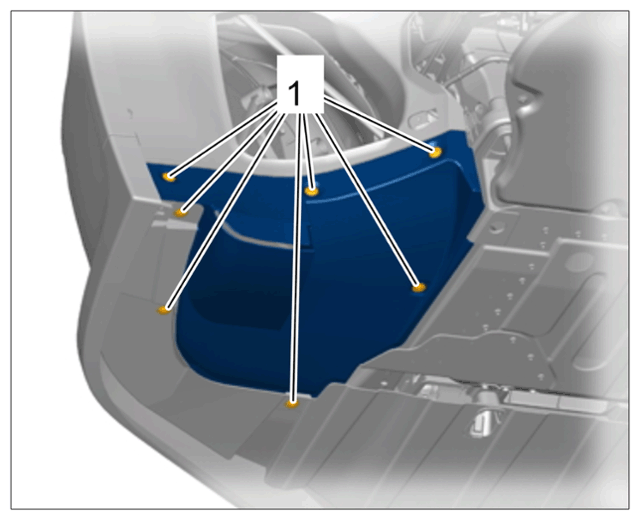

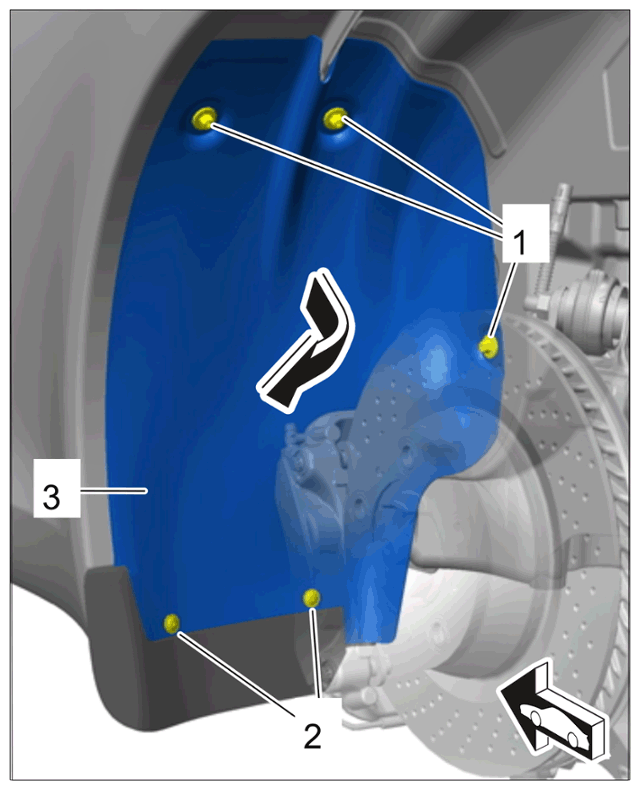

Fastening nuts, rear wheel housing liner (front)	Item 1	Tightening torque	+ 2.5 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening elements
Fastening screws, rear wheel housing liner (front)	Item 2	Tightening torque	+ 2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening elements
Fastening screws for rear wheel housing liner (at the rear)	Item 1	Tightening torque	+ 2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening elements

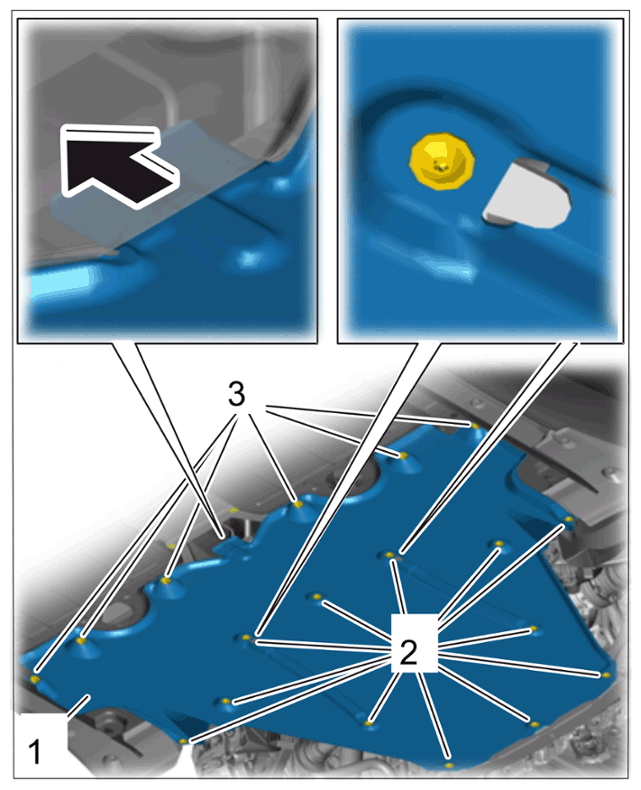

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)

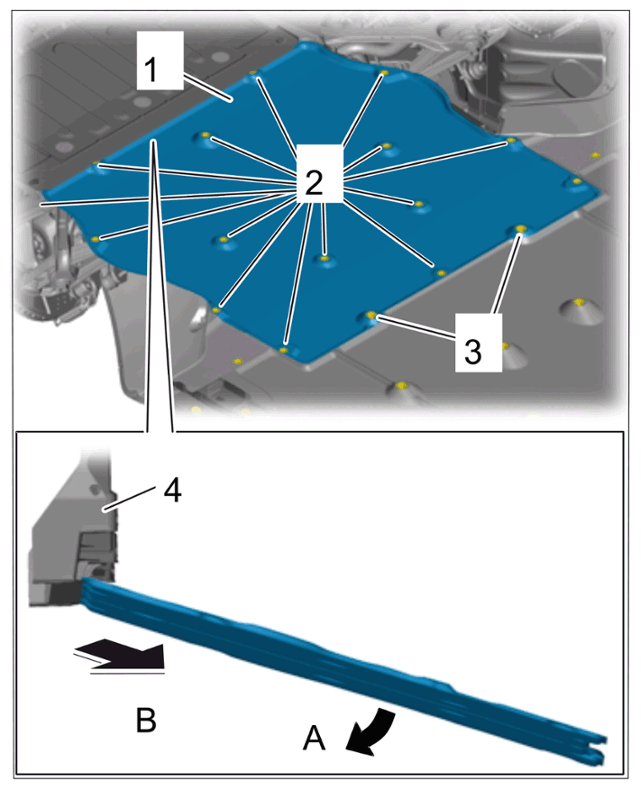

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover for front underbody

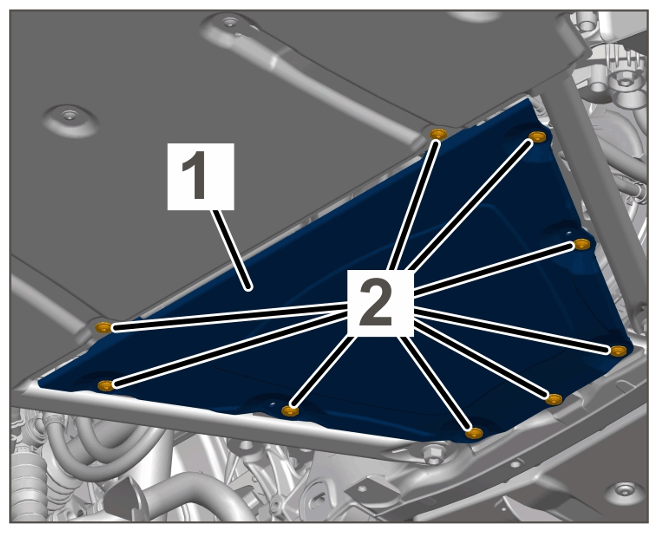

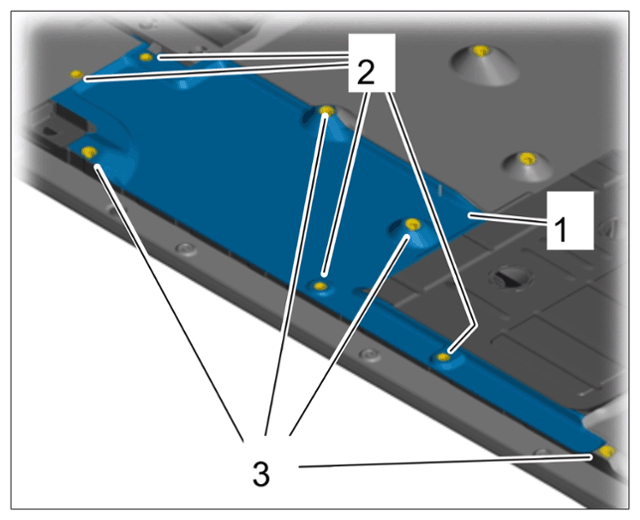

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing side cover

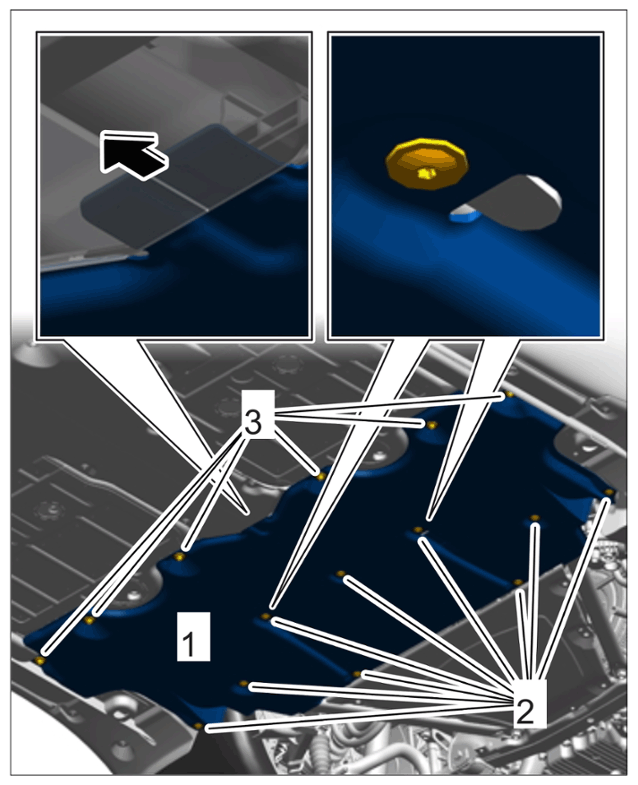

Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing middle cover
Fastening screws securing underbody cover to body	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling
Fastening nuts securing underbody cover to body	Item 3	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

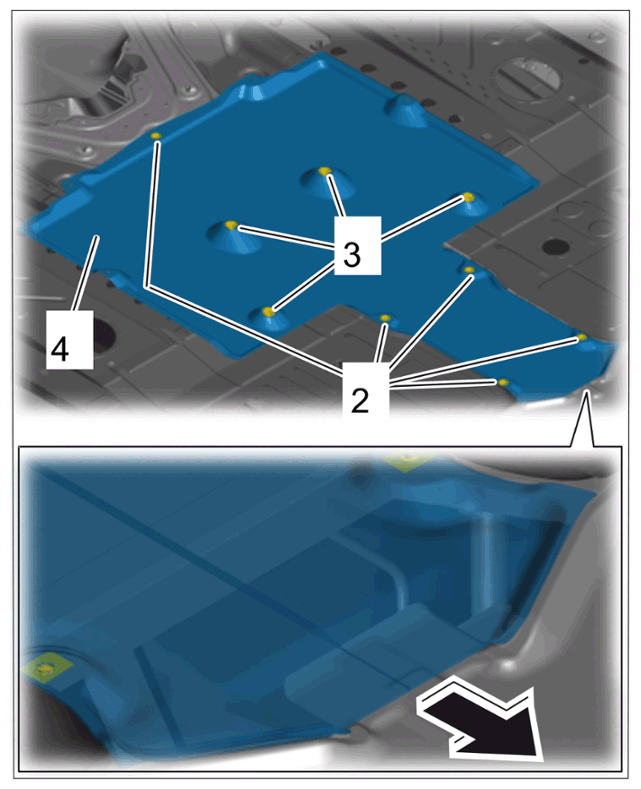

Screws for rear underbody cover (front section)	Item 2	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

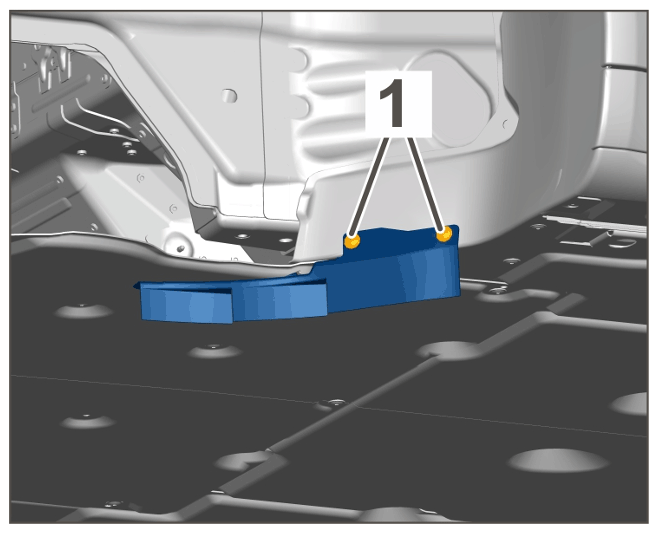

Screws for rear underbody cover (rear section)	Item 2	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear underbody cover (rear section)
Nuts for rear underbody cover (front section)	Item 3	Tightening torque	2.7 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear underbody panelling

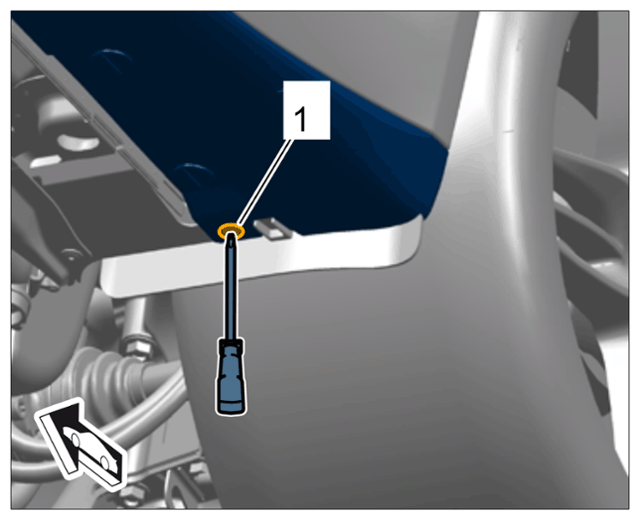

Fastening screw securing brake spoiler to wishbone		Tightening torque	3 N.m (2 ft.lb)

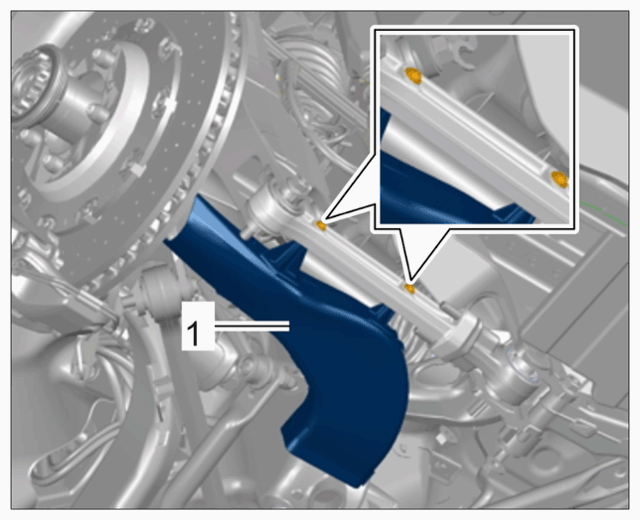

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing brake spoiler
Fastening nut securing rear wheel housing liner to body	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner

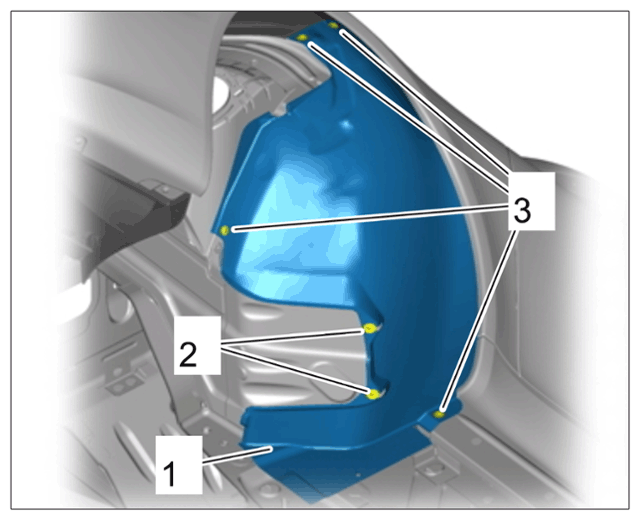

Fastening screw securing rear wheel housing liner to side-section trim	Item 2	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear wheel housing liner
Rear fastening screw, underside		Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear fastening screw
Fastening screws securing window guide to door	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing window guide

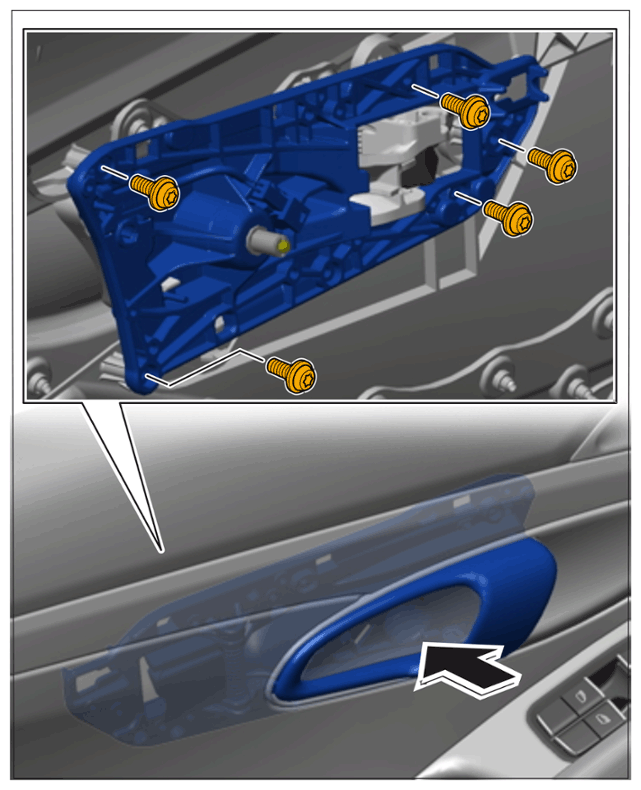

Fastening screws for door opener		Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door opener
Fastening screws for door opener		Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door opener

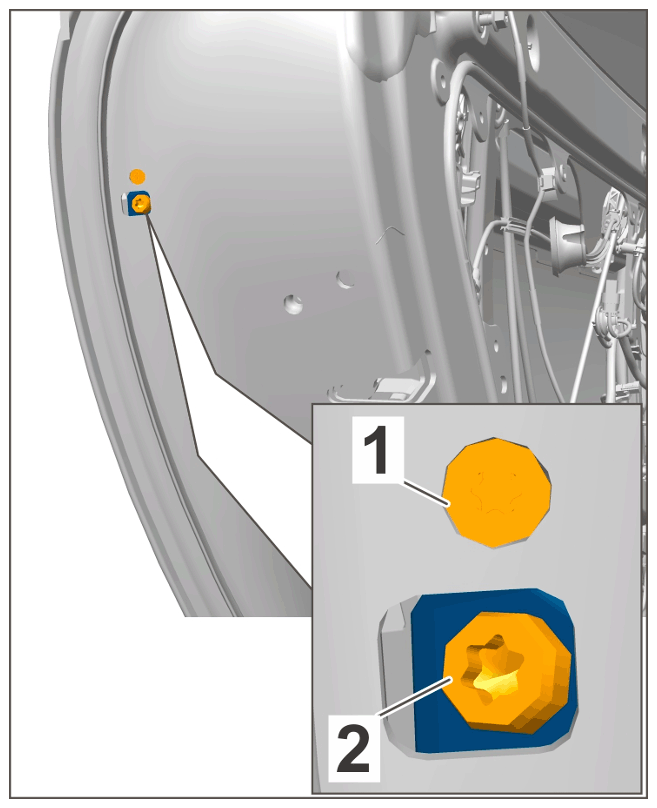

Fastening screws for lock cylinder	Items 1 and 2	Tightening torque	2 N.m (1.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fit bolt

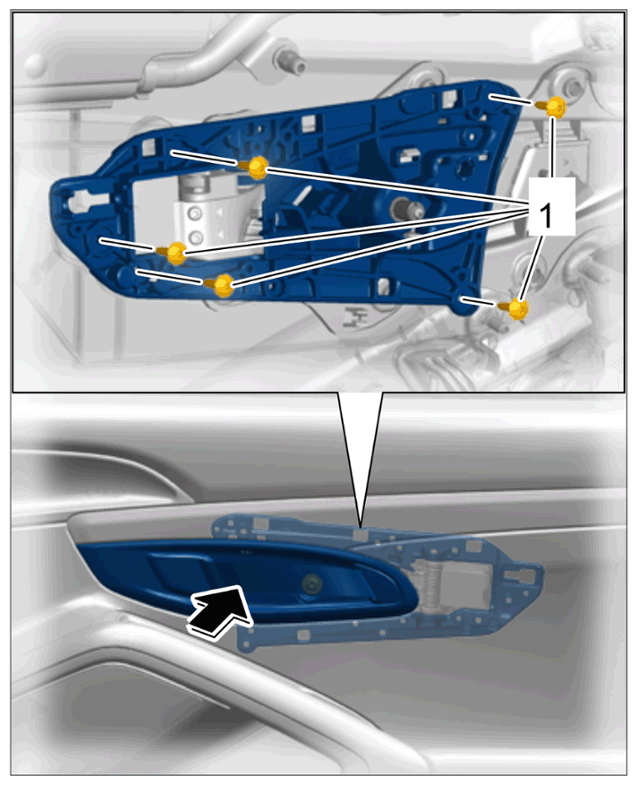

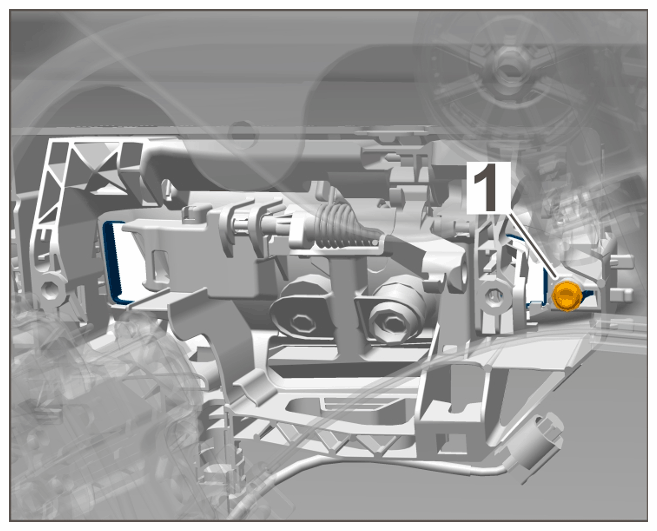

Fastening screws for door handle	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws
Fastening screw for sealing frame	Item 1	Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for sealing frame

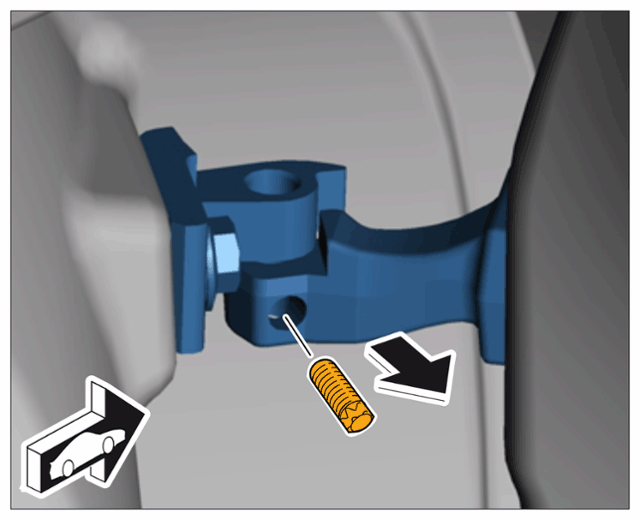

Fastening screw for door hinge		Tightening torque	25 N.m (19 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening hinge joint

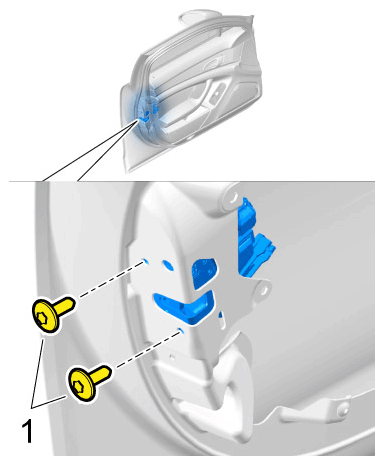

Door lock mounting	Item 1	Tightening torque	20 N.m (15 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws on door lock

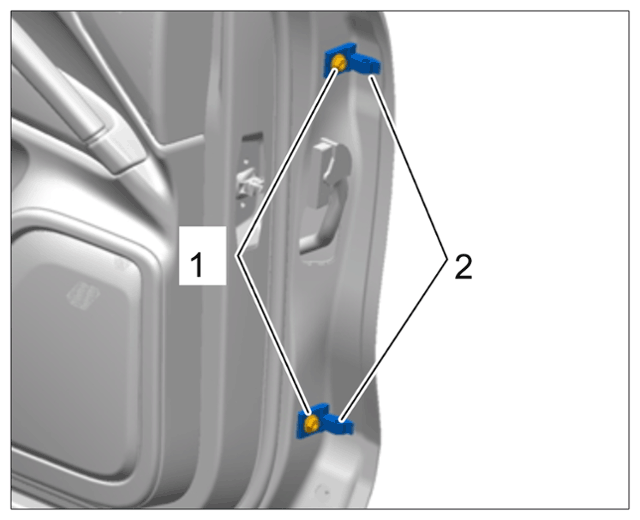

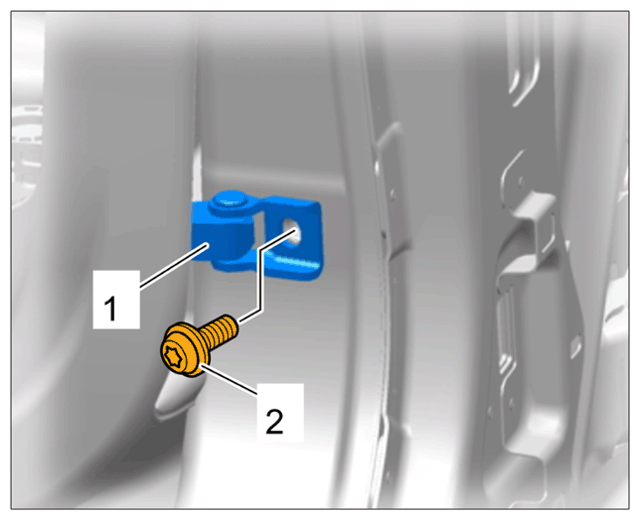

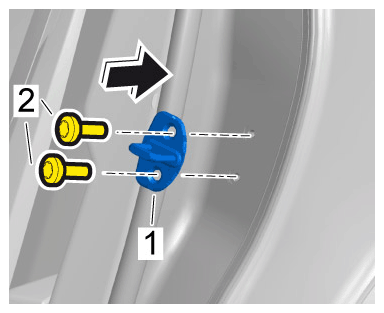

Fastening screws for lock peg	Item 2	Tightening torque	25 N.m (19 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for lock peg

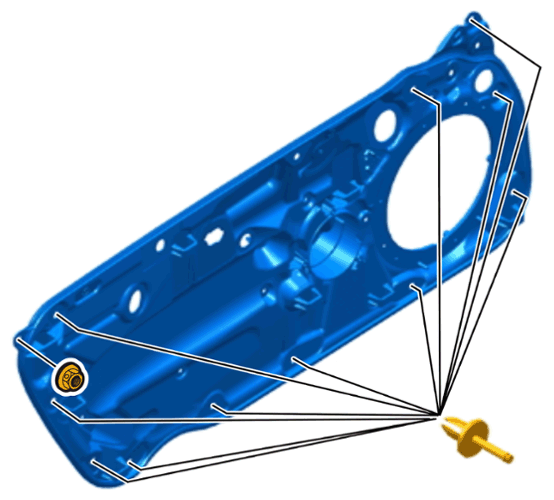

Fastening nut		Tightening torque	3 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for door sub-frame

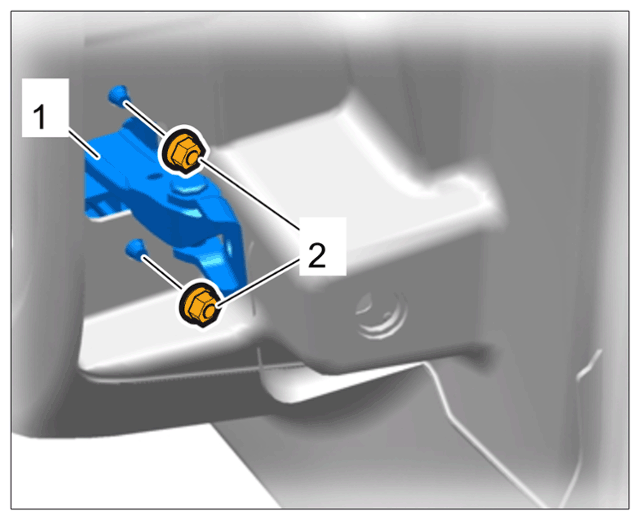

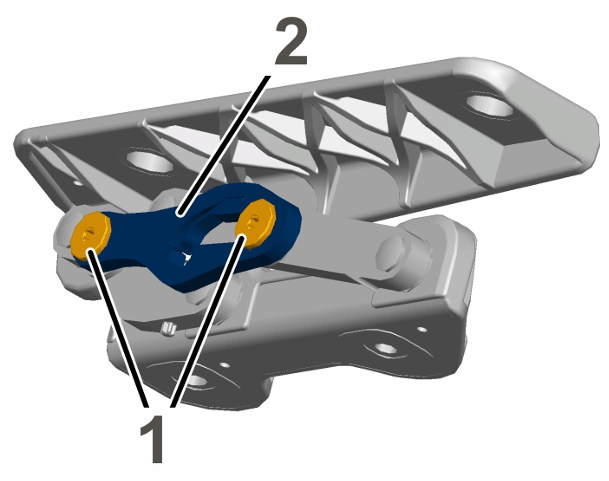

Fastening screws securing door hinge to front door	Item 1	Tightening torque	40 N.m (30 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge
Fastening screw securing door arrester to body		Tightening torque	35 N.m (26 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening door arrester on body side
Fastening nut securing door arrester to door		Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing door arrester

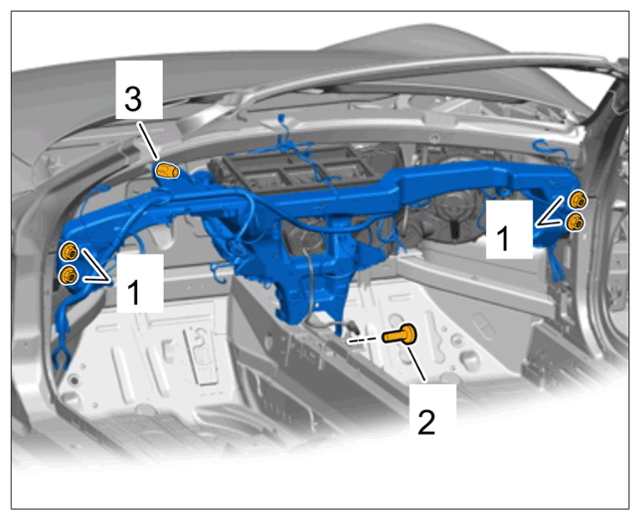

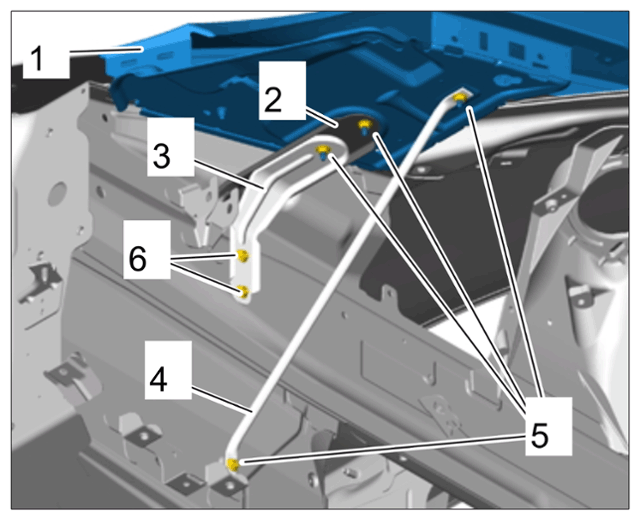

Fastening nut securing dashboard bracket to holder	Item 1	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
Fastening screw securing dashboard bracket to tunnel	Item 2	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
Fastening screw securing dashboard bracket to firewall	Item 3	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket

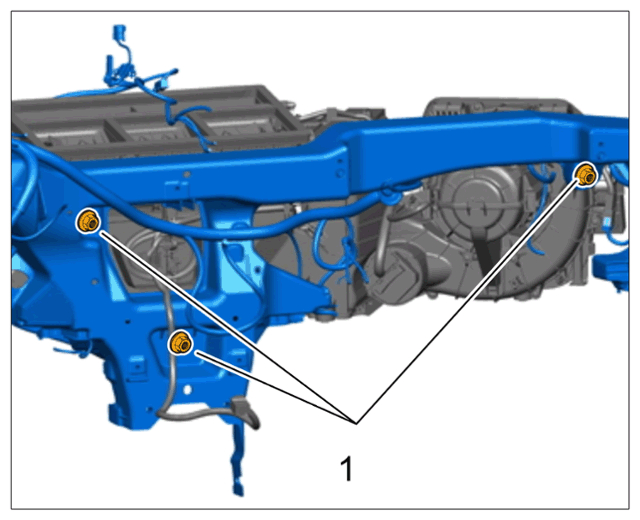

Heating/fresh-air unit to dashboard bracket	M6 fastening nut	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for heating/fresh-air unit
Fastening screws on lid lock	Item 2	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock

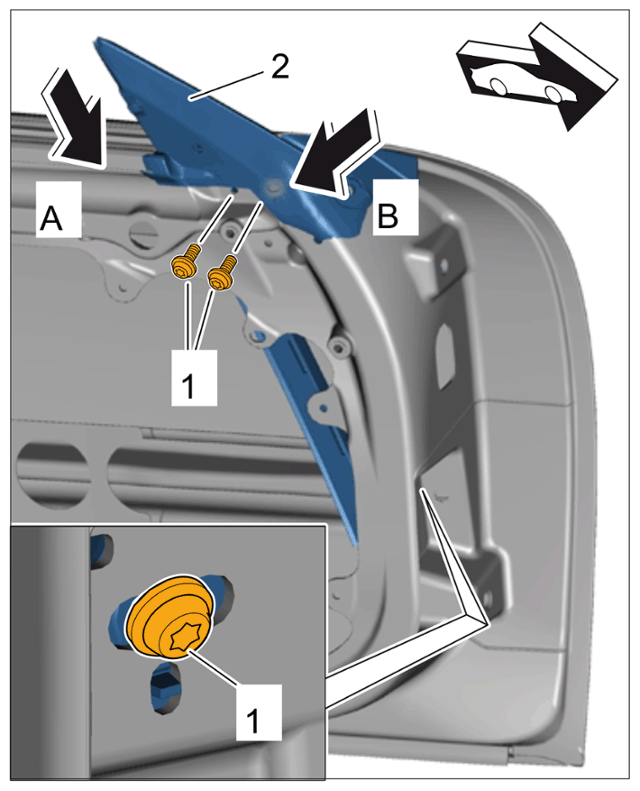

Fastening screw securing upper part of lid lock to front lid	Item 1	Contact force	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting lower part of lid lock
M6 fastening nuts securing front lid to lid hinge			9.7 N.m (7.2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front lid

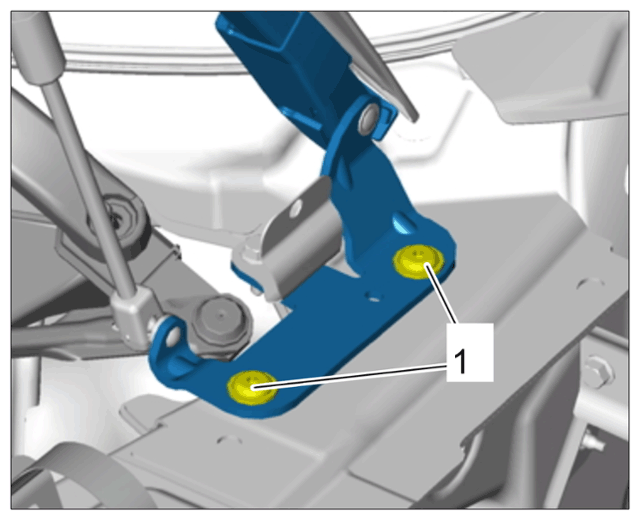

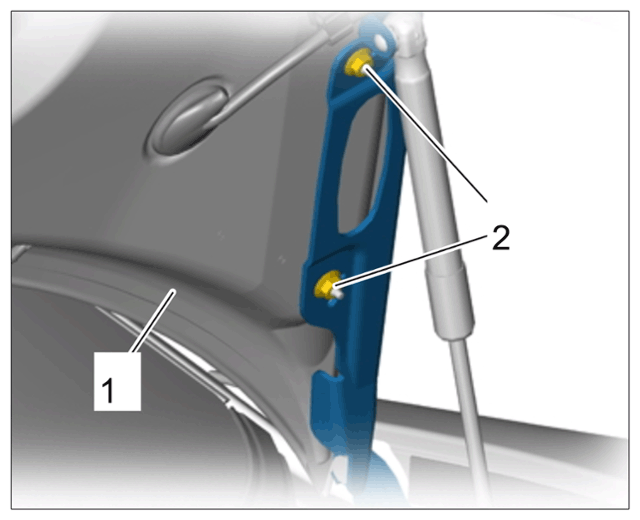

Fastening screws for lid hinge		Tightening torque	9.7 N.m (7.2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing front lid hinge

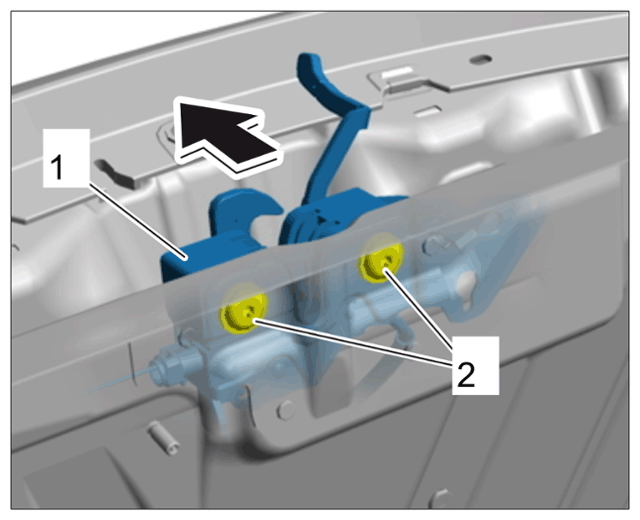

Fastening screws for lid lock		Tightening torque	9.7 N.m (7.2 ft.lb)	+/- 1 N.m (0.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock

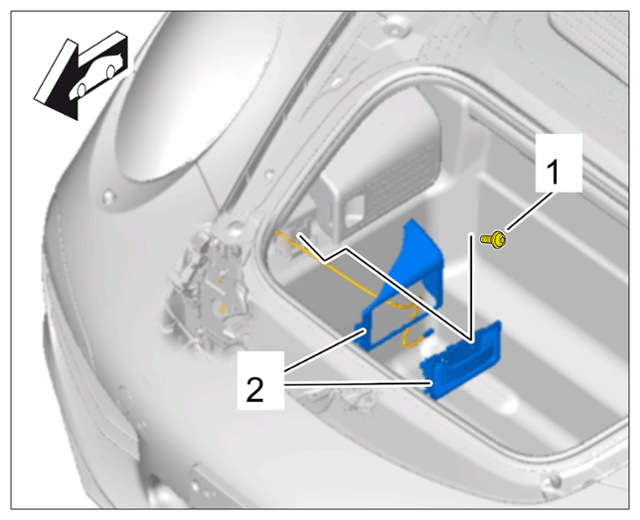

Fastening screw for emergency release	Item 1	Tightening torque	2.8 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing release handle

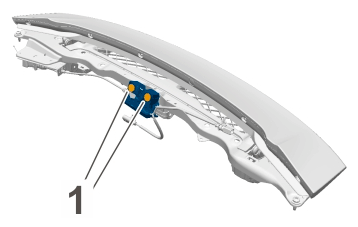

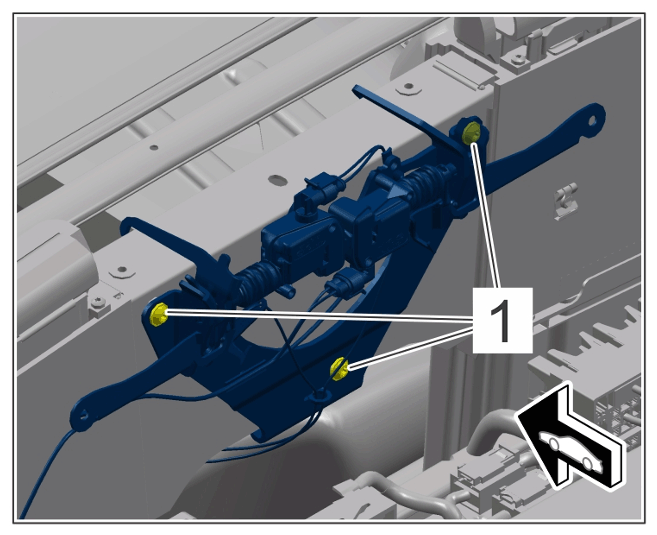

Fastening screw securing retaining bracket to rear spoiler	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor

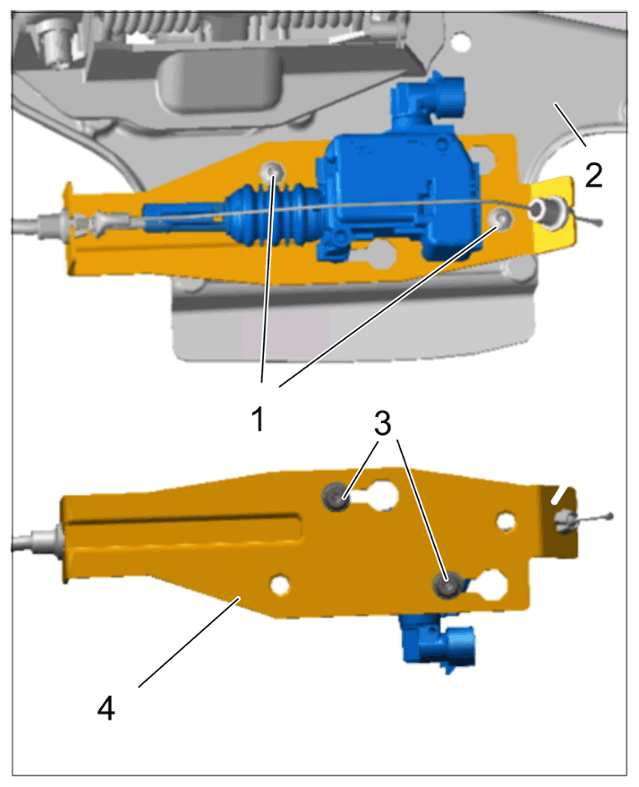

Fastening screw securing rear lid release motor to retaining bracket	Item 3	Tightening torque	2.5 N.m (2 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing holder for lid release motor

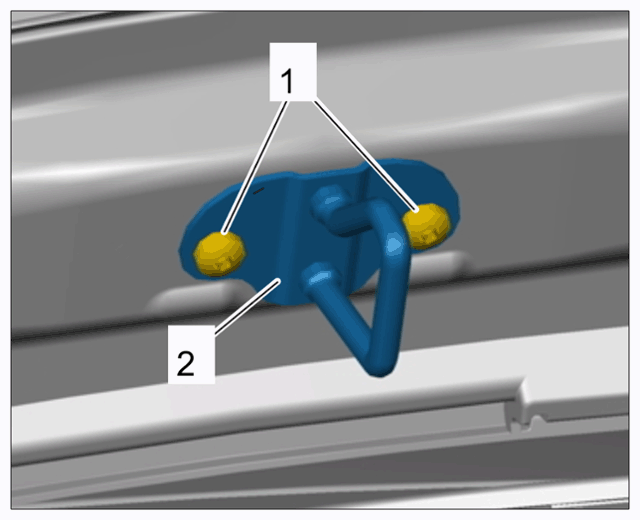

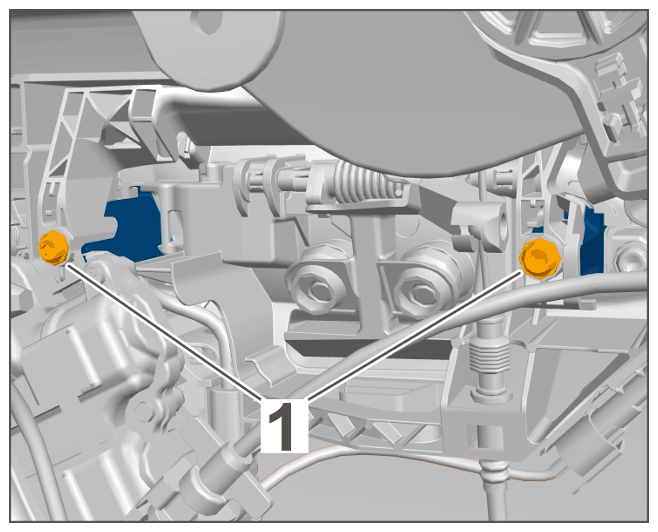

Fastening screws on lower part of rear lid lock	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of rear lid lock

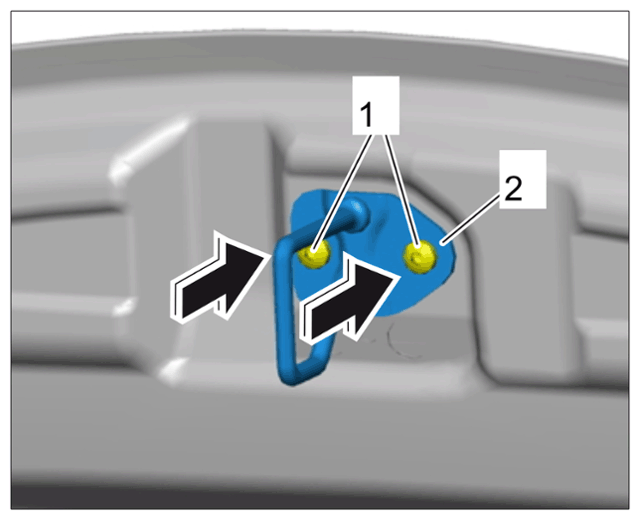

Fastening screws on upper part of lid lock	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing upper part of rear lid lock

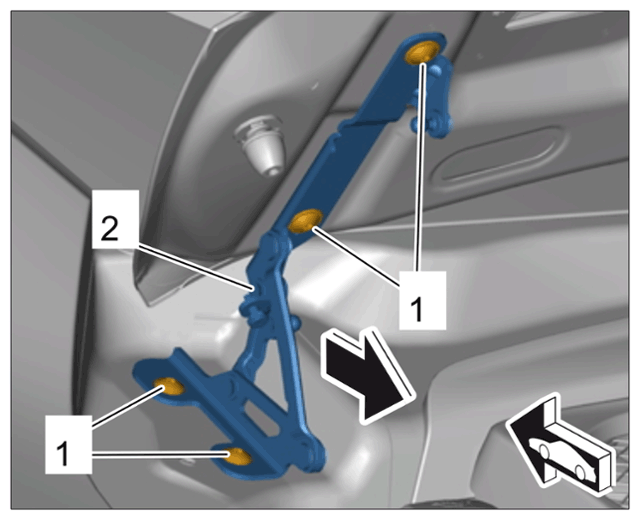

Fastening screws on rear lid hinge	Item 1	Tightening torque	10 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lid hinge
Lid adjusting element	Item 1	Adjustment value	2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid in Z direction

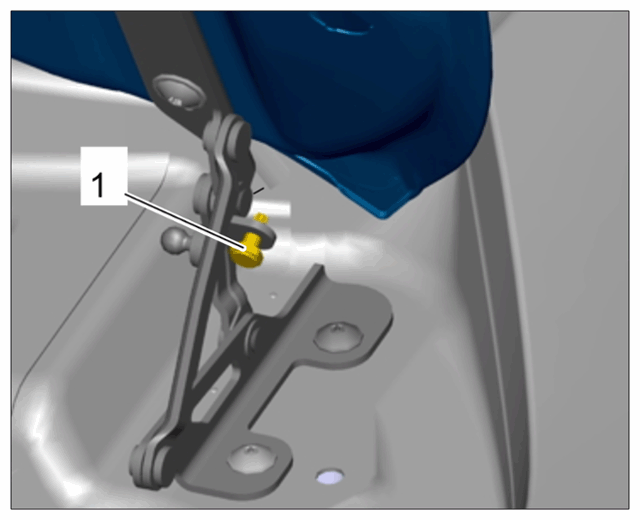

Screws on rear lid hinge (right)	Item 1	Tightening torque	6 N.m (4.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear lid hinge (right)
Screws on lower part of rear lid lock (front)	Item 1	Tightening torque	9.7 N.m (7.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Screws on top of rear lid	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

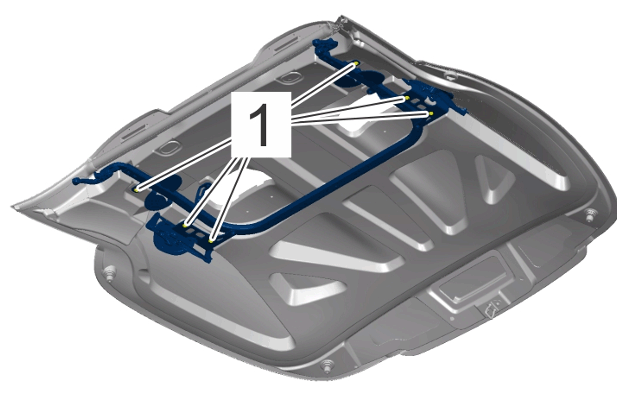

Screws securing rear lid to support	Item 1	Tightening torque	8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

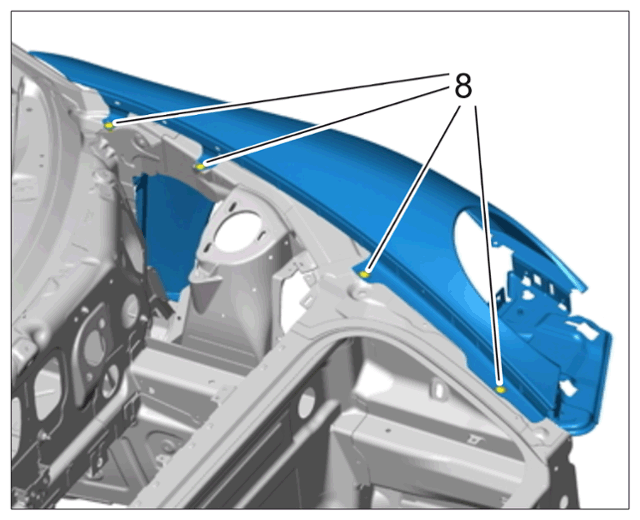

Fastening screws securing wing to body		Tightening torque	9.7 N.m (7.5 ft.lb)	+/- 0.9 N.m (0.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Releasing top of wing
Fastening nuts/screws securing bracket to body		Tightening torque	9.7 N.m (7.5 ft.lb)	+/- 0.9 N.m (0.5 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Releasing bottom of wing
