5X - Body - General - 911 CARRERA (991)
>>
WM, 5X00IN Technical Values
>>
Heating/Fresh-Air Unit
Heating/Fresh-Air Unit
Location
Description
Type
Basic value
Tolerance
Heating/fresh-air unit to dashboard bracket
M6 fastening nut
Tightening torque
8 N.m (6 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

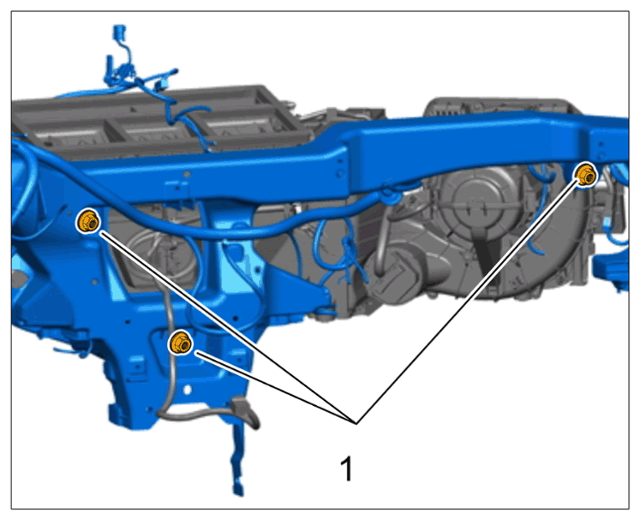

Fastening nuts for heating/fresh-air unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
